KGB40R-AHMRKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1405- )RHD

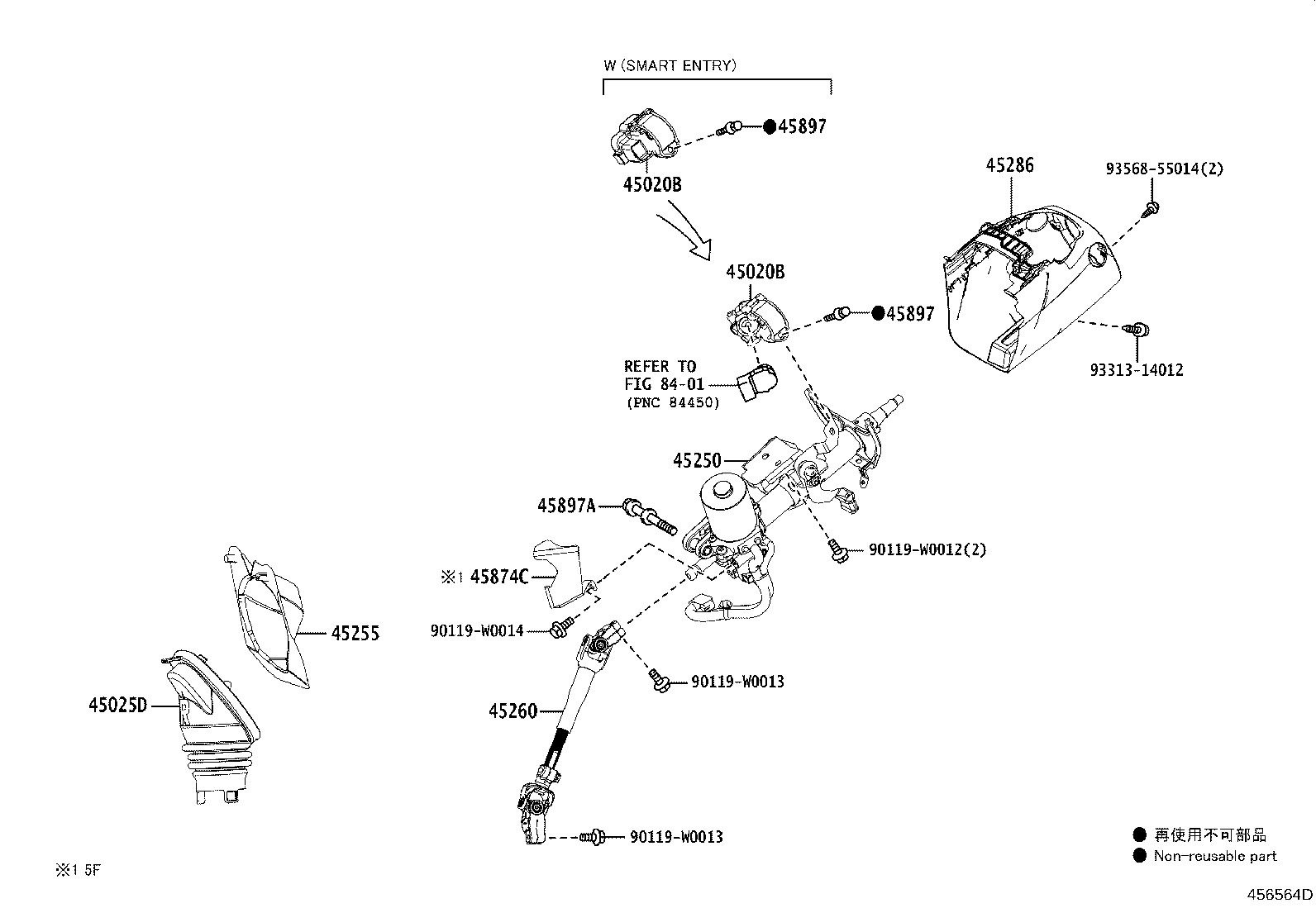

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45280-0H030 |
KGB40,PAB40..RHD |
1 | ||
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45280-0H030 |
KGB40,PAB40..RHD |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0H040 |
KGB40,PAB40..RHD |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-0H121 |
KGB40,PAB40..RHD |
1 | ||
| 45250-0H120 |
KGB40,PAB40..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-0H020 |
KGB40,PAB40..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-0H030 |
KGB40,PAB40 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45023-0H090B0 |
KGB40..LEDIN PSA MISTRAL HZD,TRIM2# |
1 | ||
| 45874C - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-0H020 |
KGB40,PAB40..RHD..5F |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12050 |
KGB40,PAB40..RHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12050 |
KGB40,PAB40..RHD |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 90119-W0012 | ||||
| 90119-W0013 | ||||
| 90119-W0014 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
