KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )KGB40

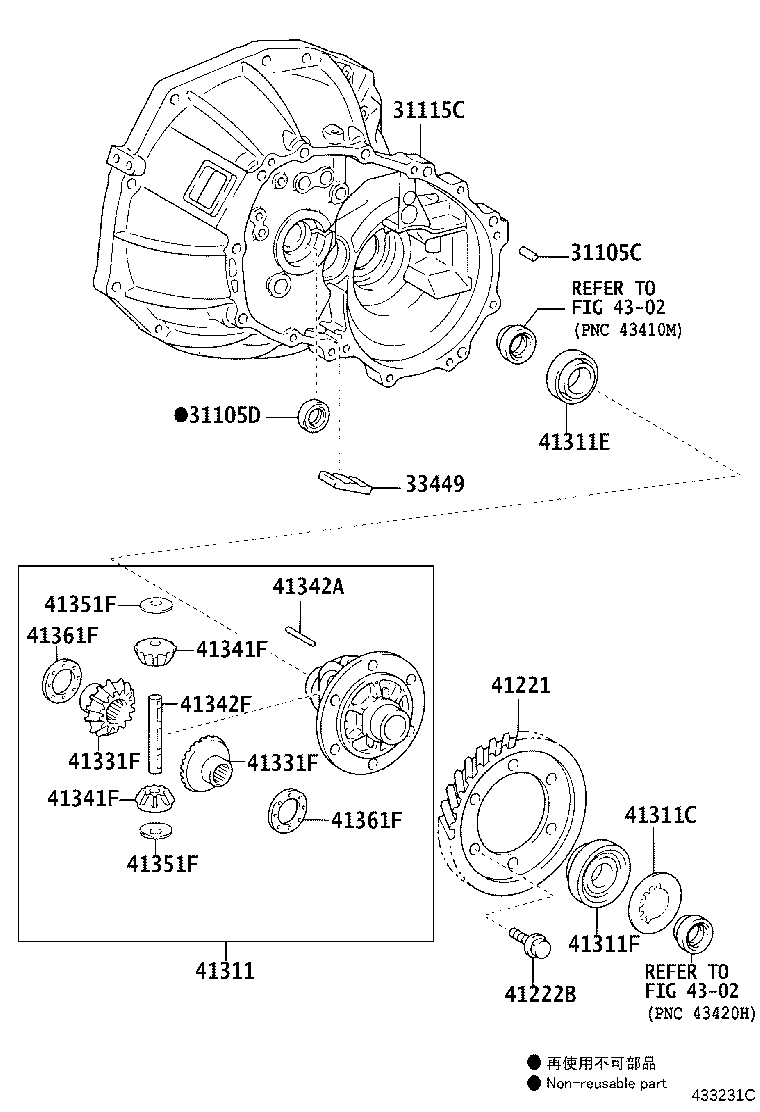

Click highlighted areas on diagram

diagram 31105C 31105D 31115C 33449 41221 41222B 41311 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302 4302
Part # Description Qty Price
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-W0001

KGB40

 2
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-W0001

KGB40

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-0H010

KGB40

 1
33449 - MAGNET, TRANSMISSION
33449-60010

KGB40

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-0H011

KGB40..5F

 1
41221-0H010

KGB40..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12313

KGB40

 6
41311 - CASE, FRONT DIFFERENTIAL
41311-0H902

KGB40

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41068

KGB40

T=1.25,MARK 04

 1
90564-41066

KGB40

T=1.15,MARK 02

 1
90564-41065

KGB40

T=1.10,MARK 01

 1
90564-41071

KGB40

T=1.40,MARK 07

 1
90564-41069

KGB40

T=1.30,MARK 05

 1
90564-41074

KGB40

T=1.55,MARK 10

 1
90564-41077

KGB40

T=1.70,MARK 13

 1
90564-41070

KGB40

T=1.35,MARK 06

 1
90564-41078

KGB40

T=1.75,MARK 14

 1
90564-41079

KGB40

T=1.80,MARK 15

 1
90564-41073

KGB40

T=1.50,MARK 09

 1
90564-41067

KGB40

T=1.20,MARK 03

 1
90564-41076

KGB40

T=1.65,MARK 12

 1
90564-41080

KGB40

T=1.85,MARK 16

 1
90564-41075

KGB40

T=1.60,MARK 11

 1
90564-41081

KGB40

T=1.90,MARK 17

 1
90564-41072

KGB40

T=1.45,MARK 08

 1
90564-41083

KGB40

T=2.00,MARK 19

 1
90564-41082

KGB40

T=1.95,MARK 18

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-W0007

KGB40

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90080-36166

KGB40

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D060

KGB40

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D060

KGB40

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D060

KGB40

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D060

KGB40

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-W0005

KGB40

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-10041

KGB40

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

KGB40

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

KGB40

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-70030

KGB40

T=0.60

 2
41361-70060

KGB40

T=0.75

 2
41361-70040

KGB40

T=0.65

 2
41361-70080

KGB40

T=0.85

 2
41361-70090

KGB40

T=0.90

 2
41361-70070

KGB40

T=0.80

 2
41361-70020

KGB40

T=0.55

 2
41361-70050

KGB40

T=0.70

 2
41361-70010

KGB40

T=0.50

 2
41361-70100

KGB40

T=0.95

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-70030

KGB40

T=0.60

 2
41361-70060

KGB40

T=0.75

 2
41361-70040

KGB40

T=0.65

 2
41361-70080

KGB40

T=0.85

 2
41361-70090

KGB40

T=0.90

 2
41361-70070

KGB40

T=0.80

 2
41361-70020

KGB40

T=0.55

 2
41361-70050

KGB40

T=0.70

 2
41361-70010

KGB40

T=0.50

 2
41361-70100

KGB40

T=0.95

 2
Linked diagrams
4302
