KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )KGB40..5F

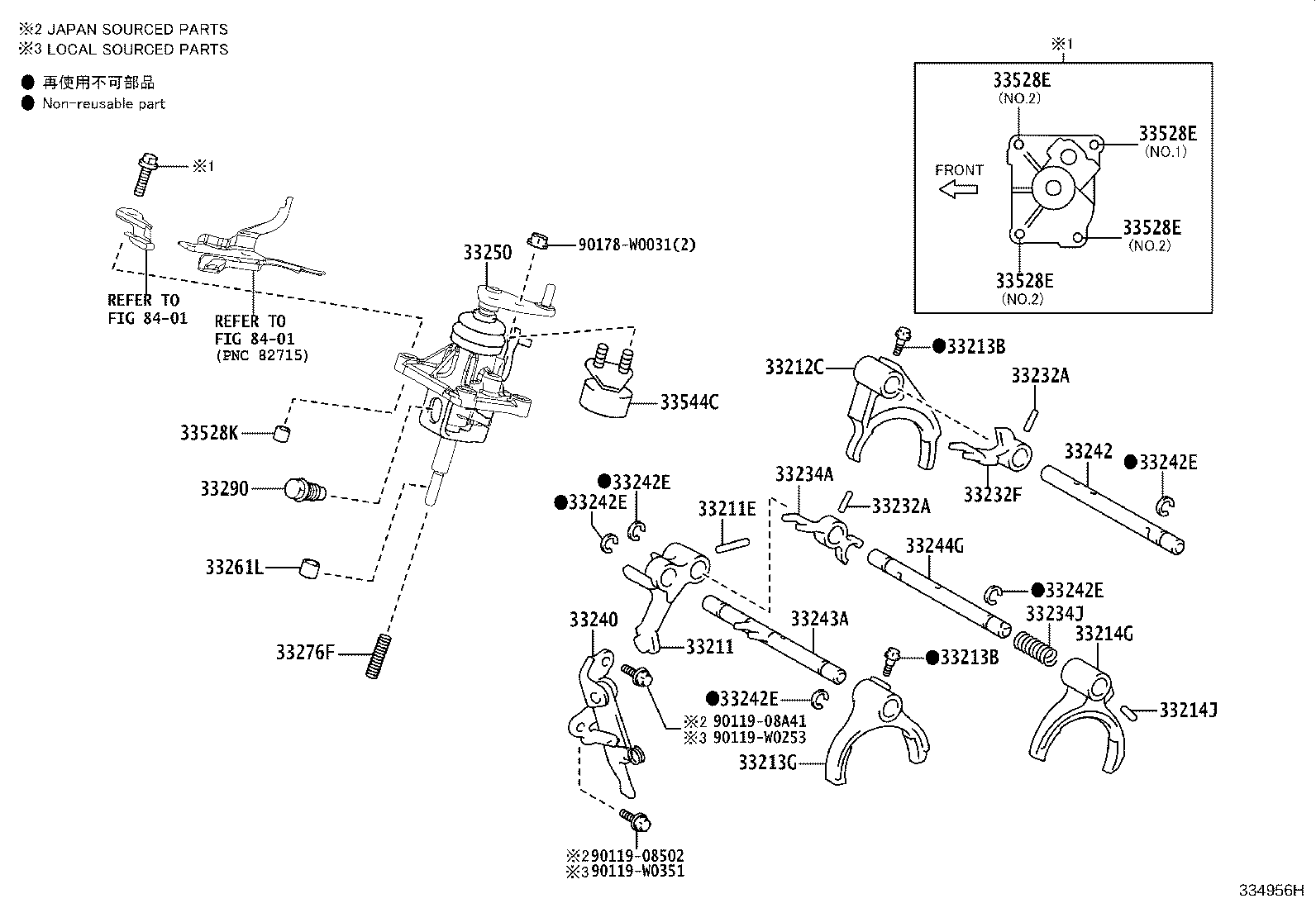

Click highlighted areas on diagram

C550,C551

diagram 33211 33211E 33212C 33213B 33213B 33213G 33214G 33214J 33232A 33232A 33232F 33234A 33234J 33240 33242 33242E 33242E 33242E 33242E 33242E 33243A 33244G 33250 33261L 33276F 33290 33528E 33528E 33528E 33528E 33528K 33544C 8401 8401 9011908502 9011908A41 90119W0253 90119W0351 90178W0031
Part # Description Qty Price
33211 - FORK, REVERSE SHIFT
33211-0H010

KGB40

 1
33211E - PIN, STRAIGHT(FOR REVERSE SHIFT FORK)
90250-06032

KGB40

 1
33212C - FORK, GEAR SHIFT, NO.1
33212-0H011

KGB40

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06115

KGB40

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06115

KGB40

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-0H011

KGB40

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-0H011

KGB40

 1
33214J - PIN, STRAIGHT(FOR 5TH SHIFT FORK)
90250-06031

KGB40

 1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-05001

KGB40

 2
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-05001

KGB40

 2
33232F - HEAD, GEAR SHIFT, NO.1
33232-52040

KGB40..5F

 1
33234A - HEAD, GEAR SHIFT, NO.3
33234-52010

KGB40..5F

 1
33234J - SPRING, COMPRESSION (FOR SHIFT RETURN)
90501-W0003

KGB40

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-52010

KGB40

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-0H010

KGB40

 1
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

KGB40

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

KGB40

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

KGB40

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

KGB40

 5
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

KGB40

 5
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-0H011

KGB40..5F

 1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-0H010

KGB40

 1
33250 - SHAFT ASSY, SHIFT & SELECT LEVER
33250-0H020

KGB40..5F

WITH(STOP & START SYSTEM)

 1
33250-0H012

KGB40..5F

 1
33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
90384-W0003

KGB40..5F

 1
33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
90501-W0002

KGB40..5F

 1
33290 - BALL ASSY, LOCK, NO.1
33290-0H030

KGB40..5F

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB40..5F

*8-1.25X35-30,(J),NO.1:SEE ILLUST

 1
90119-W0251

KGB40..5F

*8-1.25PX35-30,(L),NO.1:SEE ILLUST

 1
91611-60835

KGB40..5F

*8-1.25PX35-30,NO.2:REFER ILLUST.

 3
90119-08429

KGB40..5F

*8-1.25X35-30,NO.1:REFER ILLUST.

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB40..5F

*8-1.25X35-30,(J),NO.1:SEE ILLUST

 1
90119-W0251

KGB40..5F

*8-1.25PX35-30,(L),NO.1:SEE ILLUST

 1
91611-60835

KGB40..5F

*8-1.25PX35-30,NO.2:REFER ILLUST.

 3
90119-08429

KGB40..5F

*8-1.25X35-30,NO.1:REFER ILLUST.

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB40..5F

*8-1.25X35-30,(J),NO.1:SEE ILLUST

 1
90119-W0251

KGB40..5F

*8-1.25PX35-30,(L),NO.1:SEE ILLUST

 1
91611-60835

KGB40..5F

*8-1.25PX35-30,NO.2:REFER ILLUST.

 3
90119-08429

KGB40..5F

*8-1.25X35-30,NO.1:REFER ILLUST.

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-08429

KGB40..5F

*8-1.25X35-30,(J),NO.1:SEE ILLUST

 1
90119-W0251

KGB40..5F

*8-1.25PX35-30,(L),NO.1:SEE ILLUST

 1
91611-60835

KGB40..5F

*8-1.25PX35-30,NO.2:REFER ILLUST.

 3
90119-08429

KGB40..5F

*8-1.25X35-30,NO.1:REFER ILLUST.

 1
33528K - PIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
90253-11001

KGB40..5F

 2
33544C - DAMPER, SHIFT LEVER
33544-0H010

KGB40..5F

 1
Common parts
90119-08502
90119-08A41
90119-W0253
90119-W0351
90178-W0031
Linked diagrams
8401
