KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )KGB40..5F

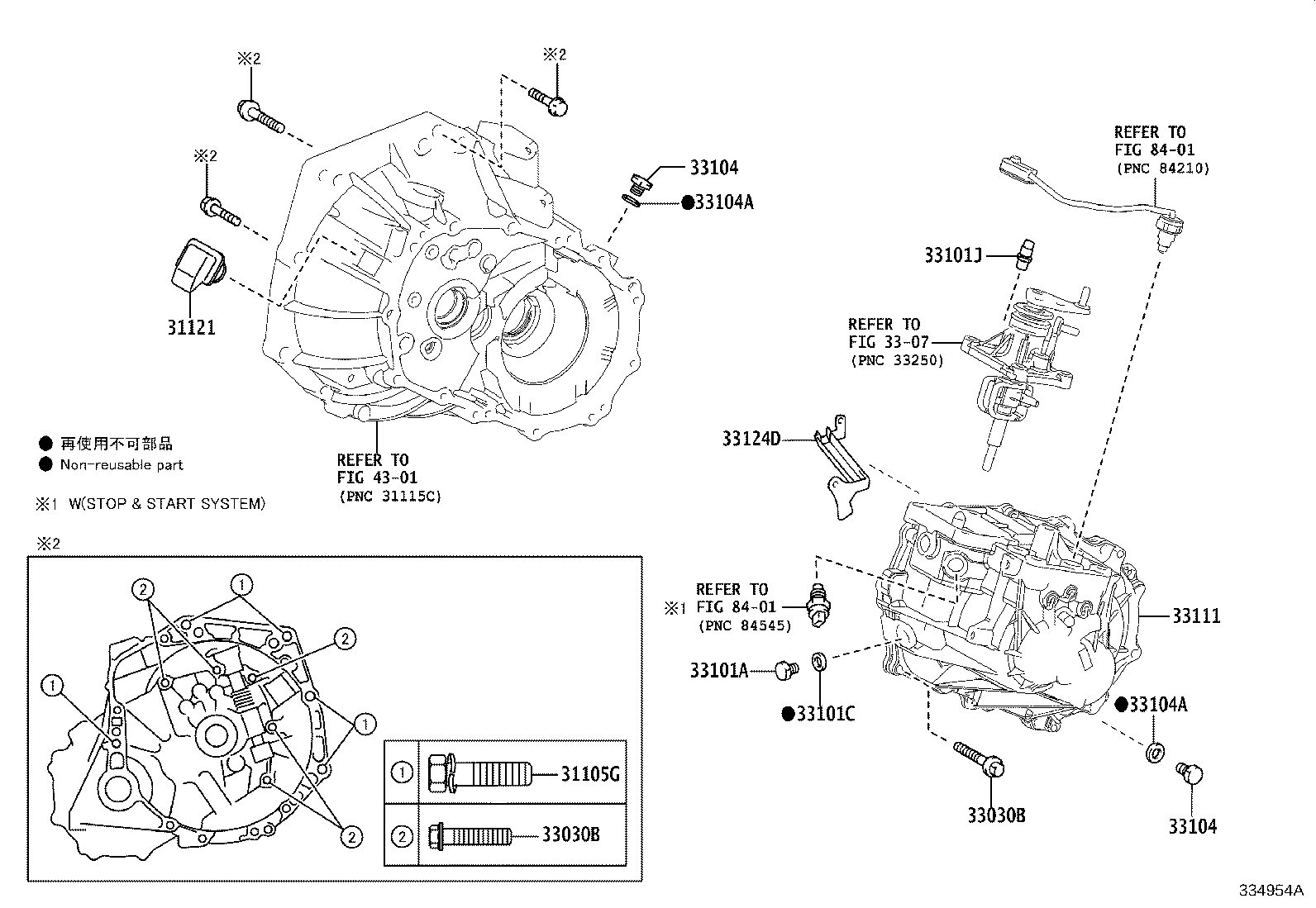

Click highlighted areas on diagram

C550,C551

diagram 31105G 31121 33030B 33030B 3307 33101A 33101C 33101J 33104 33104 33104A 33104A 33111 33124D 4301 8401 8401
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-W0097

KGB40

*12-1.25PX45-30

 5
31121 - COVER, CLUTCH HOUSING, NO.1
31121-0H011

KGB40

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08333

KGB40

*8-1.25PX35-30

 12
90105-W0225

KGB40

*8-1.25PX35-30,(L)

 12
90105-08333

KGB40

*8-1.25PX35-30,(J)

 12
90105-W0225

KGB40

*8-1.25PX35-30

 12
90105-W0226

KGB40

*8-1.25PX60-30,(L)

 1
90105-08261

KGB40

*8-1.25PX60-30

 1
90105-08261

KGB40

*8-1.25PX60-30,(J)

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08333

KGB40

*8-1.25PX35-30

 12
90105-W0225

KGB40

*8-1.25PX35-30,(L)

 12
90105-08333

KGB40

*8-1.25PX35-30,(J)

 12
90105-W0225

KGB40

*8-1.25PX35-30

 12
90105-W0226

KGB40

*8-1.25PX60-30,(L)

 1
90105-08261

KGB40

*8-1.25PX60-30

 1
90105-08261

KGB40

*8-1.25PX60-30,(J)

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

KGB40

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-W0001

KGB40

 1
33101J - PLUG, BREATHER
90930-03114

KGB40

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

KGB40

 2
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

KGB40

 2
33104A - GASKET, DRAIN PLUG(MTM)
90430-W0001

KGB40

 2
33104A - GASKET, DRAIN PLUG(MTM)
90430-W0001

KGB40

 2
33111 - CASE, MANUAL TRANSMISSION
33111-0H011

KGB40..5F

 1
33111-0H030

KGB40..5F

WITH(STOP & START SYSTEM)

 1
33111-0H031

KGB40..5F

WITH(STOP & START SYSTEM)

 1
33111-0H010

KGB40..5F

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-0H010

KGB40

 1
Linked diagrams
3307
4301
8401
