KGB40R-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1405- )RHD..5F

Click highlighted areas on diagram

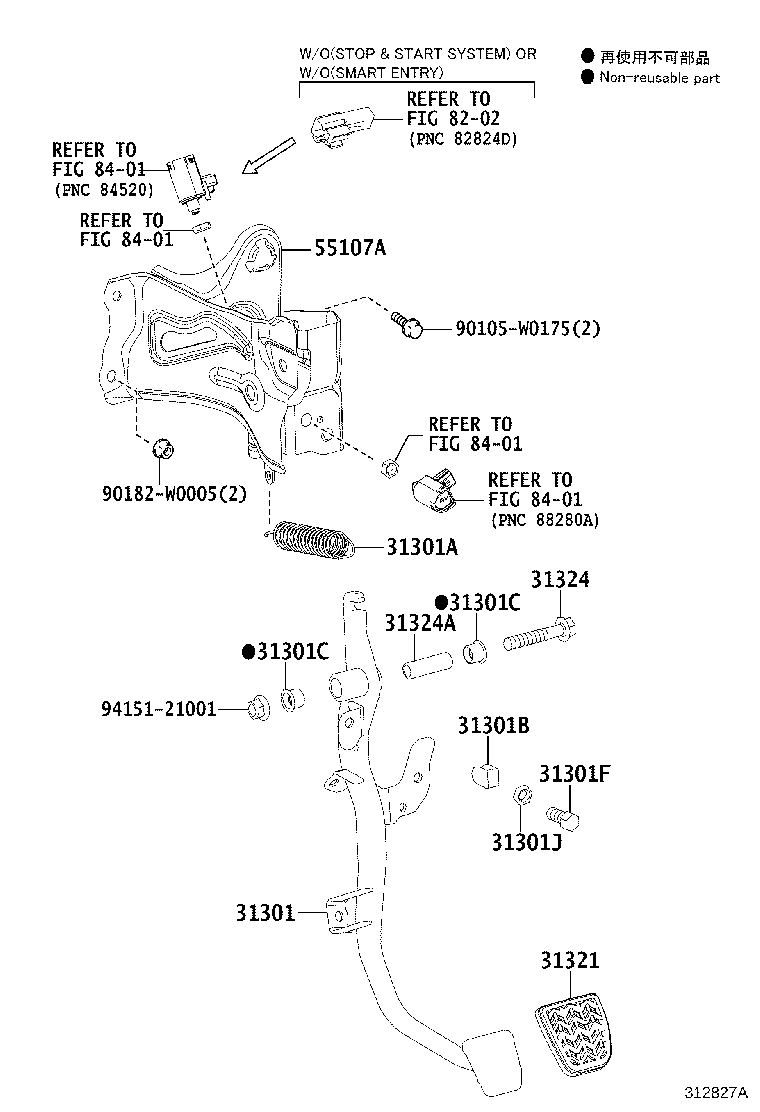

CLUTCH PEDAL

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 55107A 8202 8401 8401 8401 8401 90105W0175 90182W0005 9415121001
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0H080

KGB40..RHD..5F

WITH(STOP & START SYSTEM)

 1
31301-0H090

KGB40,PAB40..RHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
47146-0H010

KGB40,PAB40..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06063

KGB40,PAB40..RHD..5F

 1
47131-0H030

KGB40,PAB40..RHD..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KGB40,PAB40..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KGB40,PAB40..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91112-61025

KGB40,PAB40..RHD..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-W0002

KGB40,PAB40..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KGB40,PAB40..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90105-10444

KGB40,PAB40..RHD..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

KGB40,PAB40..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0H040

KGB40,PAB40..RHD..5F

 1
55107-0H030

KGB40..RHD..5F

WITH(STOP & START SYSTEM)

 1
Common parts
90105-W0175
90182-W0005
94151-21001
Linked diagrams
8202
8401

ILLUST NO. 2 OF 2(1405- )KGB40..5F

Click highlighted areas on diagram

CLUTCH RELEASE CABLE

diagram 3101 3101 31340 31340 31340B 31340B 31340E 31340E 31341 31341 31341 90119W0075 90182W0004 90182W0004 90182W0004
Part # Description Qty Price
31340 - CABLE ASSY, CLUTCH RELEASE
31340-0H050

KGB40..RHD..5F

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-0H050

KGB40..RHD..5F

 1
31340E - GROMMET(FOR CLUTCH RELEASE CABLE)
90385-W0001

KGB40,PAB40..5F

 1
31340E - GROMMET(FOR CLUTCH RELEASE CABLE)
90385-W0001

KGB40,PAB40..5F

 1
31341 - BRACKET, CLUTCH CABLE
31341-0H010

KGB40..5F

 1
31341 - BRACKET, CLUTCH CABLE
31341-0H010

KGB40..5F

 1
31341 - BRACKET, CLUTCH CABLE
31341-0H010

KGB40..5F

 1
Common parts
90119-W0075
90182-W0004
Linked diagrams
3101
