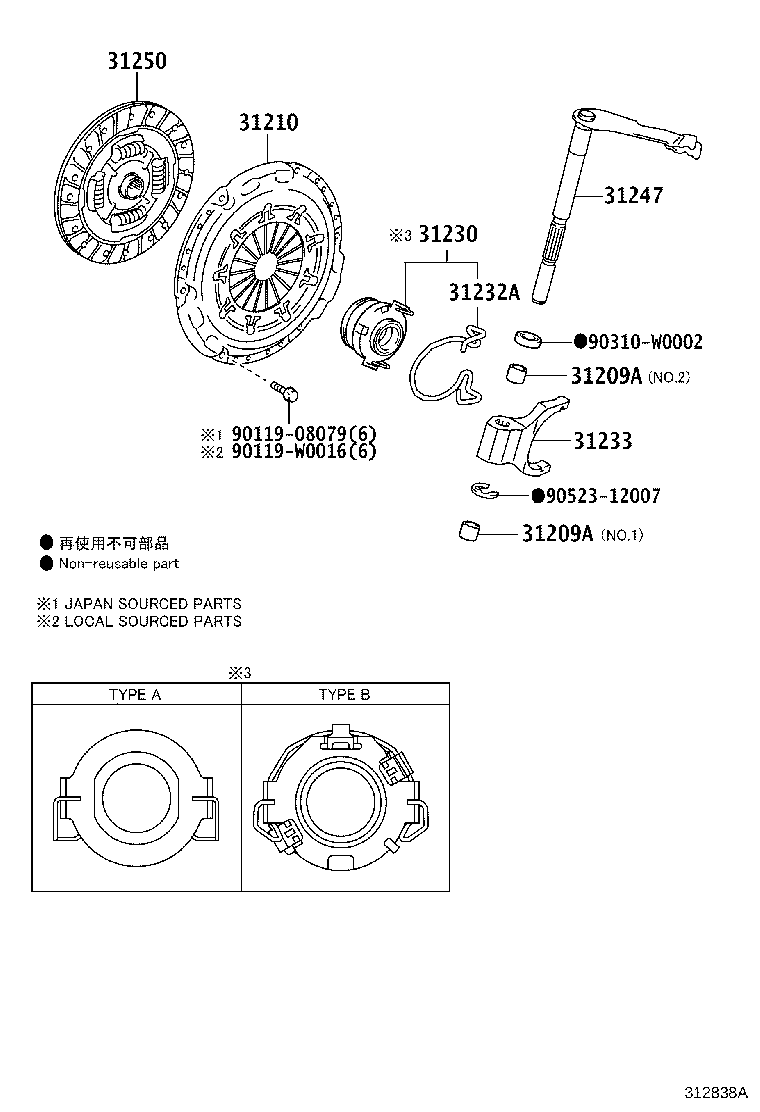

Toyota Aygo KGB40 CLUTCH & RELEASE FORK

Part #	Description	Period	Qty
31209A - BUSH, BIMETAL FORMED(FOR CLUTCH RELEASE LEVER SUPPORT)
90384-W0005	KGB40 NO.2:REFER ILLUST.	05/2014 - 05/2018	1
90384-W0004	KGB40 NO.1:REFER ILLUST.	05/2014 - 05/2018	1
31209A - BUSH, BIMETAL FORMED(FOR CLUTCH RELEASE LEVER SUPPORT)
90384-W0005	KGB40 NO.2:REFER ILLUST.	05/2014 - 05/2018	1
90384-W0004	KGB40 NO.1:REFER ILLUST.	05/2014 - 05/2018	1
31210 - COVER ASSY, CLUTCH
31210-0H050	KGB40..5F	05/2014 - 09/2017	1
31210-0H051	KGB40..5F	10/2017 - 05/2018	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-0H010	KGB40 TYPE A:REFER ILLUST.	05/2014 - 12/2016	1
31230-52040	KGB40 TYPE B:REFER ILLUST.	05/2014 - 12/2016	1
31230-0H020	KGB40..5F	12/2016 - 02/2017	1
31230-52041	KGB40	02/2017 - 05/2018	1
31232A - CLIP, RELEASE BEARING HUB
31232-52040	KGB40 PNC 31230=TYPE B	05/2014 - 12/2016	1
31232-52041	KGB40	12/2016 - 05/2018	1
31233 - FORK, CLUTCH RELEASE
31233-0H031	KGB40..5F	02/2017 - 05/2018	1
31233-0H030	KGB40..5F	05/2014 - 12/2016	1
31247 - LEVER, CLUTCH RELEASE FORK
31247-0H020	KGB40..5F	05/2014 - 05/2018	1
31250 - DISC ASSY, CLUTCH
31250-0H050	KGB40..5F	05/2014 - 09/2017	1
31250-0H051	KGB40..5F	10/2017 - 05/2018	1
Common parts
90119-08079
90119-W0016
90310-W0002
90523-12007

KGB40R-AHMRKW (2014)
