KGB40R-AHMRKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1405-1805)1KRFE

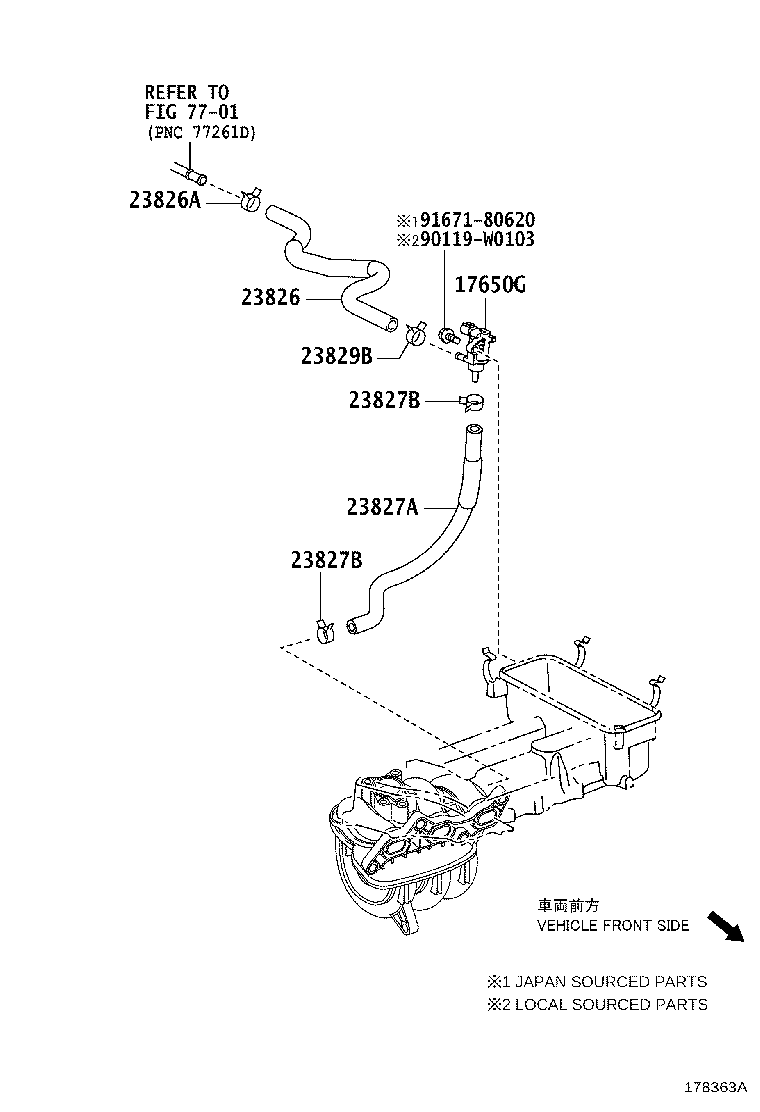

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12280 |
1KRFE..KGB40 (J),MARK=30L |
1 | ||
| 90910-WC003 |
1KRFE..KGB40 (L),MARK=30L |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0Q030 |
1KRFE..KGB40 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41000 |
1KRFE..KGB40 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-40050 |
1KRFE..KGB40 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96133-41301 |
1KRFE..KGB40 |
2 | ||
| 96132-51300 |
1KRFE..KGB40 |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96133-41301 |
1KRFE..KGB40 |
2 | ||
| 96132-51300 |
1KRFE..KGB40 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-11003 |
1KRFE..KGB40 |
1 | ||
| Common parts | ||||
| 90119-W0103 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 7701 | ||||
