KGB40R-AHMRKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1405-1805)1KRFE

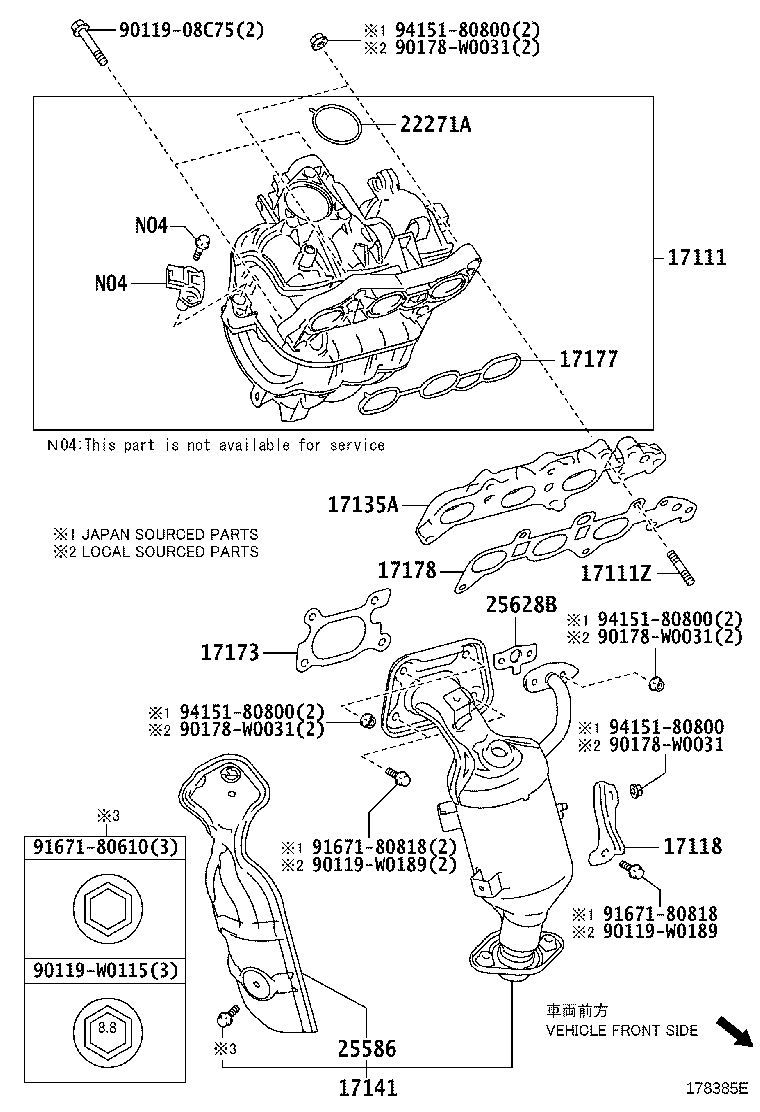

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-0Q040 |
1KRFE..KGB40 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80845 |
1KRFE..KGB40 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0Q020 |
1KRFE..KGB40 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-40030 |
1KRFE..KGB40 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-0Q090 |
1KRFE..KGB40 *114=TOYOTA/0Q090/Y |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-40050 |
1KRFE..KGB40 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0Q030 |
1KRFE..KGB40 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-0Q020 |
1KRFE..KGB40 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-0Q010 |
1KRFE..KGB40 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-0Q040 |
1KRFE..KGB40 |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-40020 |
1KRFE..KGB40 (J) |
1 | ||
| 25628-0Q010 |
1KRFE..KGB40 (L) |
1 | ||
| Common parts | ||||
| 90119-08C75 | ||||
| 90119-W0115 | ||||
| 90119-W0189 | ||||
| 90178-W0031 | ||||
| 91671-80610 | ||||
| 91671-80818 | ||||
| 94151-80800 | ||||
