KGB40R-AHMRKW (2014)
Toyota Aygo

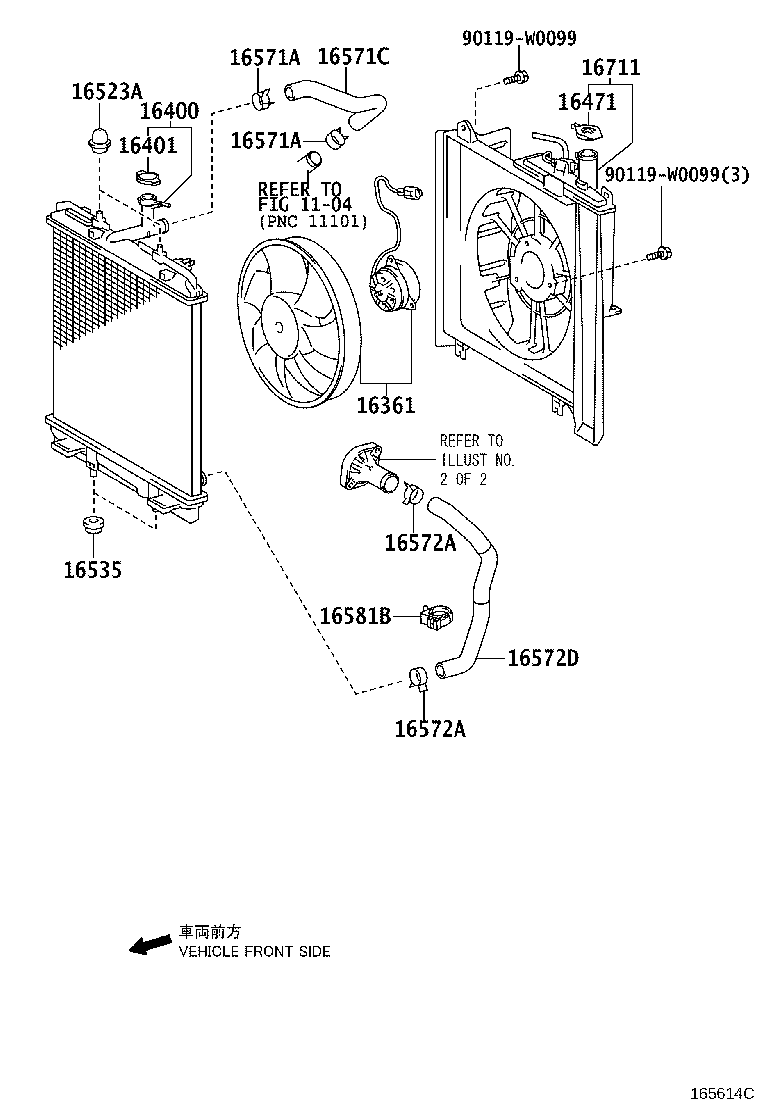

ILLUST NO. 1 OF 2(1405-1806)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16362-8EA01 |
1KRFE..KGB40..LEDIN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16362-8EA04 |
1KRFE..KGB40 TROPIC SPEC |
1 | ||
| 16362-8EA04 |
1KRFE..KGB40..LEDIN TROPIC SPEC&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16362-8EA00 |
1KRFE..KGB40..LEDIN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Q080 |
1KRFE..KGB40..LEDIN TROPIC SPEC&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16400-0Q030 |
1KRFE..KGB40..LEDIN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16400-0Q080 |
1KRFE..KGB40 TROPIC SPEC |
1 | ||
| 16400-0Q010 |
1KRFE..KGB40..LEDIN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31520 |
1KRFE..KGB40 TYPE A:REFER ILLUST. |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-0Q010 |
1KRFE..KGB40..LEDIN FRONT AIR CONDITIONER-MANUAL |
2 | ||
| 16471-0Q010 |
1KRFE..KGB40..LEDIN |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Q010 |
1KRFE..KGB40 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-W0001 |
1KRFE..KGB40 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-W0015 |
1KRFE..KGB40 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-W0015 |
1KRFE..KGB40 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Q030 |
1KRFE..KGB40 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-W0015 |
1KRFE..KGB40 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-W0015 |
1KRFE..KGB40 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Q050 |
1KRFE..KGB40 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 90469-35001 |
1KRFE..KGB40 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Q011 |
1KRFE..KGB40 |
1 | ||
| 16711-0Q080 |
1KRFE..KGB40 TROPIC SPEC |
1 | ||
| 16711-0Q080 |
1KRFE..KGB40..LEDIN TROPIC SPEC&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| Common parts | ||||
| 90119-W0099 | ||||
| Linked diagrams | ||||
| 1104 | ||||

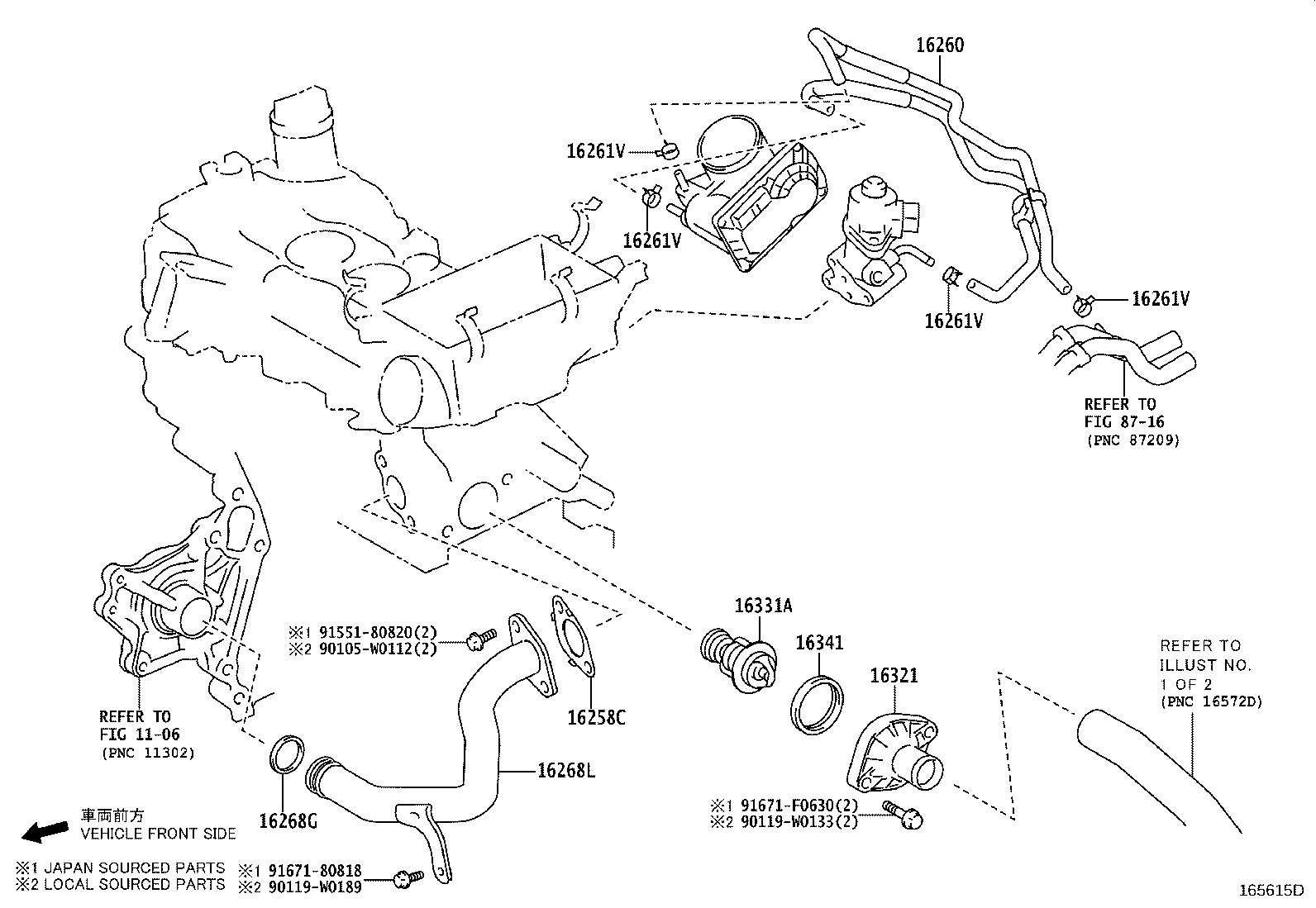

ILLUST NO. 2 OF 2(1405-1805)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40021 |
1KRFE..KGB40 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-0Q070 |
1KRFE..KGB40 |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KGB40 |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KGB40 |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KGB40 |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KGB40 |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0Q010 |
1KRFE..KGB40 |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-0Q020 |
1KRFE..KGB40..5D..5F;1KRFE..KGB40..LHD..3D..5F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 16268-0Q010 |
1KRFE..KGB40 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0Q010 |
1KRFE..KGB40 (L) |
1 | ||
| 16321-40010 |
1KRFE..KGB40 (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03153 |
1KRFE..KGB40 |
1 | ||
| 90916-03150 |
1KRFE..KGB40 *WAX 80-93 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KGB40 |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90119-W0133 | ||||
| 90119-W0189 | ||||
| 91551-80820 | ||||
| 91671-80818 | ||||
| 91671-F0630 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
