KGB40R-AHMRKW (2014)
Toyota Aygo
(1405- )1KRFE

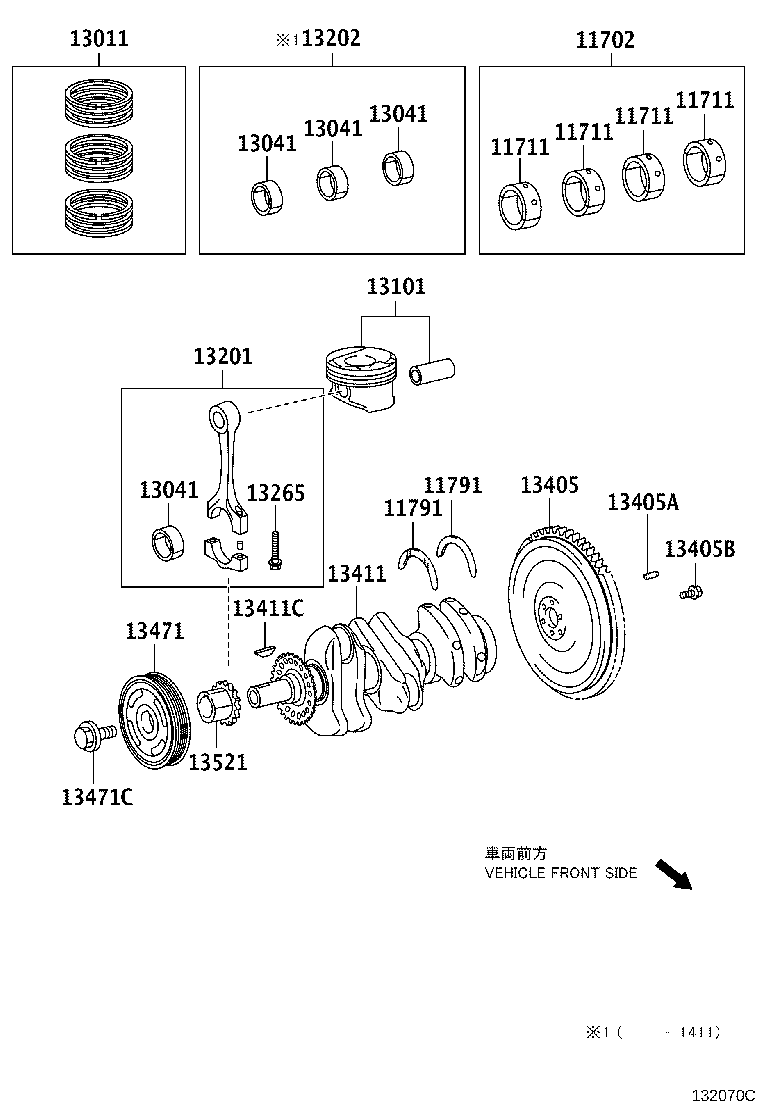

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-40040 |
1KRFE..KGB40 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGB40 MARK3 |
4 | ||
| 11701-4004002 |
1KRFE..KGB40 MARK2 |
4 | ||
| 11701-4004004 |
1KRFE..KGB40 MARK4 |
4 | ||
| 11701-4004005 |
1KRFE..KGB40 MARK5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGB40 MARK3 |
4 | ||
| 11701-4004002 |
1KRFE..KGB40 MARK2 |
4 | ||
| 11701-4004004 |
1KRFE..KGB40 MARK4 |
4 | ||
| 11701-4004005 |
1KRFE..KGB40 MARK5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGB40 MARK3 |
4 | ||
| 11701-4004002 |
1KRFE..KGB40 MARK2 |
4 | ||
| 11701-4004004 |
1KRFE..KGB40 MARK4 |
4 | ||
| 11701-4004005 |
1KRFE..KGB40 MARK5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-4004003 |
1KRFE..KGB40 MARK3 |
4 | ||
| 11701-4004002 |
1KRFE..KGB40 MARK2 |
4 | ||
| 11701-4004004 |
1KRFE..KGB40 MARK4 |
4 | ||
| 11701-4004005 |
1KRFE..KGB40 MARK5 |
4 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0Q010 |
1KRFE..KGB40 STD |
2 | ||
| 11792-40020 |
1KRFE..KGB40 O/S 0.125 |
2 | ||
| 11793-40020 |
1KRFE..KGB40 O/S 0.25 |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0Q010 |
1KRFE..KGB40 STD |
2 | ||
| 11792-40020 |
1KRFE..KGB40 O/S 0.125 |
2 | ||
| 11793-40020 |
1KRFE..KGB40 O/S 0.25 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0Q041 |
1KRFE..KGB40 STD |
1 | ||
| 13011-0Q050 |
1KRFE..KGB40..5D..5F;1KRFE..KGB40..LHD..3D..5F STD,EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003102 |
1KRFE..KGB40 MARK2,(J) |
3 | ||
| 13041-0Q01003 |
1KRFE..KGB40 MARK3,(L) |
3 | ||
| 13041-0Q01002 |
1KRFE..KGB40 MARK2,(L) |
3 | ||
| 13041-4003103 |
1KRFE..KGB40 MARK3,(J) |
3 | ||
| 13041-4003101 |
1KRFE..KGB40 MARK1,(J) |
3 | ||
| 13041-0Q01001 |
1KRFE..KGB40 MARK1,(L) |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003102 |
1KRFE..KGB40 MARK2,(J) |
3 | ||
| 13041-0Q01003 |
1KRFE..KGB40 MARK3,(L) |
3 | ||
| 13041-0Q01002 |
1KRFE..KGB40 MARK2,(L) |
3 | ||
| 13041-4003103 |
1KRFE..KGB40 MARK3,(J) |
3 | ||
| 13041-4003101 |
1KRFE..KGB40 MARK1,(J) |
3 | ||
| 13041-0Q01001 |
1KRFE..KGB40 MARK1,(L) |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003102 |
1KRFE..KGB40 MARK2,(J) |
3 | ||
| 13041-0Q01003 |
1KRFE..KGB40 MARK3,(L) |
3 | ||
| 13041-0Q01002 |
1KRFE..KGB40 MARK2,(L) |
3 | ||
| 13041-4003103 |
1KRFE..KGB40 MARK3,(J) |
3 | ||
| 13041-4003101 |
1KRFE..KGB40 MARK1,(J) |
3 | ||
| 13041-0Q01001 |
1KRFE..KGB40 MARK1,(L) |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003102 |
1KRFE..KGB40 MARK2,(J) |
3 | ||
| 13041-0Q01003 |
1KRFE..KGB40 MARK3,(L) |
3 | ||
| 13041-0Q01002 |
1KRFE..KGB40 MARK2,(L) |
3 | ||
| 13041-4003103 |
1KRFE..KGB40 MARK3,(J) |
3 | ||
| 13041-4003101 |
1KRFE..KGB40 MARK1,(J) |
3 | ||
| 13041-0Q01001 |
1KRFE..KGB40 MARK1,(L) |
3 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-40040 |
1KRFE..KGB40 STD |
3 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09296 |
1KRFE..KGB40 |
3 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-40031 |
1KRFE..KGB40 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1KRFE..KGB40 |
6 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0Q021 |
1KRFE..KGB40 |
1 | ||
| 13405-0Q020 |
1KRFE..KGB40 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1KRFE..KGB40 L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10463 |
1KRFE..KGB40 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0Q050 |
1KRFE..KGB40..5F WITH(STOP & START SYSTEM) |
1 | ||
| 13401-0Q060 |
1KRFE..KGB40 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90280-04001 |
1KRFE..KGB40 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-0Q012 |
1KRFE..KGB40 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
1KRFE..KGB40 |
1 | ||
| 90119-14175 |
1KRFE..KGB40 |
1 | ||
| 90119-14106 |
1KRFE..KGB40 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-40020 |
1KRFE..KGB40 |
1 | ||
| 13521-0Q010 |
1KRFE..KGB40 |
1 | ||
