KGB40R-AHGGKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1KRFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1405- )RHD

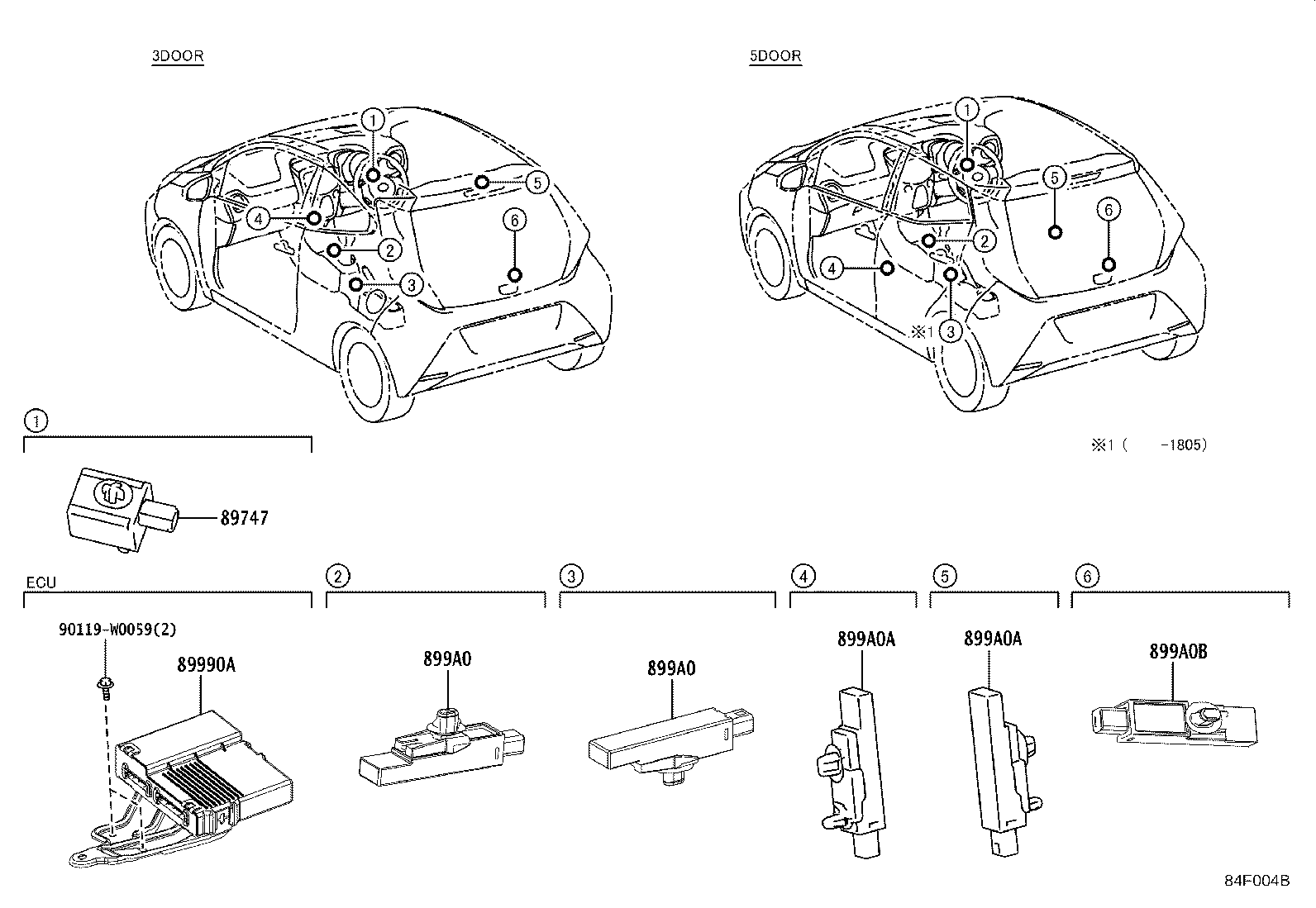

Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-05010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-0H040 |
KGB40,PAB40..RHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89990-0H080 |
KGB40,PAB40..RHD..5D..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-0H030 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
2 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-0H030 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
2 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-0H010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
2 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-0H010 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
2 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-0F040 |
KGB40,PAB40..LV1 WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| Common parts | ||||
| 90119-W0059 | ||||
(1405- )

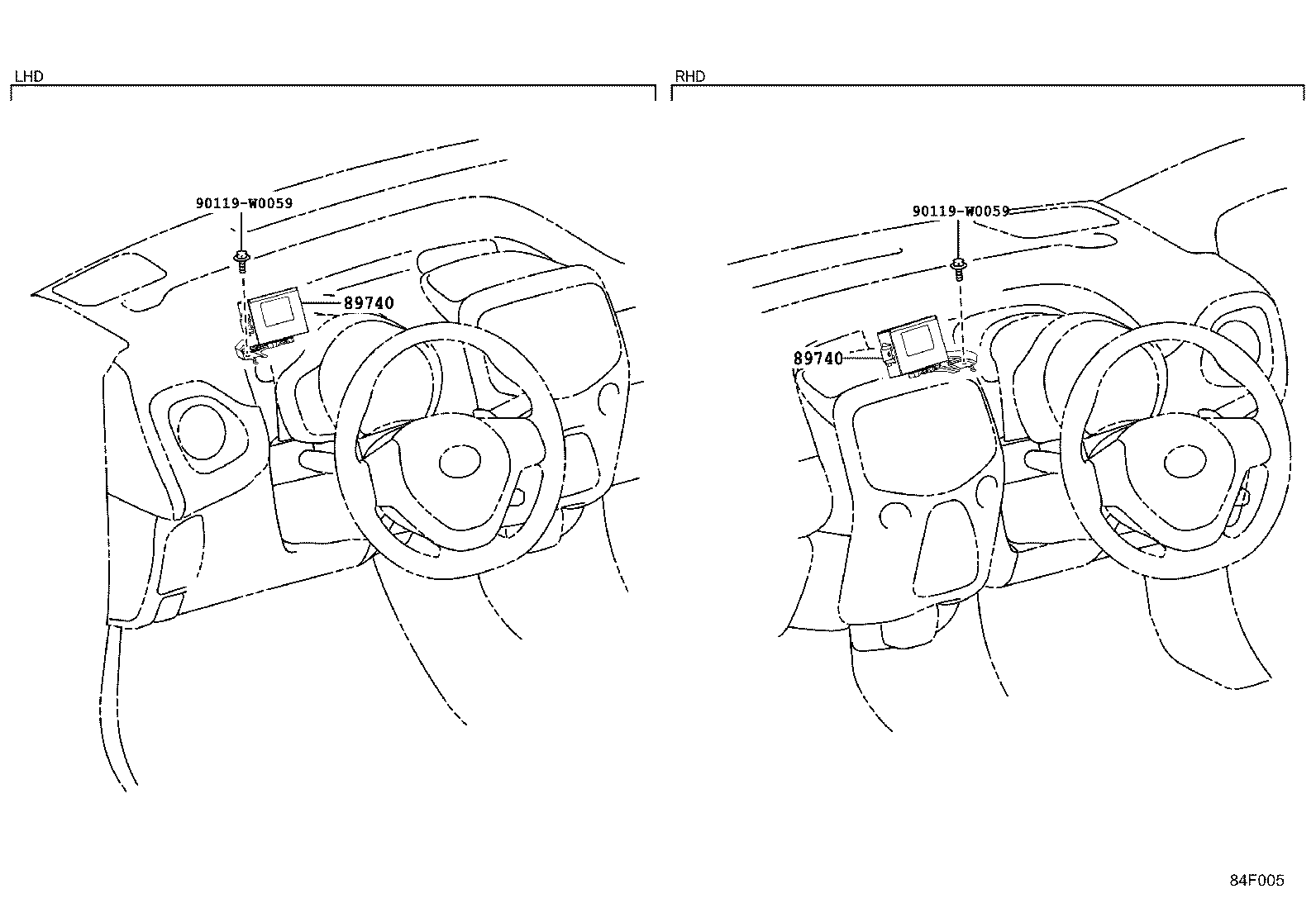

Click highlighted areas on diagram
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740 - COMPUTER ASSY, DOOR CONTROL W/RECEIVER | ||||
| 89740-0H040 |
KGB40,PAB40..RHD |
1 | ||
| 89740 - COMPUTER ASSY, DOOR CONTROL W/RECEIVER | ||||
| 89740-0H040 |
KGB40,PAB40..RHD |
1 | ||
| Common parts | ||||
| 90119-W0059 | ||||
