KGB40R-AHGGKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1KRFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1405-1805)

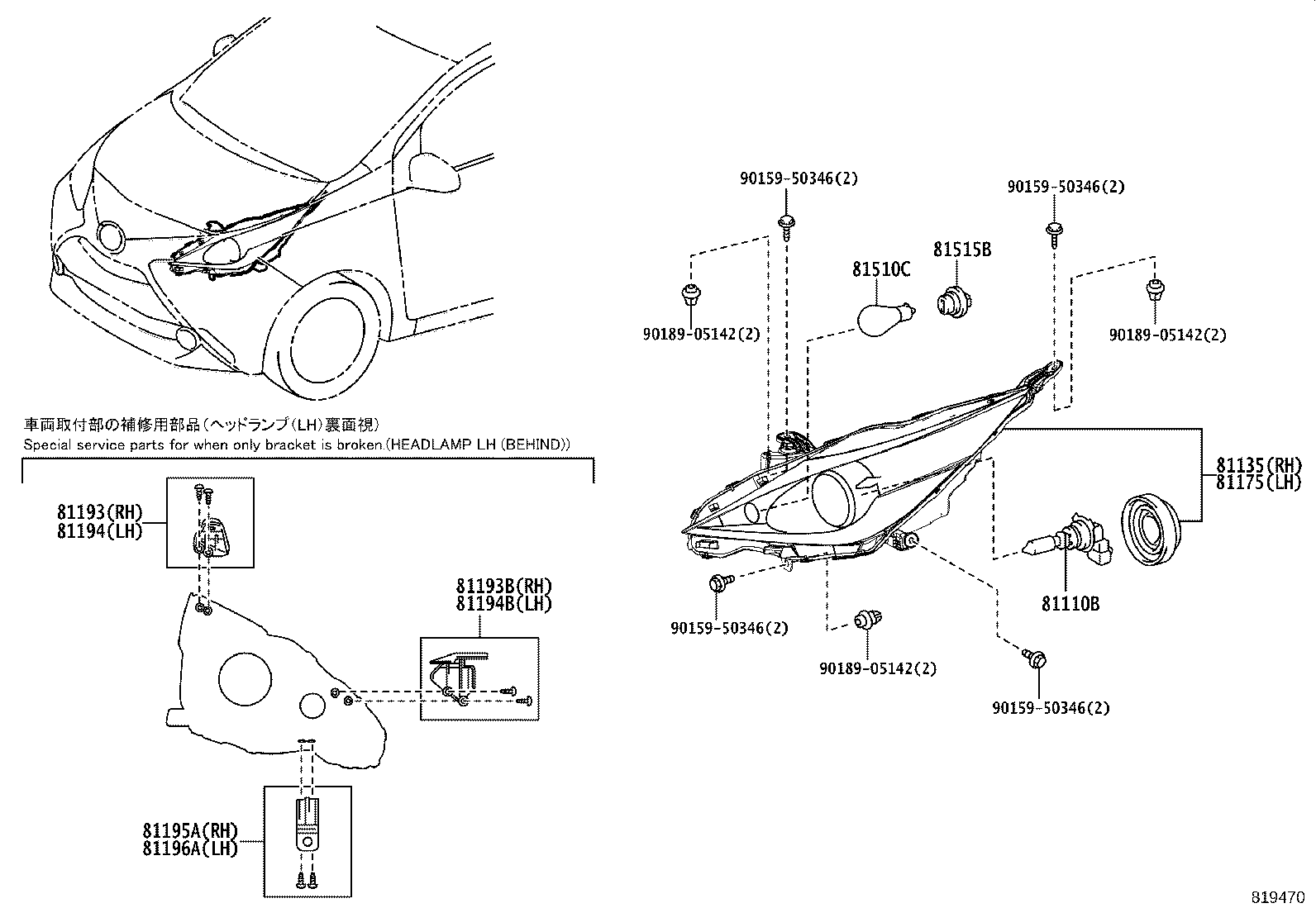

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13062 |
KGB40,PAB40 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0H140 |
KGB40,PAB40..RHD |
1 | ||
| 81130-0H141 |
KGB40,PAB40..RHD |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0H140 |
KGB40,PAB40..RHD |
1 | ||
| 81170-0H141 |
KGB40,PAB40..RHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-0H040 |
KGB40,PAB40 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-0H050 |
KGB40,PAB40 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-0H040 |
KGB40,PAB40 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-0H050 |
KGB40,PAB40 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-0H060 |
KGB40,PAB40 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-0H060 |
KGB40,PAB40 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
KGB40,PAB40 12V 21W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90069-81103 |
KGB40,PAB40 |
2 | ||
| Common parts | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
