KGB40R-AHGGKW (2014)
Toyota Aygo

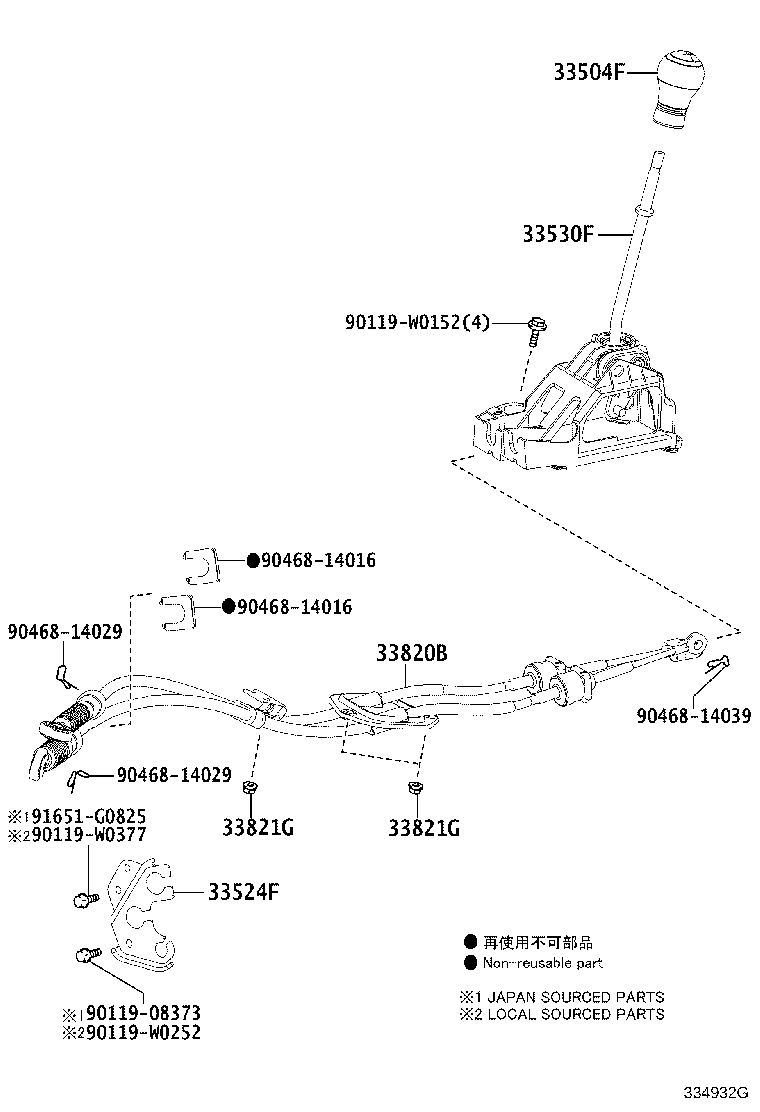

(1405- )KGB40..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0H060B1 |
KGB40..5FS COLOR SERIES/ROOF COLOR,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 2 + DOP READY,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H050B3 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS LEVEL2(COMFORT),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR SERIES&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 LEVEL2(COMFORT)&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 1 + DOP READY&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 2,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR SERIES/ROOF COLOR&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H050B3 |
KGB40,PAB40..5F..LV1 SHIFT LEVER & KNOB-LEATHER,DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 1,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 2&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS LEVEL2(SPORTS),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR SERIES,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H040B7 |
KGB40..5FS COLOR SERIES,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H040B7 |
KGB40..5FS COLOR SERIES/ROOF COLOR,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H050B8 |
KGB40,PAB40..5F..LV1 COLOR SERIES&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H040B3 |
KGB40..5FS DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 2 + DOP READY&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H050B8 |
KGB40,PAB40..5F..LV1 COLOR SERIES/ROOF COLOR&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS SHIFT LEVER & KNOB-LEATHER(CHROME),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 1 + DOP READY,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 LEVEL2(SPORTS)&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H020B0 |
KGB40,PAB40..5F..LV1 DARK GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 SHIFT LEVER & KNOB-LEATHER(CHROME),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 1&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-0H010 |
KGB40..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0H030 |
KGB40..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0H010 |
KGB40..5F |
1 | ||
| 33820-0H011 |
KGB40..5F |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90178-W0019 |
KGB40..5F |
3 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90178-W0019 |
KGB40..5F |
3 | ||
| Common parts | ||||
| 90119-08373 | ||||
| 90119-W0152 | ||||
| 90119-W0252 | ||||
| 90119-W0377 | ||||
| 90468-14016 | ||||
| 90468-14029 | ||||
| 90468-14039 | ||||
| 91651-G0825 | ||||

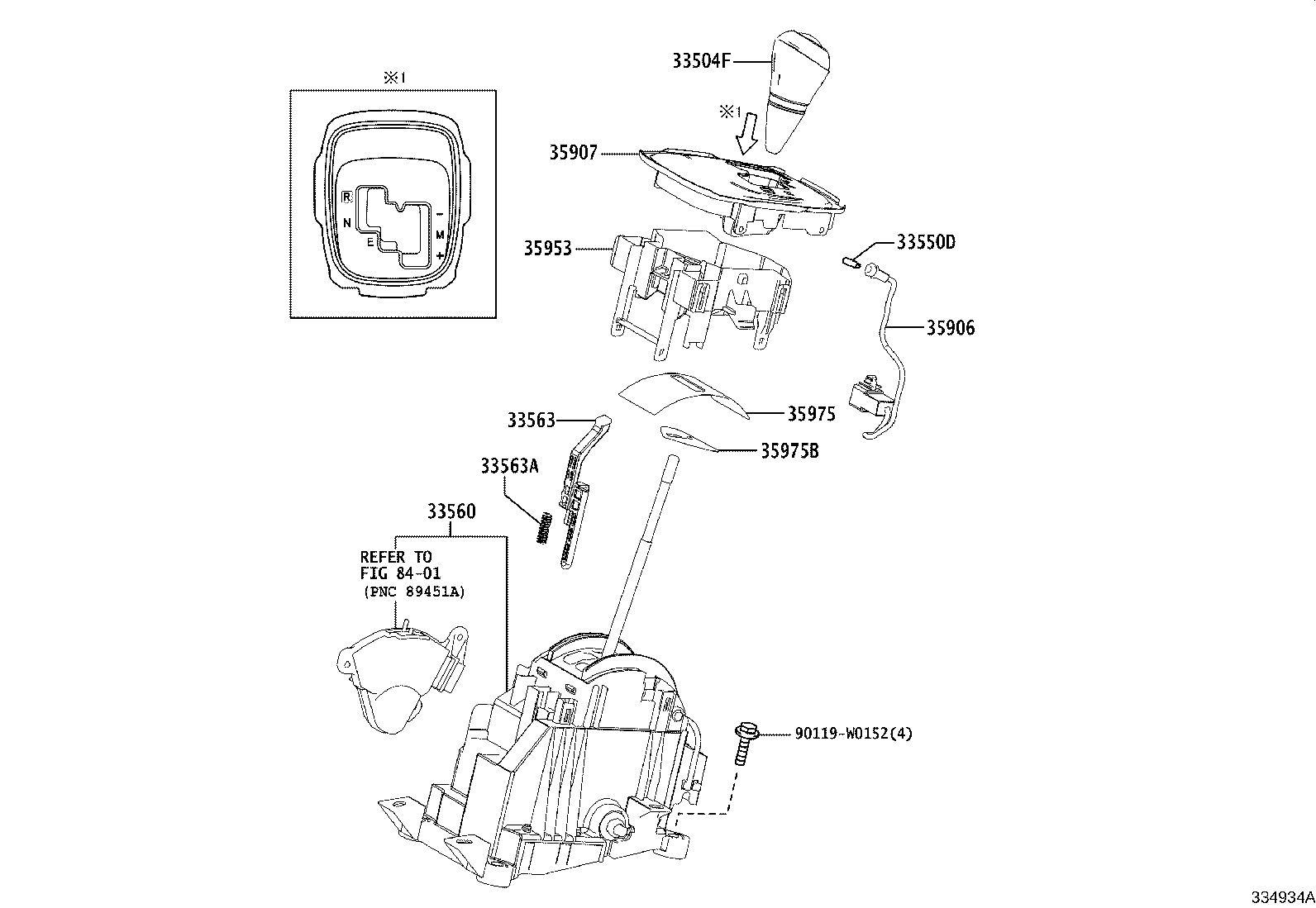

(1405- )5FS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0H060B1 |
KGB40..5FS COLOR SERIES/ROOF COLOR,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 2 + DOP READY,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H050B3 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS LEVEL2(COMFORT),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR SERIES&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 LEVEL2(COMFORT)&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 1 + DOP READY&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 2,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR SERIES/ROOF COLOR&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H050B3 |
KGB40,PAB40..5F..LV1 SHIFT LEVER & KNOB-LEATHER,DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 1,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 2&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS LEVEL2(SPORTS),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR SERIES,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H040B7 |
KGB40..5FS COLOR SERIES,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H040B7 |
KGB40..5FS COLOR SERIES/ROOF COLOR,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H050B8 |
KGB40,PAB40..5F..LV1 COLOR SERIES&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H040B3 |
KGB40..5FS DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 2 + DOP READY&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H050B8 |
KGB40,PAB40..5F..LV1 COLOR SERIES/ROOF COLOR&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/YELLOW,TRIM2# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS SHIFT LEVER & KNOB-LEATHER(CHROME),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS COLOR PACK 1 + DOP READY,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H060B1 |
KGB40..5FS DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 LEVEL2(SPORTS)&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H020B0 |
KGB40,PAB40..5F..LV1 DARK GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 SHIFT LEVER & KNOB-LEATHER(CHROME),DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 COLOR PACK 1&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33504-0H070B1 |
KGB40,PAB40..5F..LV1 STEERING WHEEL-LEATHER,DK.GRAY/BLACK/CHROME,TRIM0#,2#,4#,8# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
KGB40..5FS 12V 1.2W W/O SOCKET |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-12540 |
KGB40..RHD..5FS |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-52070 |
KGB40..5FS |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07087 |
KGB40..5FS |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12180 |
KGB40..5FS |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-70030 |
KGB40..RHD..5FS |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-70030 |
KGB40..RHD..5FS |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52050 |
KGB40..5FS |
1 | ||
| 35975B - COVER, SLIDE, NO.2(FOR POSITION INDICATOR) | ||||
| 35975-52060 |
KGB40..5FS |
1 | ||
| Common parts | ||||
| 90119-W0152 | ||||
| Linked diagrams | ||||
| 8401 | ||||
