KGB40R-AHGGKW (2014)
Toyota Aygo
Production
May 2014
-
May 2018
Engine
1KRFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1405- )1KRFE

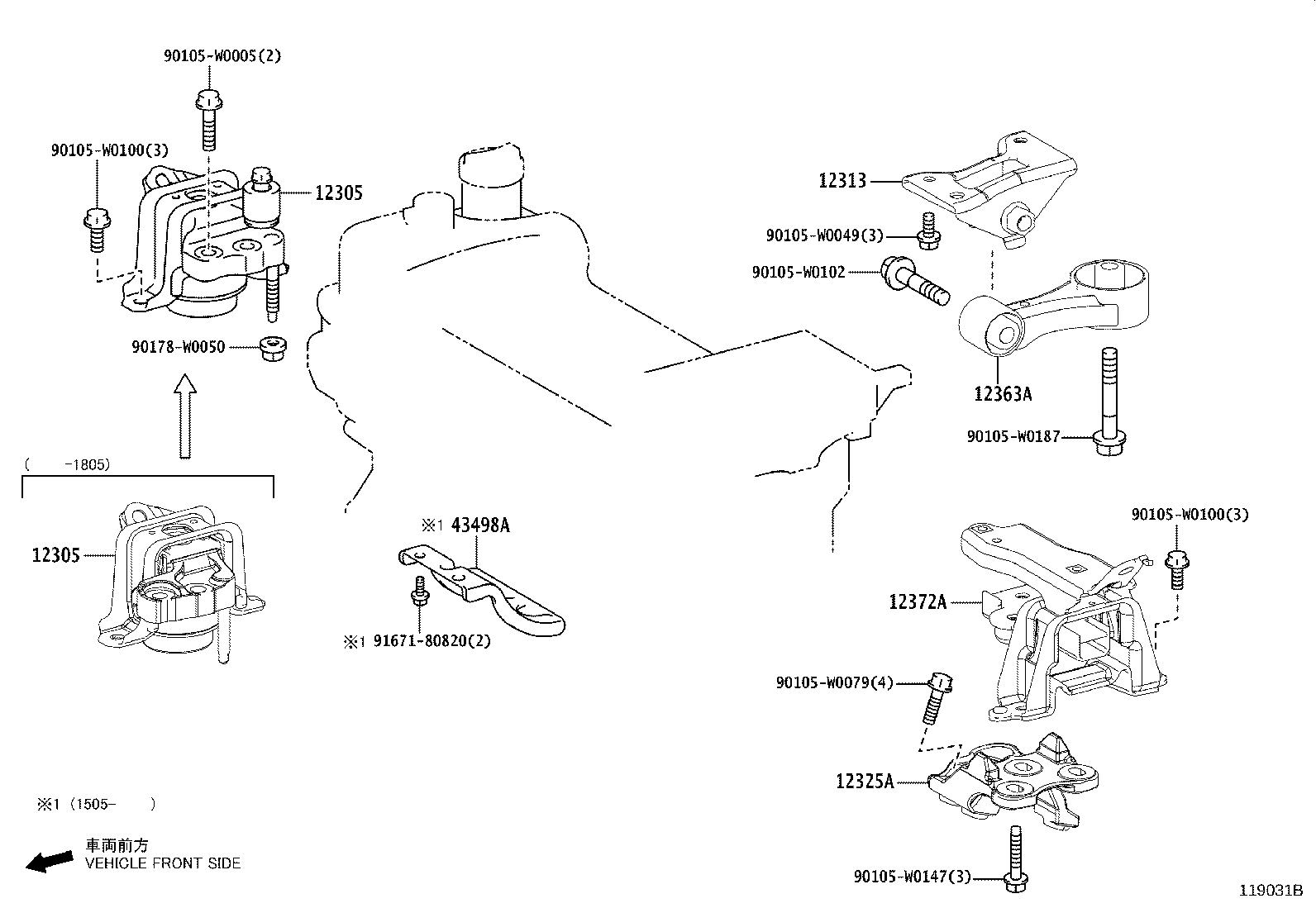

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0Q031 |
1KRFE..KGB40 |
1 | ||
| 12305-0Q032 |
1KRFE..KGB40 |
1 | ||
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0Q031 |
1KRFE..KGB40 |
1 | ||
| 12305-0Q032 |
1KRFE..KGB40 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-0Q010 |
1KRFE..KGB40 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0Q041 |
1KRFE..KGB40 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0Q040 |
1KRFE..KGB40 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0Q051 |
1KRFE..KGB40 |
1 | ||
| 43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1 | ||||
| 43498-0D080 |
KGB40..5D..5F;KGB40..LHD..3D..5F EXHAUST EMISSION CONTROL-EUROPE STEP5 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 43498-0D080 |
KGB40..5D..5F;KGB40..LHD..3D..5F EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 43498-0D080 |
KGB40 |
1 | ||
| Common parts | ||||
| 90105-W0005 | ||||
| 90105-W0049 | ||||
| 90105-W0079 | ||||
| 90105-W0100 | ||||
| 90105-W0102 | ||||
| 90105-W0147 | ||||
| 90105-W0187 | ||||
| 90178-W0050 | ||||
| 91671-80820 | ||||
