KGB40R-AGMGKW (2014)

Toyota Aygo

Production Jun 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

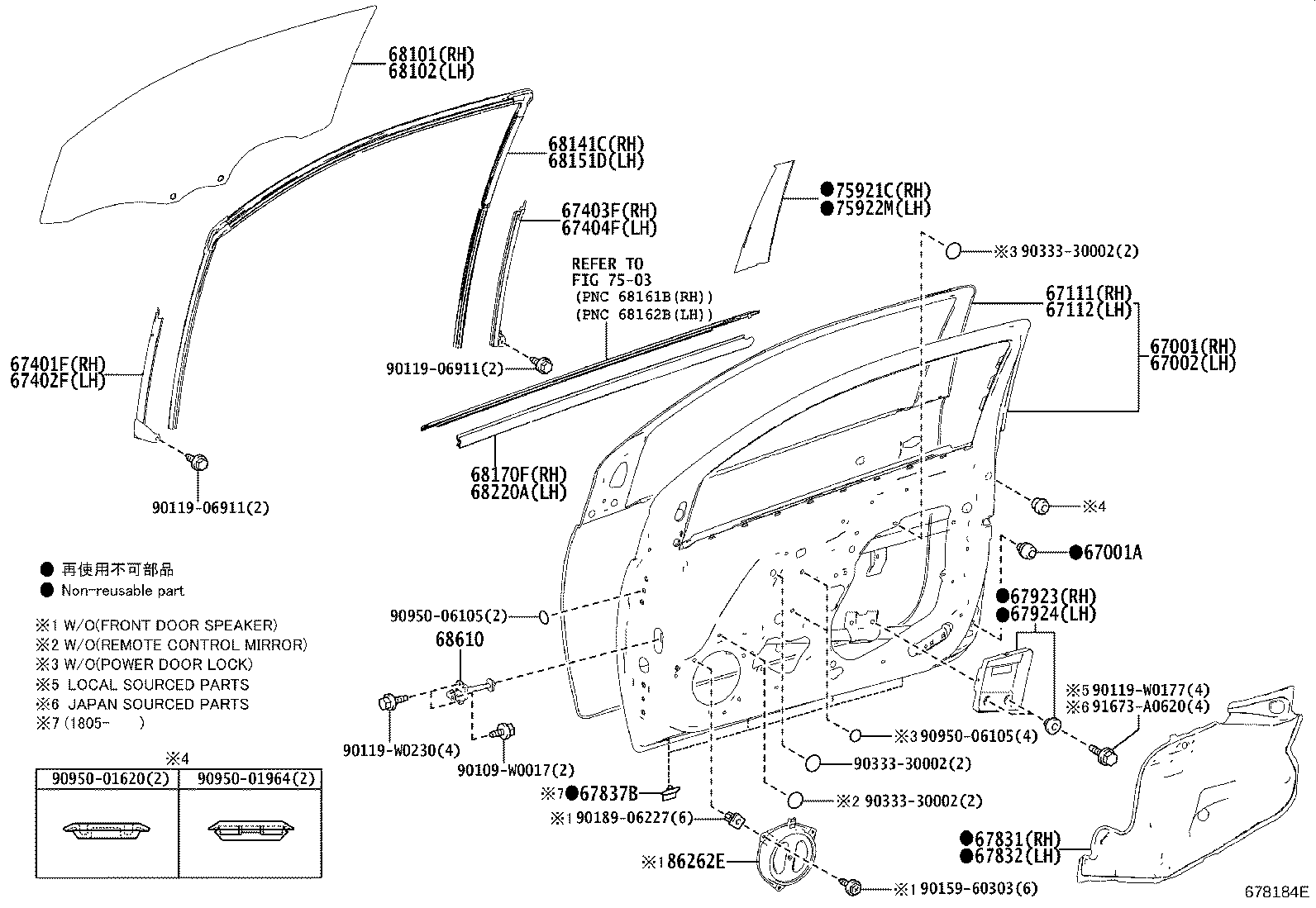

ILLUST NO. 1 OF 2(1406- )3D

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67001A 67002 67111 67112 67401F 67402F 67403F 67404F 67831 67832 67837B 67923 67924 68101 68102 68141C 68151D 68170F 68220A 68610 7503 75921C 75922M 86262E 90109W0017 9011906911 9011906911 90119W0177 90119W0230 9015960303 9018906227 9033330002 9033330002 9033330002 9095001620 9095001964 9095006105 9095006105 91673A0620
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0H060

KGB40,PAB40..3D

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09131

KGB40,PAB40

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0H060

KGB40,PAB40..3D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-0H040

KGB40,PAB40..3D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-0H040

KGB40,PAB40..3D

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-0H020

KGB40,PAB40

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-0H020

KGB40,PAB40

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0H040

KGB40,PAB40..3D

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0H040

KGB40,PAB40..3D

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-0H030

KGB40,PAB40..3D

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-0H030

KGB40,PAB40..3D

 1
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-0H040

KGB40,PAB40..3D

 1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-0H020

KGB40,PAB40..3D

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-0H040

KGB40,PAB40..3D

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-0H040

KGB40,PAB40..3D

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-0H030

KGB40,PAB40..3D

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-0H030

KGB40,PAB40..3D

 1
68170F - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH
68170-0H050

KGB40,PAB40..3D

 1
68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68220-0H050

KGB40,PAB40..3D

 1
68610 - CHECK ASSY, FRONT DOOR
68610-0H050

KGB40,PAB40..3D

 2
75921C - TAPE, BLACK OUT, NO.1 RH
75921-0H030

KGB40,PAB40..3D..LV1

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-0H030

KGB40,PAB40..3D..LV1

 1
Common parts
90109-W0017
90119-06911
90119-W0177
90119-W0230
90159-60303
90189-06227
90333-30002
90950-01620
90950-01964
90950-06105
91673-A0620
Linked diagrams
7503
