KGB40R-AGMGKW (2014)

Toyota Aygo

Production Jun 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1406- )3D

Click highlighted areas on diagram

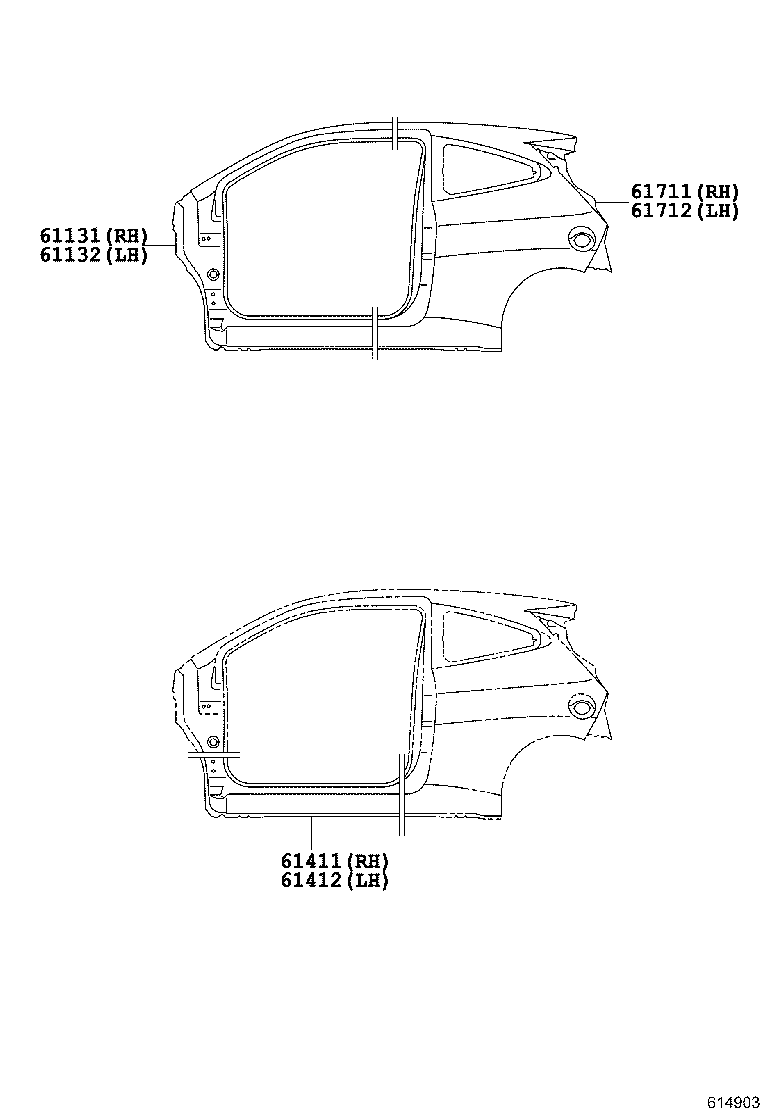

OUTSIDE PANEL

diagram 61131 61132 61411 61412 61711 61712
Part # Description Qty Price
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-0H070

KGB40,PAB40..3D

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-0H070

KGB40,PAB40..3D

 1
61411 - PANEL, ROCKER, OUTER RH
61411-0H060

KGB40,PAB40..3D

 1
61412 - PANEL, ROCKER, OUTER LH
61412-0H060

KGB40,PAB40..3D

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61511-0H020

KGB40,PAB40..3D

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61512-0H020

KGB40,PAB40..3D

 1

ILLUST NO. 2 OF 3(1406- )3D

Click highlighted areas on diagram

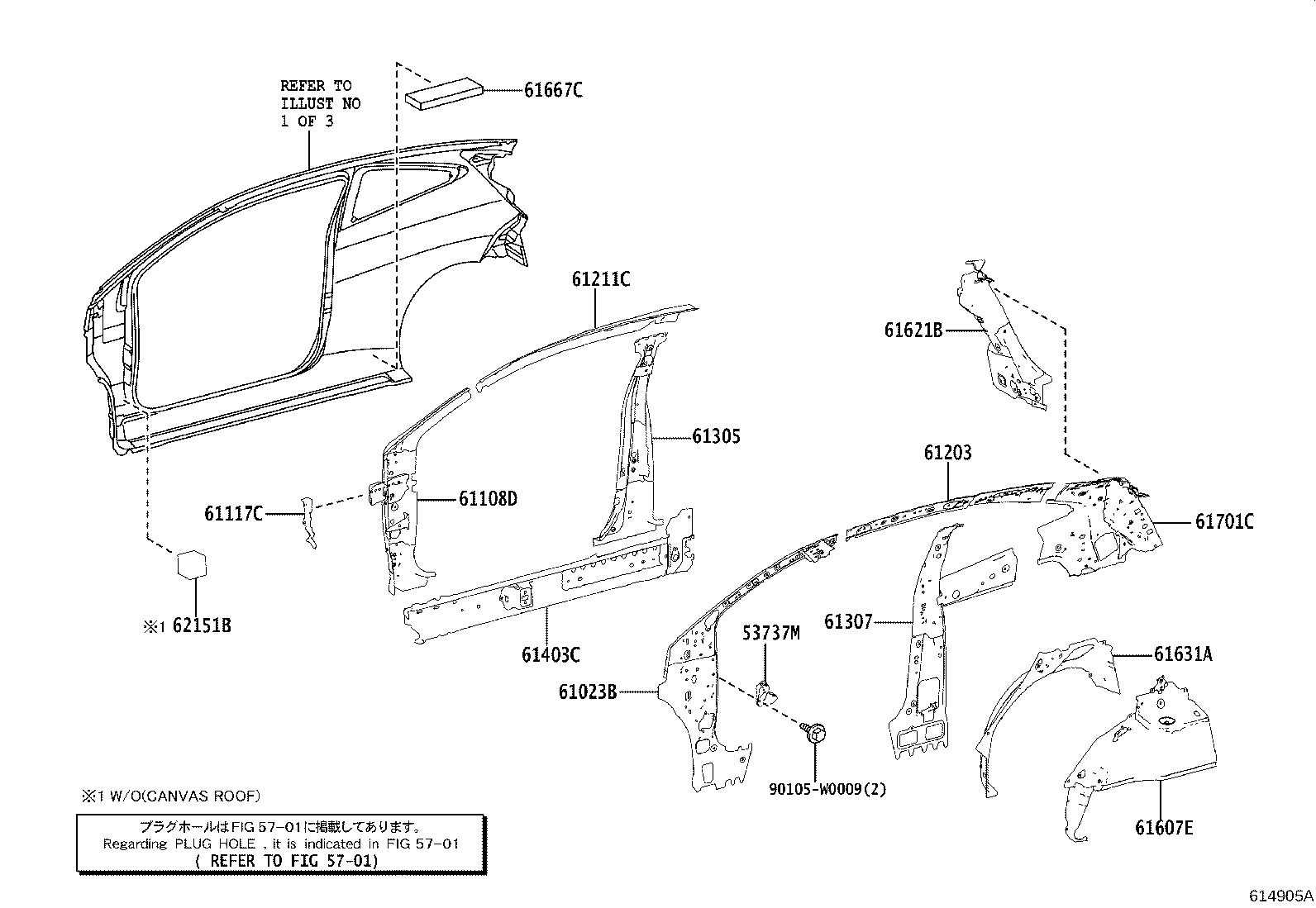

INSIDE PANEL,RH

diagram 53737M 5701 61023B 61108D 61117C 61203 61211C 61305 61307 61403C 61607E 61621B 61631A 61667C 61701C 62151B 90105W0009
Part # Description Qty Price
53737M - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-0H021

KGB40,PAB40

 1
53737-0H020

KGB40,PAB40

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-0H020

KGB40,PAB40

 1
61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61108-0H020

KGB40,PAB40

 1
61117C - GUSSET, SIDE PANEL TO COWL, RH
61117-0H010

KGB40,PAB40

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-0H060

KGB40,PAB40..3D

 1
61211C - RAIL, ROOF SIDE, RH
61211-0H060

KGB40,PAB40..3D

 1
61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61305-0H060

KGB40,PAB40..3D

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-0H060

KGB40,PAB40..3D

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-0H040

KGB40,PAB40..3D

 1
61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-0H030

KGB40,PAB40

 1
61621B - TROUGH, BACK DOOR OPENING, FRONT RH
61063-0H030

KGB40,PAB40

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-0H040

KGB40,PAB40

 1
61667C - SEAL, QAURTER PANEL, NO.1
61667-0H010

KGB40,PAB40..3D

 2
61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH
61701-0H060

KGB40,PAB40..3D

 1
62151B - PAD, COWL SIDE SILENCER
62151-0H010

KGB40,PAB40

 2
Common parts
90105-W0009
Linked diagrams
5701

ILLUST NO. 3 OF 3(1406- )3D

Click highlighted areas on diagram

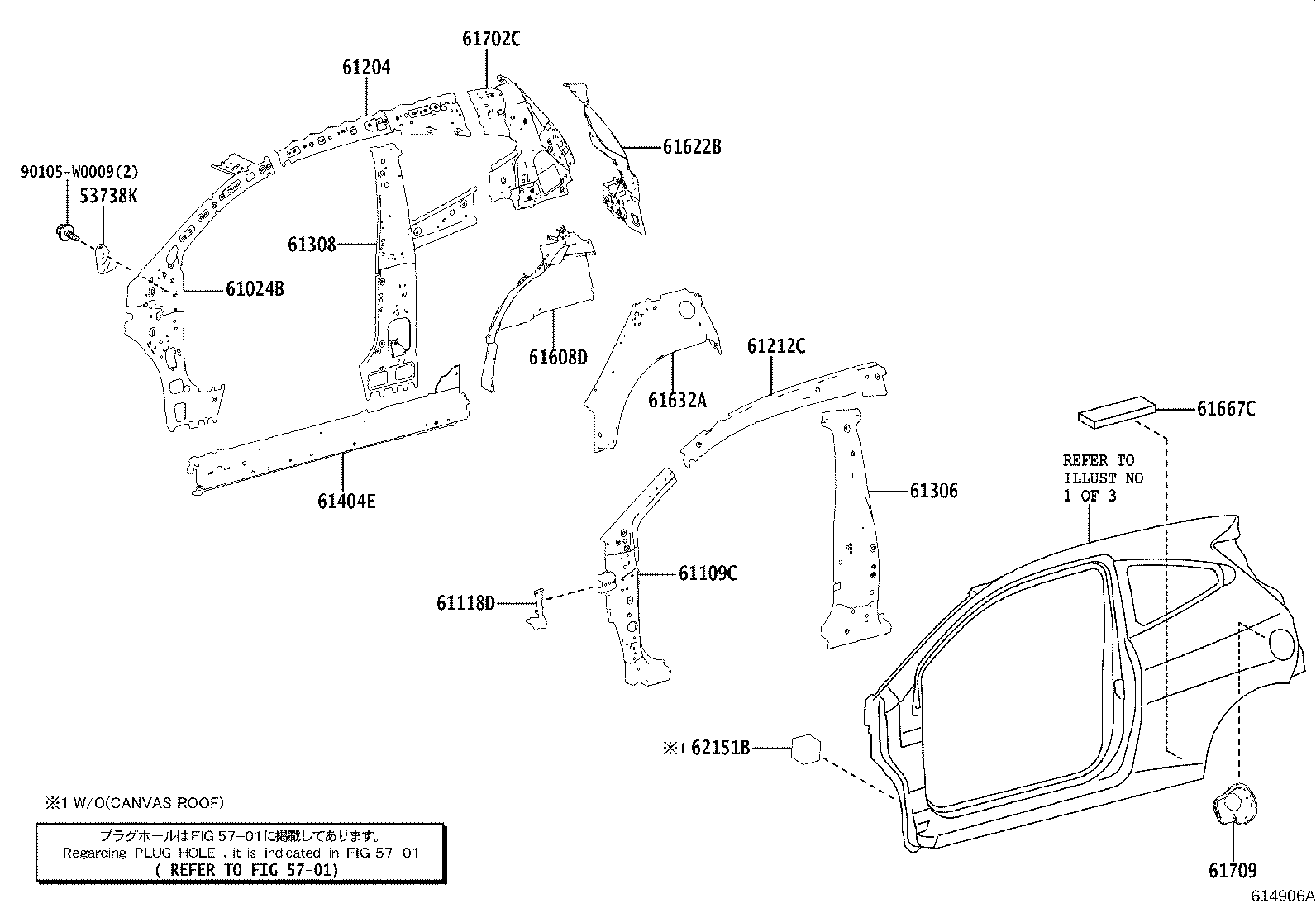

INSIDE PANEL,LH

diagram 53738K 5701 61024B 61109C 61118D 61204 61212C 61306 61308 61404E 61608D 61622B 61632A 61667C 61702C 61709 62151B 90105W0009
Part # Description Qty Price
53738K - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-0H021

KGB40,PAB40

 1
53738-0H020

KGB40,PAB40

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-0H020

KGB40,PAB40

 1
61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61109-0H020

KGB40,PAB40

 1
61118D - GUSSET, SIDE PANEL TO COWL, LH
61118-0H010

KGB40,PAB40

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-0H060

KGB40,PAB40..3D

 1
61212C - RAIL, ROOF SIDE, LH
61212-0H060

KGB40,PAB40..3D

 1
61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61306-0H060

KGB40,PAB40..3D

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-0H060

KGB40,PAB40..3D

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-0H040

KGB40,PAB40..3D

 1
61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-0H030

KGB40,PAB40

 1
61622B - TROUGH, BACK DOOR OPENING, FRONT LH
61064-0H030

KGB40,PAB40

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-0H040

KGB40,PAB40

 1
61667C - SEAL, QAURTER PANEL, NO.1
61667-0H010

KGB40,PAB40..3D

 2
61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH
61702-0H060

KGB40,PAB40..3D

 1
61709 - BOX SUB-ASSY, FUEL INLET
61709-0H010

KGB40,PAB40

 1
62151B - PAD, COWL SIDE SILENCER
62151-0H010

KGB40,PAB40

 2
Common parts
90105-W0009
Linked diagrams
5701
