KGB40R-AGMGKW (2018)
Toyota Aygo
Production
May 2018
-
Sep 9999
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1805- )

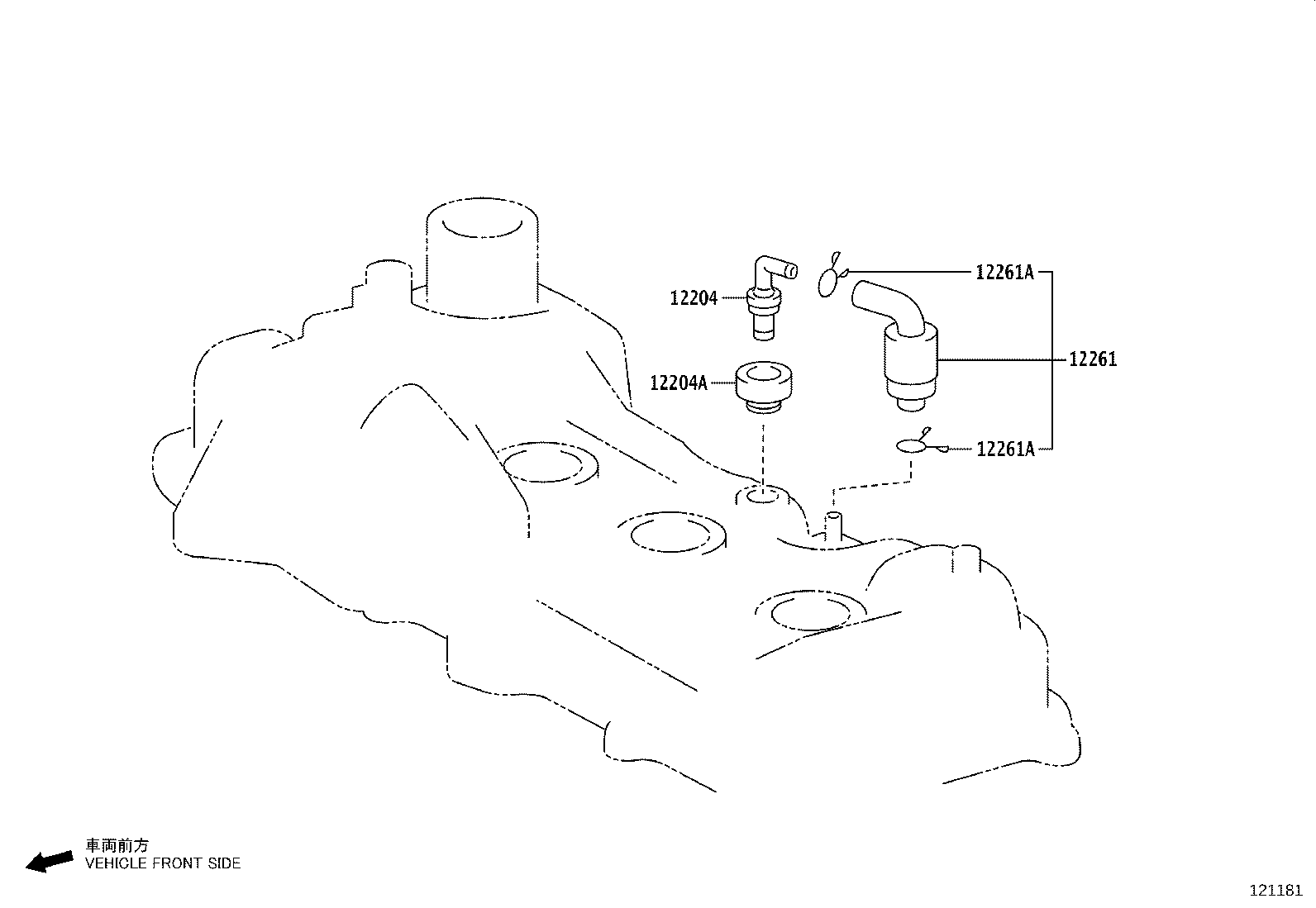

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-40040 |
1KRFE..KGB40..3D |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18016 |
1KRFE..KGB40..3D |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-40060 |
1KRFE..KGB40 |
1 | ||
| 12261-0Q010 |
1KRFE..KGB40..3D |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
1KRFE..KGB40..3D |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
1KRFE..KGB40..3D |
2 | ||
