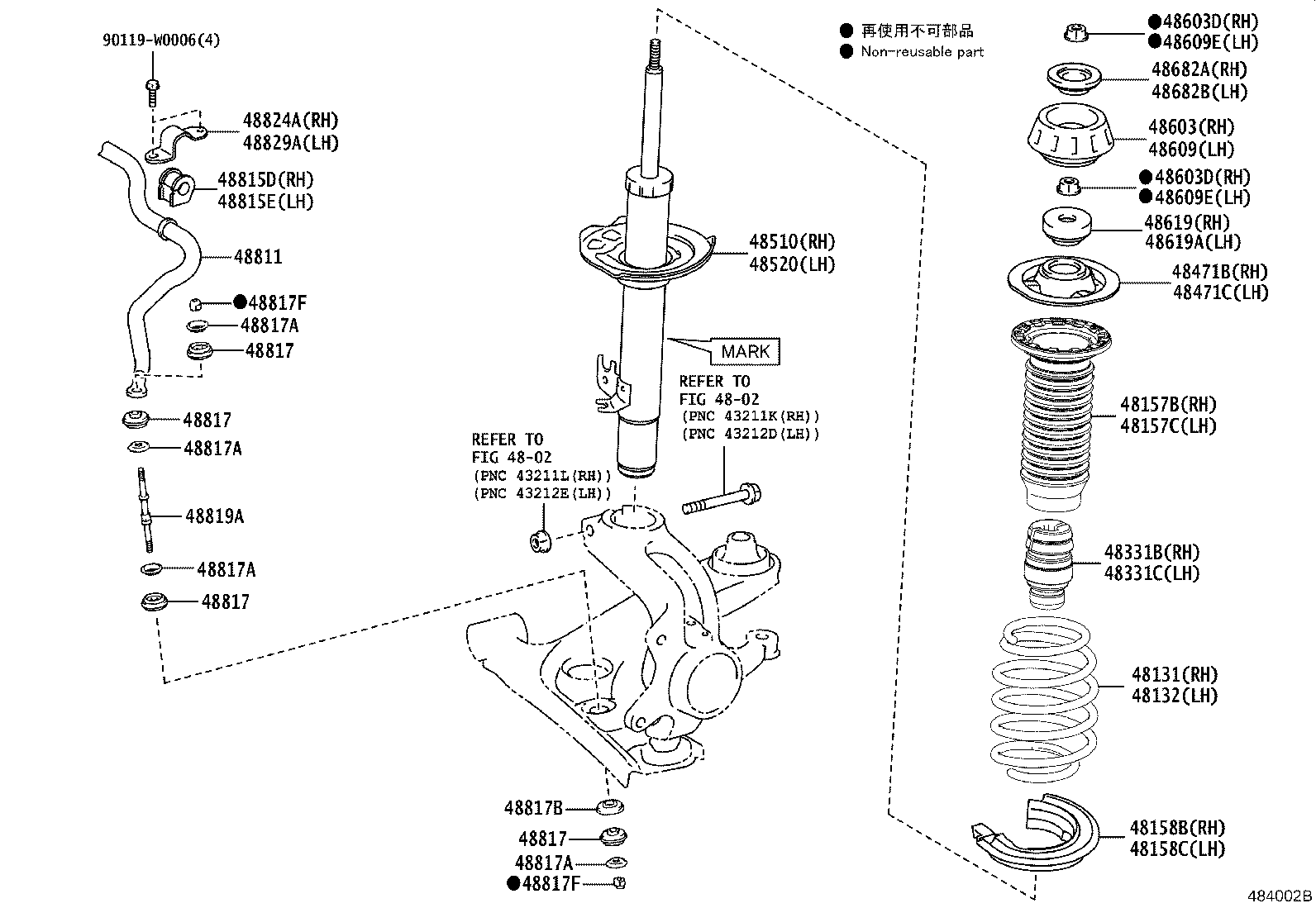

KGB40L-AHMRKW (2014)
Toyota Aygo
(1405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0H050 |
KGB40..LHD..5F ROUGH ROAD AREA SPEC(W(HEIGHT UP)) |
1 | ||
| 48131-0H030 |
KGB40,PAB40 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0H030 |
KGB40,PAB40 |
1 | ||
| 48131-0H050 |
KGB40..LHD..5F ROUGH ROAD AREA SPEC(W(HEIGHT UP)) |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-0H010 |
KGB40,PAB40 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-0H010 |
KGB40,PAB40 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0H010 |
KGB40,PAB40 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0H010 |
KGB40,PAB40 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-0H010 |
KGB40,PAB40 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-0H010 |
KGB40,PAB40 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-0H040 |
KGB40,PAB40 MARK 48510-0H040 |
1 | ||
| 48510-0H060 |
KGB40..LHD..5F MARK 48510-0H060,ROUGH ROAD AREA SPEC(W(HEIGHT UP)) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-0H040 |
KGB40,PAB40 MARK 48520-0H040 |
1 | ||
| 48520-0H060 |
KGB40..LHD..5F MARK 48520-0H060,ROUGH ROAD AREA SPEC(W(HEIGHT UP)) |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0H020 |
KGB40,PAB40 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90178-W0015 |
KGB40,PAB40 |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90178-W0015 |
KGB40,PAB40 |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0H020 |
KGB40,PAB40 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90178-W0015 |
KGB40,PAB40 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90178-W0015 |
KGB40,PAB40 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-0H010 |
KGB40,PAB40 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-0H010 |
KGB40,PAB40 |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-0H010 |
KGB40,PAB40 |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-0H010 |
KGB40,PAB40 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0H020 |
KGB40,PAB40 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-0H020 |
KGB40,PAB40 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-0H020 |
KGB40,PAB40 |
1 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-0D010 |
KGB40,PAB40 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-0D010 |
KGB40,PAB40 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-0D010 |
KGB40,PAB40 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-0D010 |
KGB40,PAB40 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
KGB40,PAB40 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
KGB40,PAB40 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
KGB40,PAB40 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02179 |
KGB40,PAB40 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02178 |
KGB40,PAB40 |
2 | ||
| 48817F - NUT(FOR FRONT STABILIZER BAR) | ||||
| 90177-W0002 |
KGB40,PAB40 |
4 | ||
| 48817F - NUT(FOR FRONT STABILIZER BAR) | ||||
| 90177-W0002 |
KGB40,PAB40 |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-70010 |
KGB40,PAB40 |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0H020 |
KGB40,PAB40 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0H020 |
KGB40,PAB40 |
1 | ||
| Common parts | ||||
| 90119-W0006 | ||||
| Linked diagrams | ||||
| 4802 | ||||
