KGB40L-AHMRKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1405- )LHD..5F

Click highlighted areas on diagram

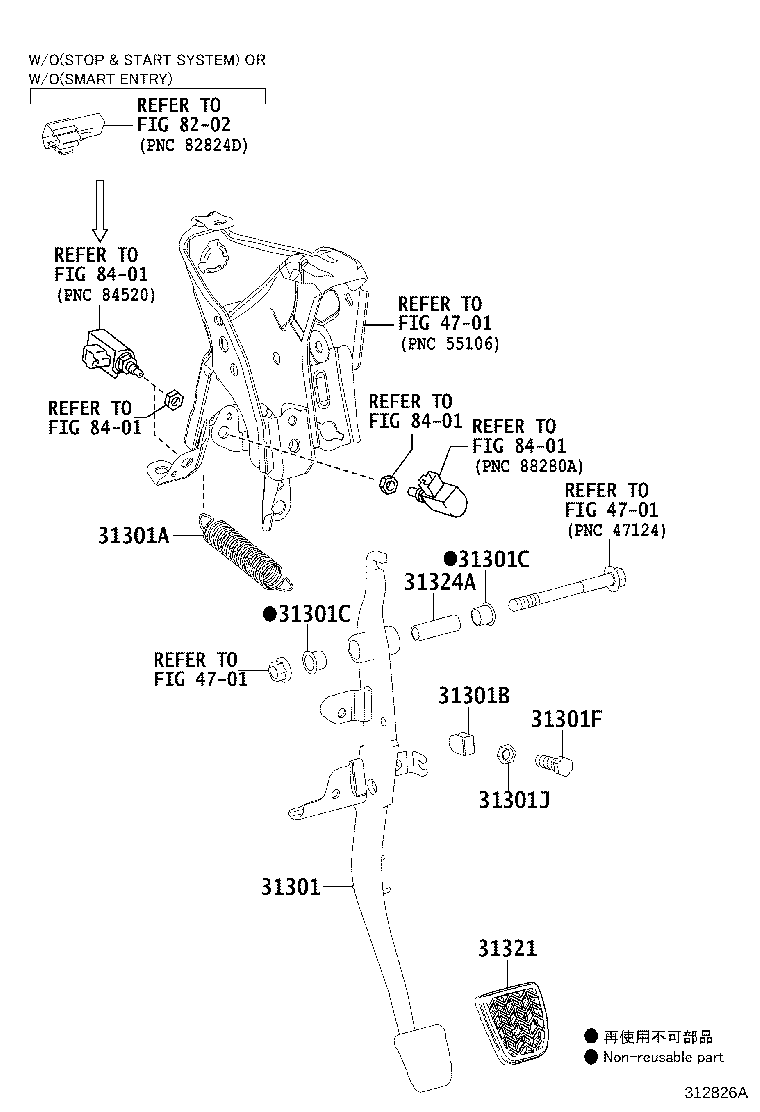

CLUTCH PEDAL

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31321 31324A 4701 4701 4701 8202 8401 8401 8401 8401
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0H070

KGB40,PAB40..LHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
47146-0H010

KGB40,PAB40..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-0H010

KGB40,PAB40..LHD..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KGB40,PAB40..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KGB40,PAB40..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KGB40,PAB40..LHD..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-W0002

KGB40,PAB40..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KGB40,PAB40..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

KGB40,PAB40..5F

 1
Linked diagrams
4701
8202
8401

ILLUST NO. 2 OF 2(1405- )KGB40..5F

Click highlighted areas on diagram

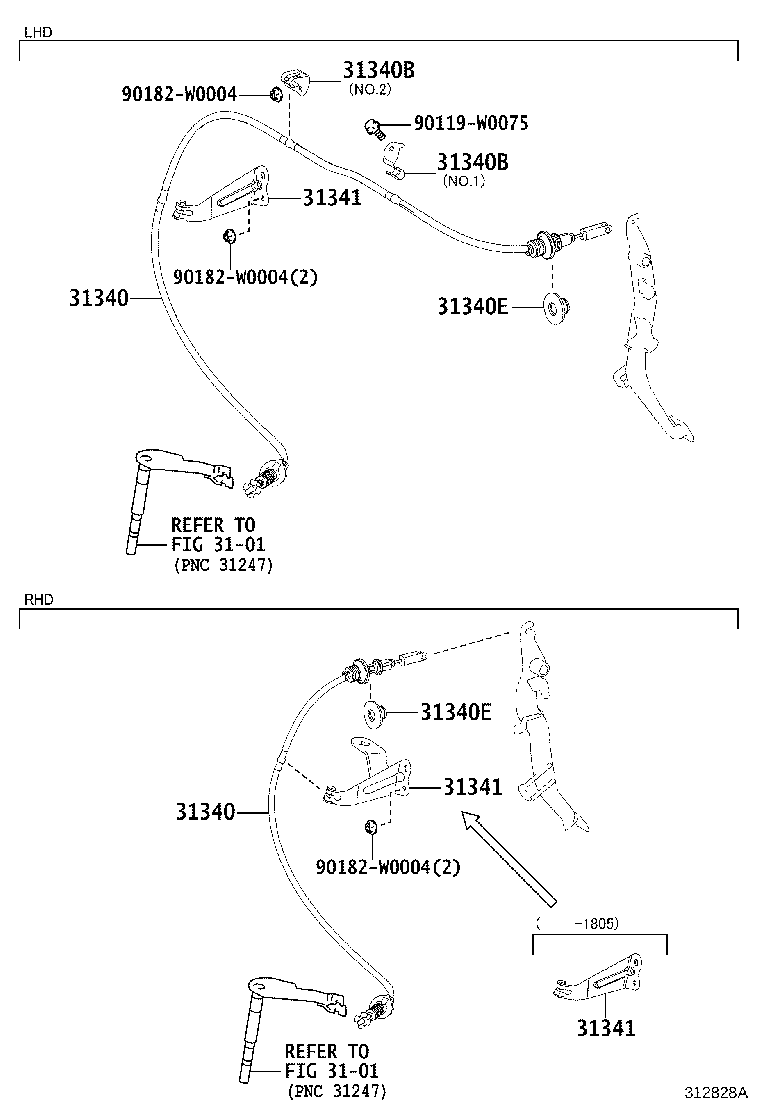

CLUTCH RELEASE CABLE

diagram 3101 3101 31340 31340 31340B 31340B 31340E 31340E 31341 31341 31341 90119W0075 90182W0004 90182W0004 90182W0004
Part # Description Qty Price
31340 - CABLE ASSY, CLUTCH RELEASE
31340-0H060

KGB40..LHD..5F

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-0H060

KGB40..LHD..5F

 1
31340B - CLAMP(FOR CLUTCH RELEASE CABLE)
90949-W2003

PAB40..RHD;KGB40..LHD..5F

NO.2:REFER ILLUST.

 1
90949-W2004

PAB40..RHD;KGB40..LHD..5F

NO.1:REFER ILLUST.

 1
31340B - CLAMP(FOR CLUTCH RELEASE CABLE)
90949-W2003

PAB40..RHD;KGB40..LHD..5F

NO.2:REFER ILLUST.

 1
90949-W2004

PAB40..RHD;KGB40..LHD..5F

NO.1:REFER ILLUST.

 1
31340E - GROMMET(FOR CLUTCH RELEASE CABLE)
90385-W0001

KGB40,PAB40..5F

 1
31340E - GROMMET(FOR CLUTCH RELEASE CABLE)
90385-W0001

KGB40,PAB40..5F

 1
31341 - BRACKET, CLUTCH CABLE
31341-0H010

KGB40..5F

 1
31341 - BRACKET, CLUTCH CABLE
31341-0H010

KGB40..5F

 1
31341 - BRACKET, CLUTCH CABLE
31341-0H010

KGB40..5F

 1
Common parts
90119-W0075
90182-W0004
Linked diagrams
3101
