KGB40L-AHGGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

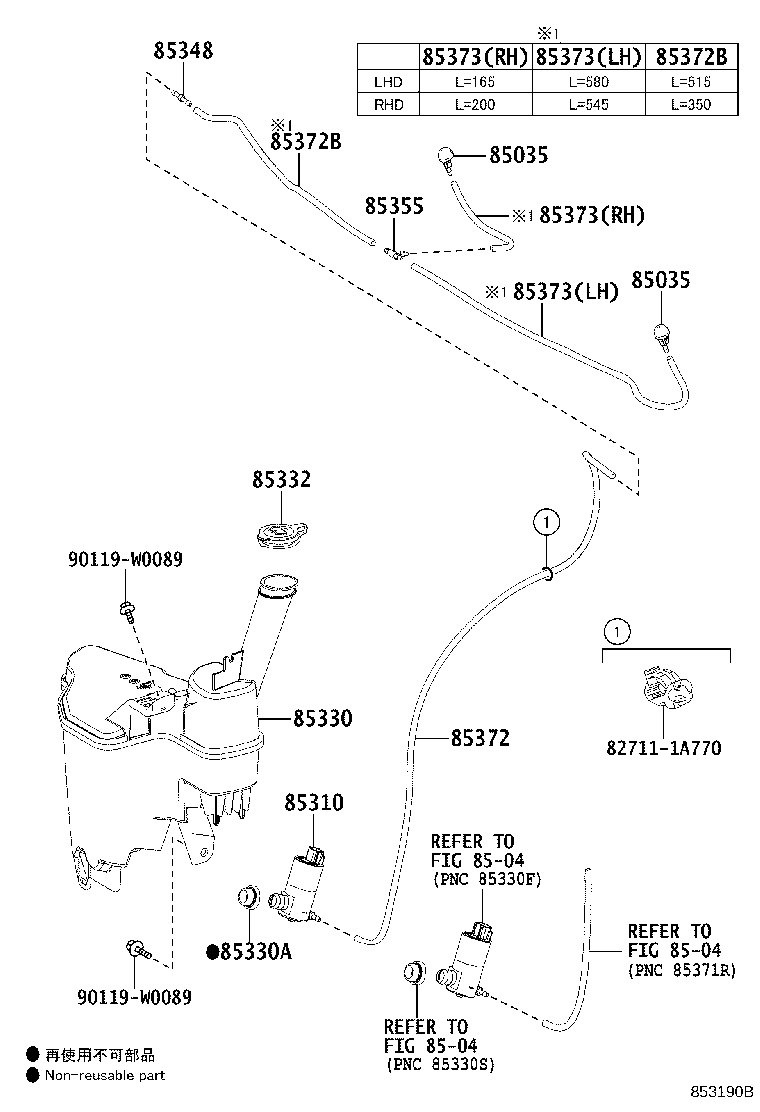

Click highlighted areas on diagram

diagram 827111A770 85035 85035 8504 8504 8504 85310 85330 85330A 85332 85348 85355 85372 85372B 85372B 85373 85373 85373 85373 90119W0089 90119W0089
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0H020

KGB40,PAB40

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0H020

KGB40,PAB40

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-02030

KGB40,PAB40

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0H030

KGB40,PAB40

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90069-20005

KGB40,PAB40

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0D010

KGB40,PAB40

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-05050

KGB40,PAB40

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85378-0H110

KGB40,PAB40

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90069-16009

KGB40,PAB40

*H,L=905

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90069-16009

KGB40,PAB40

*318:REFER ILLUST.

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90069-16009

KGB40,PAB40

*318:REFER ILLUST.

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009

KGB40,PAB40

*318:REFER ILLUST.

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009

KGB40,PAB40

*318:REFER ILLUST.

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009

KGB40,PAB40

*318:REFER ILLUST.

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009

KGB40,PAB40

*318:REFER ILLUST.

 2
Common parts
82711-1A770
90119-W0089
Linked diagrams
8504
