KGB40L-AHGGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1405- )

Click highlighted areas on diagram

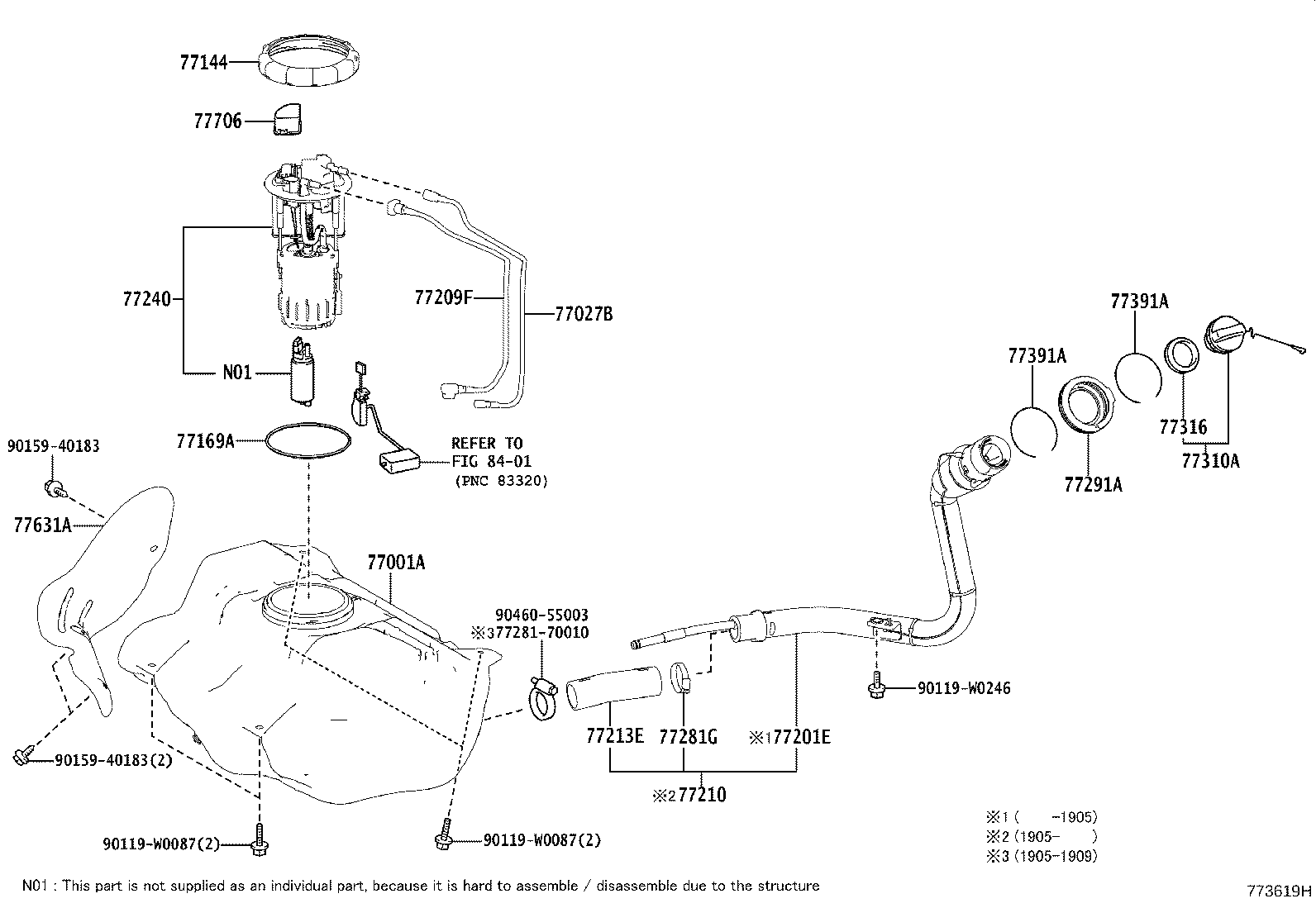

FUEL TANK

diagram 77001A 77027B 77144 77169A 77201E 77209F 77210 77213E 77240 7728170010 77281G 77291A 77310A 77316 77391A 77391A 77631A 77706 8401 90119W0087 90119W0087 90119W0246 9015940183 9015940183 9046055003
Part # Description Qty Price
77001A - TANK SUB-ASSY, FUEL
77001-0H040

KGB40,PAB40

 1
77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1
77027-0H010

KGB40,PAB40

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0H010

KGB40,PAB40

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0H010

KGB40,PAB40

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-0H050

KGB40,PAB40

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0H010

KGB40,PAB40

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-0H022

KGB40,PAB40

 1
77240 - TUBE ASSY, FUEL SUCTION
77240-0H030

KGB40,PAB40

 1
77281G - CLAMP, FUEL HOSE
77281-0H010

KGB40,PAB40

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0H030

KGB40,PAB40

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

KGB40,PAB40

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

KGB40,PAB40

 1
77391A - RING, FUEL INLET BOX
77391-0H010

KGB40,PAB40

 2
77391A - RING, FUEL INLET BOX
77391-0H010

KGB40,PAB40

 2
77631A - PROTECTOR, FUEL TANK, LOWER CENTER
77631-0H010

KGB40,PAB40

 1
77706 - FILTER SUB-ASSY, CHARCOAL CANISTER
77706-0H010

KGB40,PAB40

 1
Common parts
77281-70010
90119-W0087
90119-W0246
90159-40183
90460-55003
Linked diagrams
8401

ILLUST NO. 2 OF 3(1405- )

Click highlighted areas on diagram

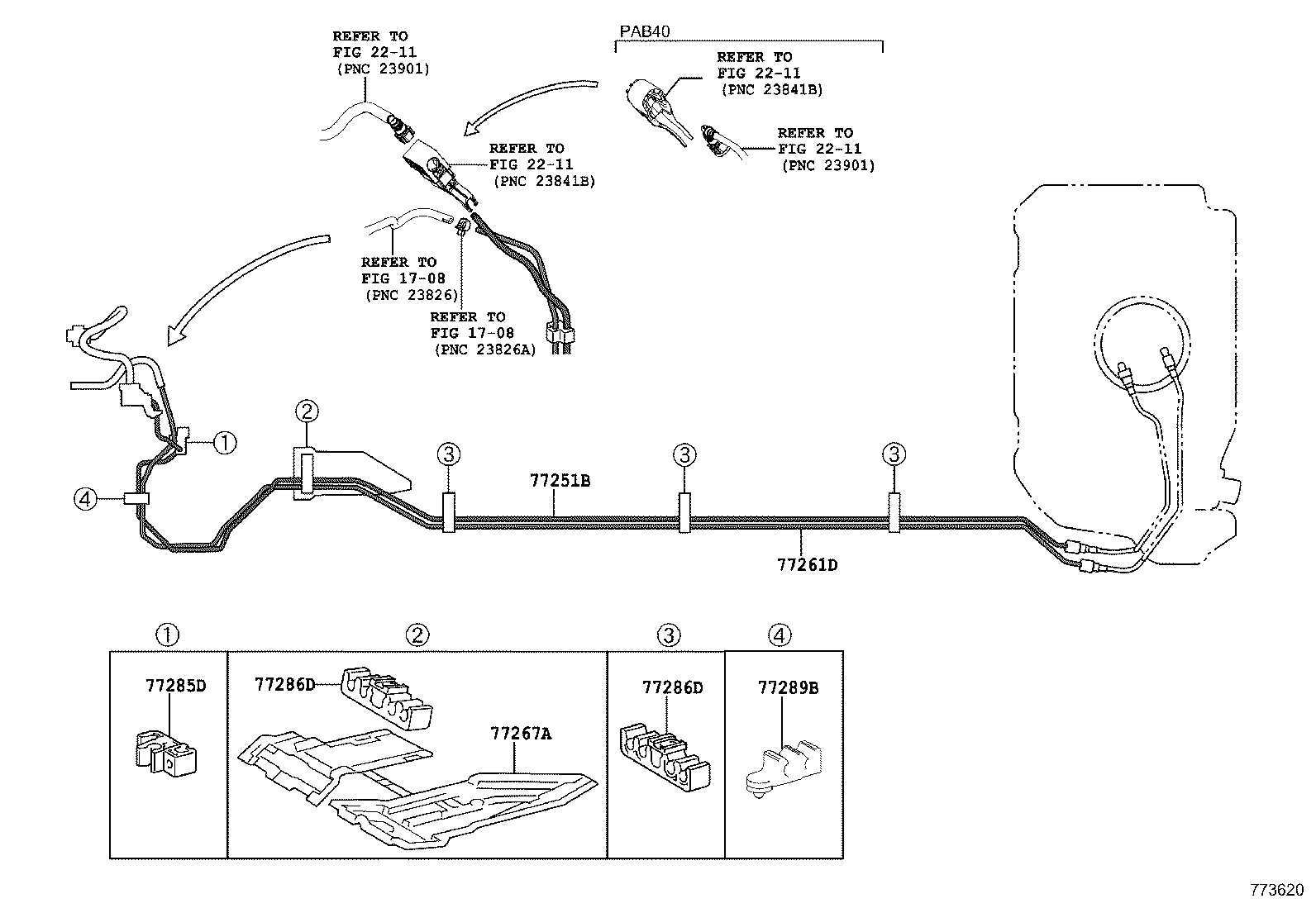

FUEL TUBE

diagram 1708 1708 2211 2211 2211 2211 77251B 77261D 77267A 77285D 77286D 77286D 77289B
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-0H030

KGB40,PAB40

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-0H020

KGB40,PAB40

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-0H010

KGB40,PAB40

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0H010

KGB40,PAB40

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0H010

KGB40,PAB40

 4
77286D - CLAMP, FUEL TUBE, NO.2
77286-0H010

KGB40,PAB40

 4
77289B - CLAMP, FUEL TUBE, NO.3
77289-0H020

KGB40,PAB40

 1
77289-0H030

KGB40,PAB40

 1
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(1405- )

Click highlighted areas on diagram

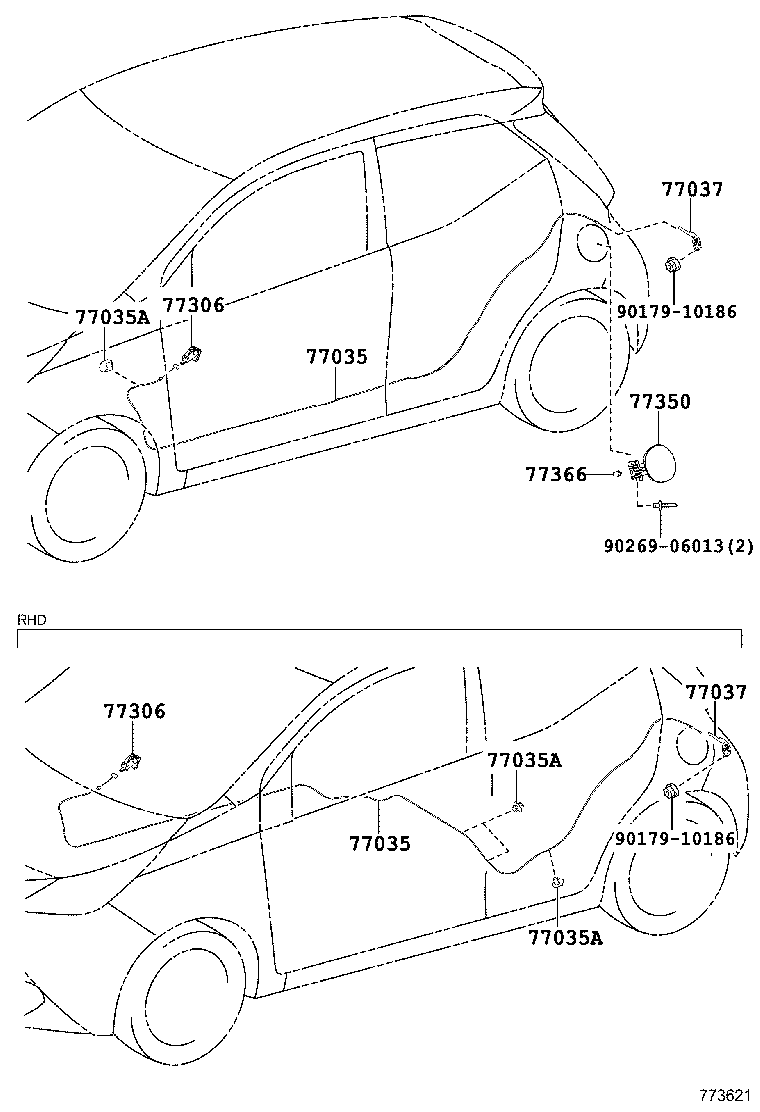

FUEL LID OPENER

diagram 77035 77035 77035A 77035A 77035A 77037 77037 77306 77306 77350 77366 9017910186 9017910186 9026906013
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0H010

KGB40,PAB40..LHD

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0H010

KGB40,PAB40..LHD

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

KGB40,PAB40..LHD

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

KGB40,PAB40..LHD

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

KGB40,PAB40..LHD

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-0H010

KGB40,PAB40

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-0H010

KGB40,PAB40

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0H010B0

KGB40,PAB40..LV1

PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#,9#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0H010B0

KGB40,PAB40..LV1

PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#,9#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0H030

KGB40,PAB40

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-52011

KGB40,PAB40

 1
Common parts
90179-10186
90269-06013
