KGB40L-AHGGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

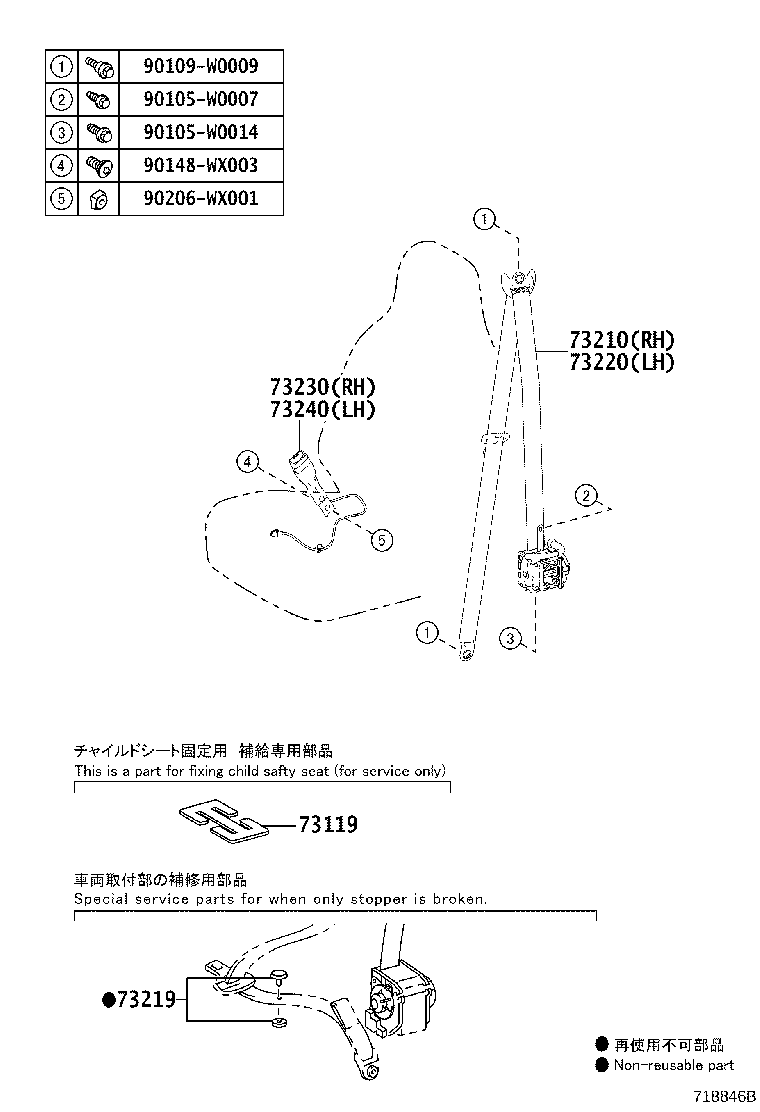

ILLUST NO. 1 OF 2(1405- )

Click highlighted areas on diagram

FRONT

diagram 73119 73210 73219 73220 73230 73240 90105W0007 90105W0014 90109W0009 90148WX003 90206WX001
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

KGB40,PAB40

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0H040C0

KGB40,PAB40..5D..LV1

BLACK,TRIM0#,1#,2#,4#,8#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

KGB40,PAB40

BLACK

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0H040C0

KGB40,PAB40..5D..LV1

BLACK,TRIM0#,1#,2#,4#,8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0H050B0

KGB40,PAB40..LHD..LV1

PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0H040B0

KGB40,PAB40..LHD..LV1

PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#

 1
Common parts
90105-W0007
90105-W0014
90109-W0009
90148-WX003
90206-WX001

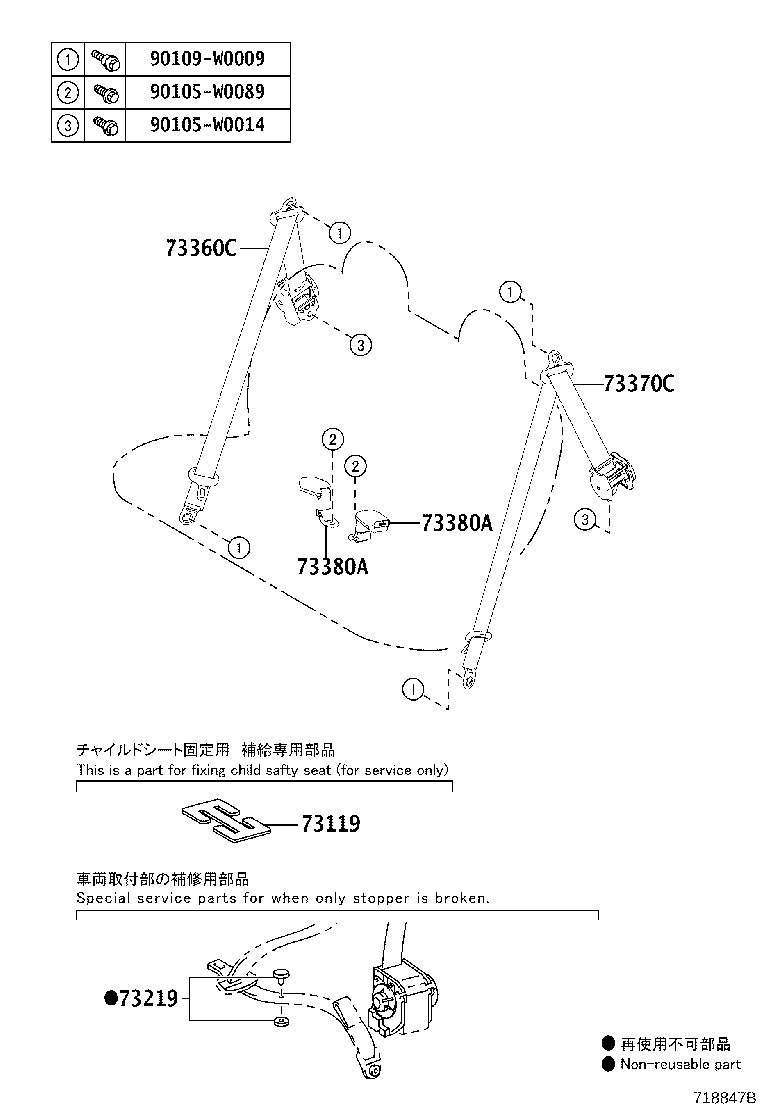

ILLUST NO. 2 OF 2(1405- )

Click highlighted areas on diagram

REAR

diagram 73119 73219 73360C 73370C 73380A 73380A 90105W0014 90105W0089 90109W0009
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

KGB40,PAB40

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

KGB40,PAB40

BLACK

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-0H020C0

KGB40,PAB40..LV1

BLACK,TRIM0#,1#,2#,4#,8#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-0H020C0

KGB40,PAB40..LV1

BLACK,TRIM0#,1#,2#,4#,8#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-0H031C0

KGB40,PAB40

BLACK,TRIM2#

 2
73380-0H030C0

KGB40,PAB40..LV1

BLACK,TRIM0#,1#,2#,4#,8#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-0H031C0

KGB40,PAB40

BLACK,TRIM2#

 2
73380-0H030C0

KGB40,PAB40..LV1

BLACK,TRIM0#,1#,2#,4#,8#

 2
Common parts
90105-W0014
90105-W0089
90109-W0009
