KGB40L-AHGGKW (2014)

Toyota Aygo

Production May 2014 - May 2018
Engine 1KRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

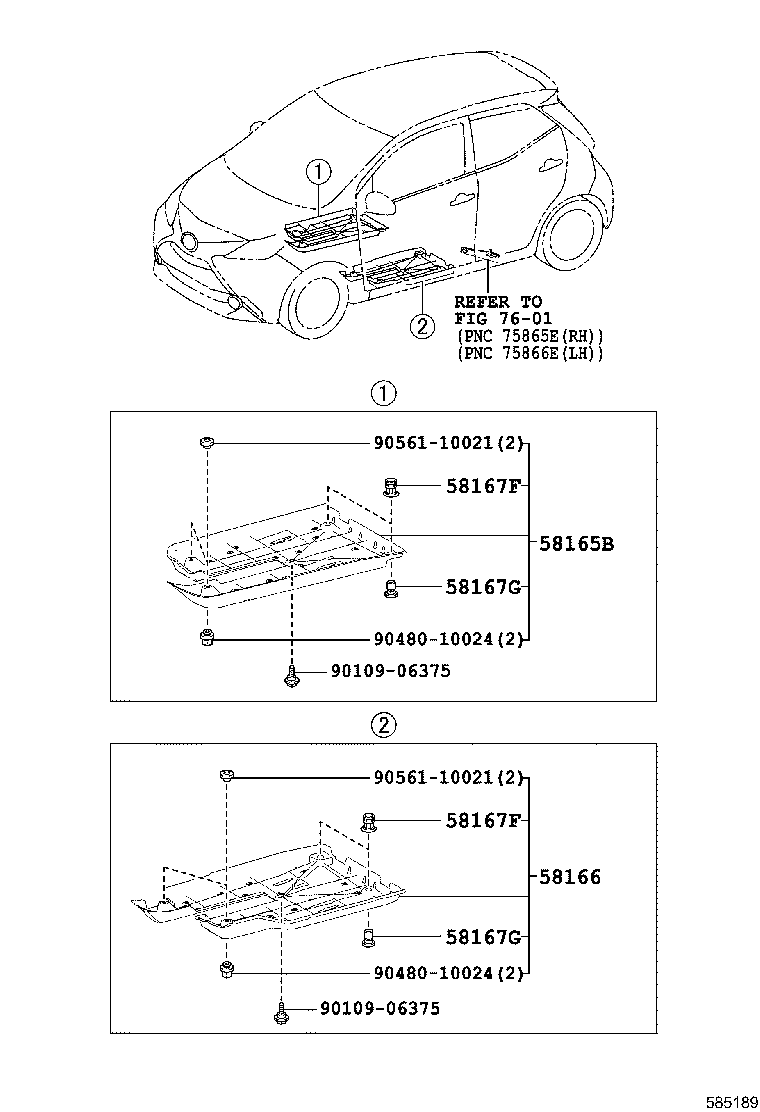

ILLUST NO. 2 OF 2(1405- )KGB40..5F

Click highlighted areas on diagram

FLOOR UNDER COVER

diagram 58165B 58166 58167F 58167F 58167G 58167G 7601 9010906375 9010906375 9048010024 9048010024 9056110021 9056110021
Part # Description Qty Price
58165B - COVER, FRONT FLOOR, RH
58165-0H020

KGB40..5F

WITH(STOP & START SYSTEM)

 1
58166 - COVER, FRONT FLOOR, LH
58166-0H020

KGB40..5F

WITH(STOP & START SYSTEM)

 1
58167F - CLIP, NO.1(FOR FLOOR UNDER COVER)
90467-W0012

KGB40..5F

WITH(STOP & START SYSTEM)

 4
58167F - CLIP, NO.1(FOR FLOOR UNDER COVER)
90467-W0012

KGB40..5F

WITH(STOP & START SYSTEM)

 4
58167G - CLIP, NO.2(FOR FLOOR UNDER COVER)
90467-W0013

KGB40..5F

WITH(STOP & START SYSTEM)

 4
58167G - CLIP, NO.2(FOR FLOOR UNDER COVER)
90467-W0013

KGB40..5F

WITH(STOP & START SYSTEM)

 4
Common parts
90109-06375
90480-10024
90561-10021
Linked diagrams
7601

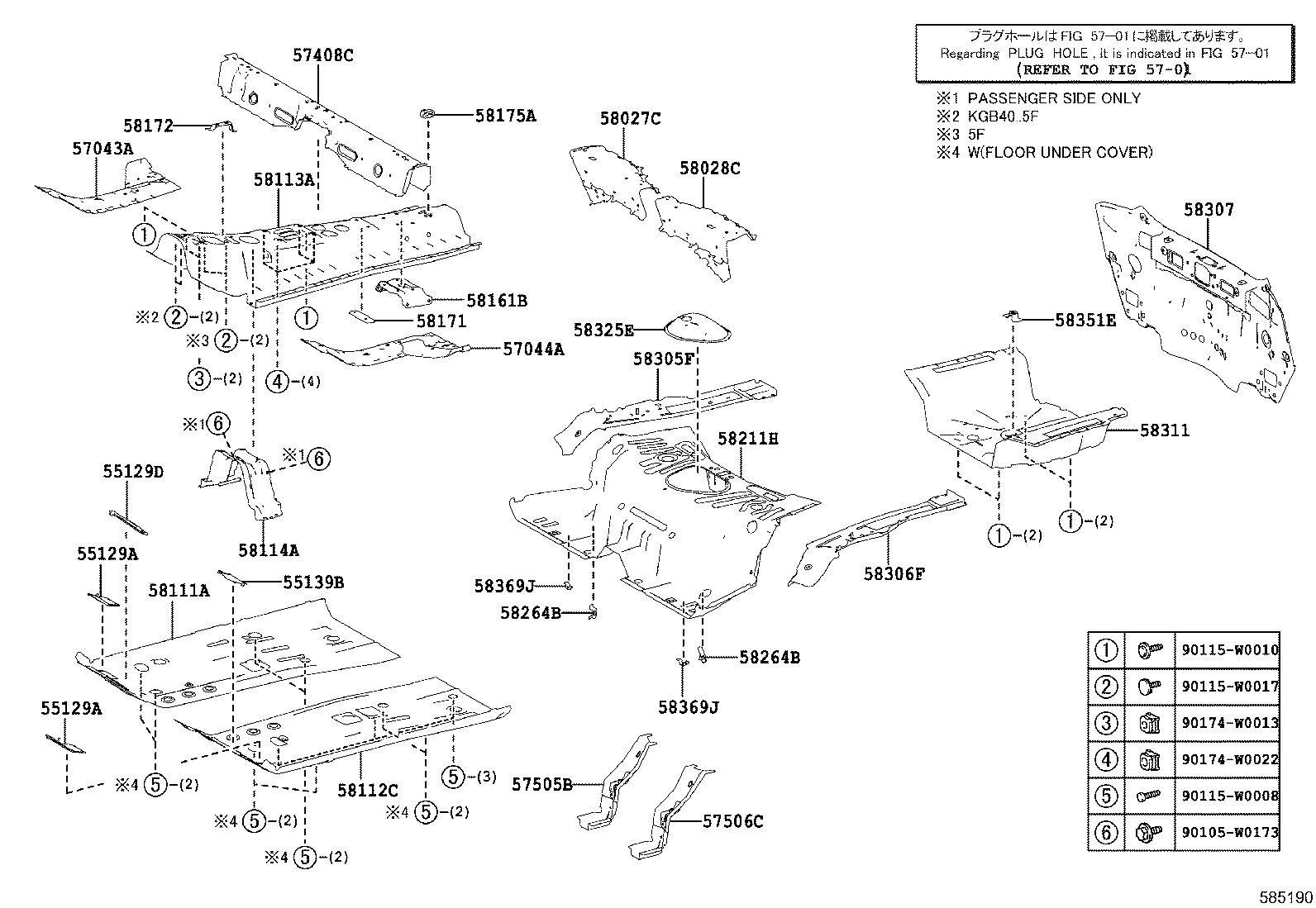

ILLUST NO. 1 OF 2(1405- )

Click highlighted areas on diagram

diagram 55129A 55129A 55129D 55139B 5701 57043A 57044A 57408C 57505B 57506C 58027C 58028C 58111A 58112C 58113A 58114A 58161B 58171 58172 58175A 58211H 58264B 58264B 58305F 58306F 58307 58311 58325E 58351E 58369J 58369J 90105W0173 90115W0008 90115W0010 90115W0017 90174W0013 90174W0022
Part # Description Qty Price
55129A - COVER, FRONT FLOOR HOLE
58165-0H010

KGB40,PAB40

RH

 1
58166-0H010

KGB40,PAB40

LH

 1
55129A - COVER, FRONT FLOOR HOLE
58165-0H010

KGB40,PAB40

RH

 1
58166-0H010

KGB40,PAB40

LH

 1
55129D - COVER, DASH PANEL HOLE, RH
55129-0H010

KGB40,PAB40

 1
55139B - COVER, DASH PANEL HOLE, LH
55139-0H010

KGB40,PAB40

 1
57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-0H020

KGB40,PAB40

 1
57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-0H020

KGB40,PAB40

 1
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-0H020

KGB40,PAB40

 1
57505B - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
57505-0H010

KGB40,PAB40

 1
57506C - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
57506-0H010

KGB40,PAB40

 1
58027C - PANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58027-0H020

KGB40,PAB40

 1
58028C - PANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58028-0H020

KGB40,PAB40

 1
58111A - PAN, FRONT FLOOR, RH
58111-0H010

KGB40,PAB40

 1
58112C - PAN, FRONT FLOOR, LH
58112-0H901

KGB40,PAB40

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-0H903

KGB40,PAB40

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-0H021

KGB40,PAB40

 1
58114-0H020

KGB40,PAB40

 1
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58161-0H012

KGB40,PAB40

 1
58161-0H011

KGB40,PAB40

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-0H010

KGB40,PAB40

 1
58171-0H011

KGB40,PAB40

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-0H010

KGB40,PAB40

 1
58172-0H011

KGB40,PAB40

 1
58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1
58175-0H011

KGB40,PAB40

 1
58175-0H010

KGB40,PAB40

 1
58211H - PAN, CENTER FLOOR
58211-0H010

KGB40,PAB40

 1
58264B - BRACKET, PARKING BRAKE CABLE GUIDE
58264-0H020

KGB40,PAB40

 2
58264B - BRACKET, PARKING BRAKE CABLE GUIDE
58264-0H020

KGB40,PAB40

 2
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-0H010

KGB40,PAB40

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-0H010

KGB40,PAB40

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-0H030

KGB40,PAB40

 1
58311 - PAN, REAR FLOOR
58311-0H010

KGB40,PAB40

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-0H021

KGB40,PAB40

 1
58351E - BRACKET, SPARE WHEEL CLAMP
58351-0H010

KGB40,PAB40

 1
58369J - BRACKET, REAR FLOOR BRACE
58369-0H010

KGB40,PAB40

 2
58369J - BRACKET, REAR FLOOR BRACE
58369-0H010

KGB40,PAB40

 2
Common parts
90105-W0173
90115-W0008
90115-W0010
90115-W0017
90174-W0013
90174-W0022
Linked diagrams
5701
