KGB40L-AGMGKW (2014)
Toyota Aygo
(1406- )3D

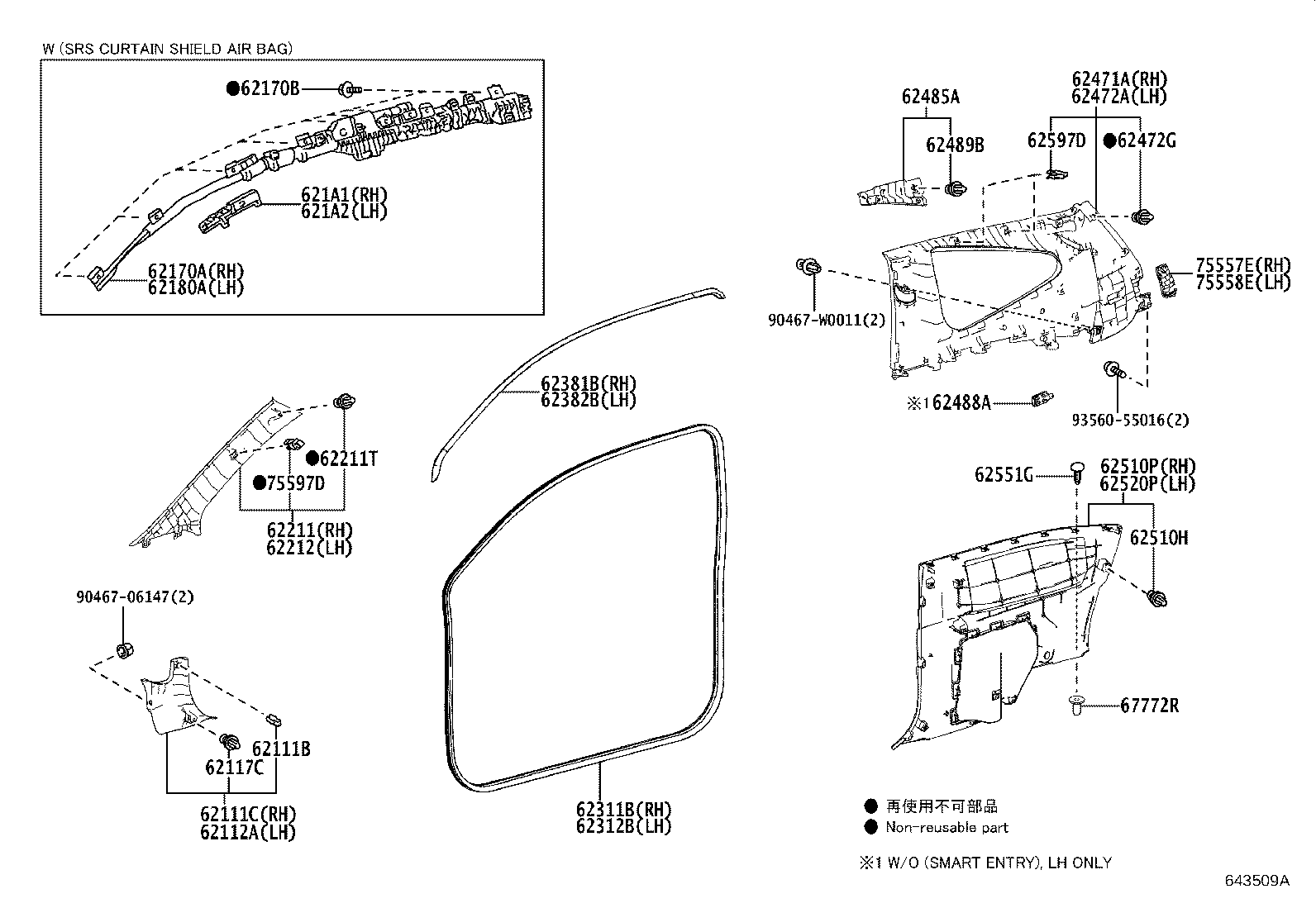

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90468-05077 |
KGB40,PAB40 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-0H030B0 |
KGB40,PAB40..LV1 PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-0H020B0 |
KGB40,PAB40..LV1 PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-W0005 |
KGB40,PAB40 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0H050 |
KGB40..LHD..3D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
1 | ||
| 62170-0H050 |
KGB40..3D..5F..LV1 VSC-WITHOUT |
1 | ||
| 62170-0H090 |
KGB40,PAB40..3D |
1 | ||
| 62170-0H050 |
KGB40,PAB40..3D |
1 | ||
| 62170-0H090 |
KGB40..LHD..3D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
1 | ||
| 62170-0H090 |
KGB40..3D..5F..LV1 VSC-WITHOUT |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-W0078 |
KGB40,PAB40 |
16 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0H050 |
KGB40..LHD..3D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
1 | ||
| 62180-0H050 |
KGB40..3D..5F..LV1 VSC-WITHOUT |
1 | ||
| 62180-0H090 |
KGB40..LHD..3D..5F REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
1 | ||
| 62180-0H050 |
KGB40,PAB40..3D |
1 | ||
| 62180-0H090 |
KGB40..3D..5F..LV1 VSC-WITHOUT |
1 | ||
| 62180-0H090 |
KGB40,PAB40..3D |
1 | ||
| 621A1 - RETAINER, CURTAIN SHIELD AIR BAG, NO.1 RH | ||||
| 621A1-0H010 |
KGB40,PAB40 |
1 | ||
| 621A2 - RETAINER, CURTAIN SHIELD AIR BAG, NO.1 LH | ||||
| 621A2-0H010 |
KGB40,PAB40 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-0H070B0 |
KGB40..5D..5F..LV1;KGB40..LHD..3D..5F..LV1 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT,LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62211-0H080B0 |
KGB40,PAB40..LV1 LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-W0005 |
KGB40,PAB40 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-0H060B0 |
KGB40,PAB40..LV1 LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62212-0H050B0 |
KGB40..5D..5F..LV1;KGB40..LHD..3D..5F..LV1 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT,LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-0H060 |
KGB40,PAB40..3D |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62311-0H060 |
KGB40,PAB40..3D |
1 | ||
| 62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-0H020 |
KGB40,PAB40..3D |
1 | ||
| 62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-0H020 |
KGB40,PAB40..3D |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-0H200B0 |
KGB40,PAB40..3D..LV1 LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62471-0H190B0 |
KGB40..LHD..3D..5F..LV1 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT,LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-0H200B0 |
KGB40,PAB40..3D..LV1 LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62472-0H190B0 |
KGB40..LHD..3D..5F..LV1 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT,LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 90467-W0005 |
KGB40,PAB40..3D |
18 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62486-0H020 |
KGB40,PAB40..3D LH |
1 | ||
| 62485-0H020 |
KGB40,PAB40..3D RH |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62487-0H010B0 |
KGB40,PAB40..LV1 LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62489B - CLIP, ROOF SIDE INNER GARNISH | ||||
| 90467-W0005 |
KGB40,PAB40..3D |
6 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-W0005 |
KGB40,PAB40..3D |
12 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-0H020B0 |
KGB40,PAB40..3D..LV1 PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-0H020B0 |
KGB40,PAB40..3D..LV1 PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10034C0 |
KGB40,PAB40 BLACK |
2 | ||
| 62597D - CLIP | ||||
| 90467-10203 |
KGB40,PAB40..3D |
4 | ||
| 67772R - CAP, DOOR TRIM RETAINER | ||||
| 67772-44010 |
KGB40,PAB40 |
2 | ||
| 75557E - COVER, ROOF SIDE GARNISH END, RH | ||||
| 75557-0H010B0 |
KGB40,PAB40..3D..LV1 LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 75558E - COVER, ROOF SIDE GARNISH END, LH | ||||
| 75558-0H010B0 |
KGB40,PAB40..3D..LV1 LIGHT GREY,TRIM0#,1#,2#,4#,8# |
1 | ||
| 75597D - CLIP, ROOF SIDE GARNISH | ||||
| 75597-05010 |
KGB40,PAB40 |
2 | ||
| 75597-0H010 |
KGB40..5D..5F..LV1;KGB40..LHD..3D..5F..LV1 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&VSC-WITHOUT |
2 | ||
| Common parts | ||||
| 90467-06147 | ||||
| 90467-W0011 | ||||
| 93560-55016 | ||||
