KGB40L-AGGGKW (2018)
Toyota Aygo
Production
May 2018
-
Sep 9999
Engine
1KRFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1805- )

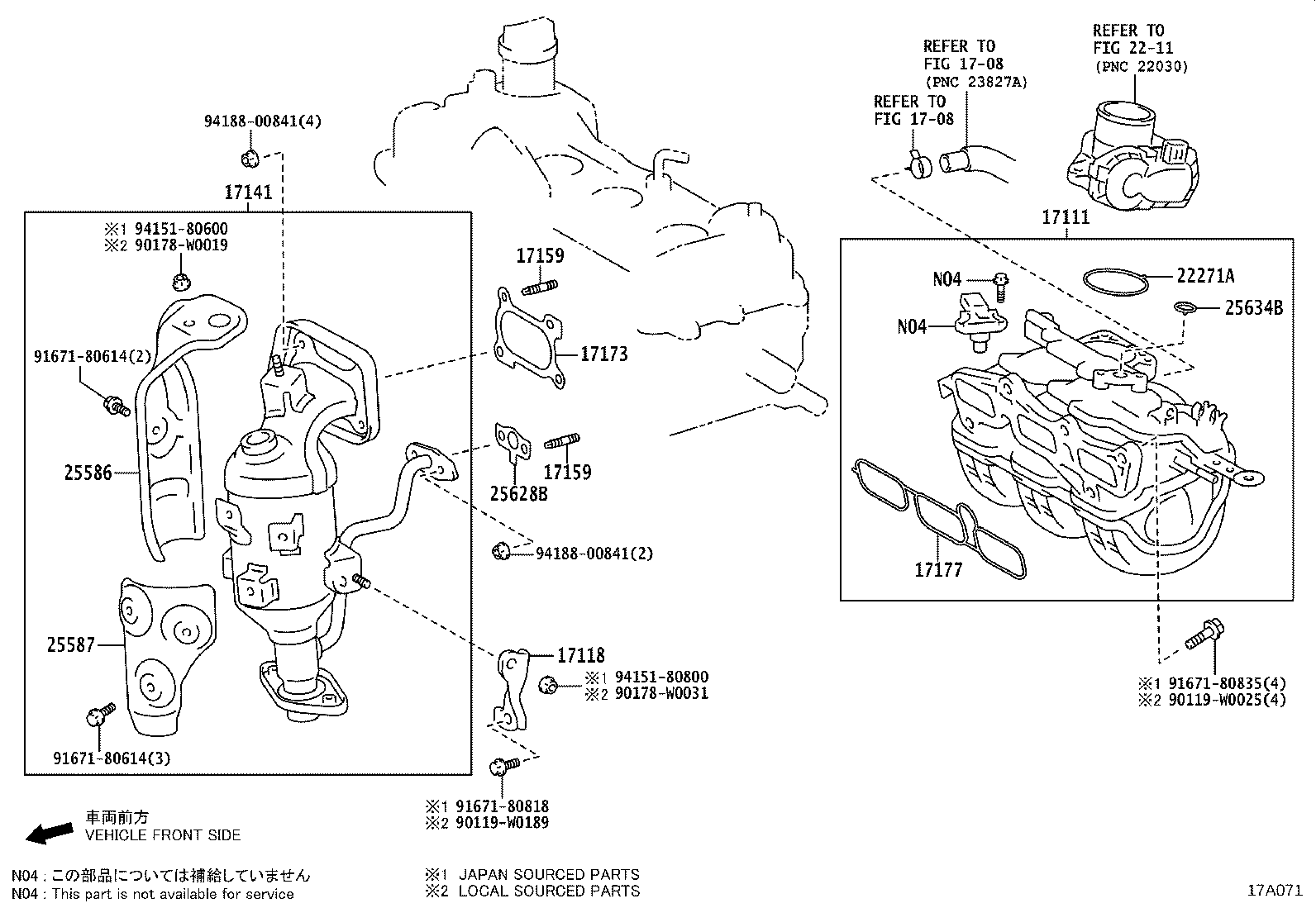

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-0Q050 |
1KRFE..KGB40..3D |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0Q020 |
1KRFE..KGB40..3D |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-0Q110 |
1KRFE..KGB40..3D *114=TOYOTA/0Q110/Y |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08055 |
1KRFE..KGB40..3D |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08055 |
1KRFE..KGB40..3D |
6 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0Q030 |
1KRFE..KGB40..3D |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0Q040 |
1KRFE..KGB40..3D |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-0Q020 |
1KRFE..KGB40..3D |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-0Q050 |
1KRFE..KGB40..3D |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-40010 |
1KRFE..KGB40..3D |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-0Q010 |
1KRFE..KGB40..3D (L) |
1 | ||
| 25628-40020 |
1KRFE..KGB40..3D (J) |
1 | ||
| 25634B - GASKET, EGR PIPE | ||||
| 25634-40010 |
1KRFE..KGB40..3D |
1 | ||
| Common parts | ||||
| 90119-W0025 | ||||
| 90119-W0189 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
| 91671-80835 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
