8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ZZT251R-AWMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006

Engine 1ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0301- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0301- )ZZT25#..RHD

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ZZT25#..ENTRY W/O(VSC)	01/2003 - 04/2006	1
88374-30010	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88374-30010	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 04/2006	1
88374-30010	ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O	01/2003 - 04/2006	1
88374C - VALVE, SERVICE, NO.2
88374-30010	ZZT25#..RHD..ENTRY W/O(VSC)	01/2003 - 12/2005	1
88374-30010	AZT251;AZT250..SED;ZZT251..RHD..TEC;ADT251,ZZT250..RHD;ZZT251..RHD..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4	01/2003 - 12/2005	1
88374-30010	ZZT251..RHD..LB..4FC..ENTRY;ADT251,ZZT25#..RHD..MTM..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2005	1
88374-30010	ZZT251..RHD..LB..4FC..ENTRY;ADT251,ZZT25#..RHD..MTM..ENTRY AIR CONDITIONER-W/O	01/2003 - 12/2005	1
88374-30010	ZZT25#..RHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2005	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ZZT25#..ENTRY W/O(VSC)	01/2003 - 04/2006	1
88375-30290	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88375-30290	ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O	01/2003 - 04/2006	1
88375-30290	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 04/2006	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	CDT250;ADT251..LHD;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY	01/2003 - 04/2006	1
88375-30280	ZZT25#..ENTRY;CDT250..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05090	ZZT25#..RHD	01/2003 - 01/2004	1
88450-05090	CDT250,ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88450-05091	ZZT25#..RHD	01/2004 - 04/2006	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	AZT25#,ZZT25#	01/2003 - 12/2003	2
88467-12180	AZT25#,ZZT25#	01/2004 - 04/2006	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	AZT25#,ZZT25#	01/2003 - 12/2003	2
88467-12180	AZT25#,ZZT25#	01/2004 - 04/2006	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	AZT25#,ZZT25#	01/2003 - 12/2003	2
88469-52010	AZT25#,ZZT25#	01/2004 - 04/2006	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	AZT25#,ZZT25#	01/2003 - 12/2003	2
88469-52010	AZT25#,ZZT25#	01/2004 - 04/2006	2
88474 - DRYER, COOLER
88474-17010	AZT25#,ZZT25#	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2003	1
88474-17010	AZT25#,ZZT25#	01/2003 - 12/2003	1
88474-17010	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2003	1
88474-17010	ZZT25#..ENTRY W/O(VSC)	01/2003 - 12/2003	1
88474-17010	ZZT25#..ENTRY AIR CONDITIONER-W/O	01/2003 - 12/2003	1
88474-17010	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY AIR CONDITIONER-W/O	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY W/O(VSC)	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2004 - 04/2006	1
88706A - TUBE SUB-ASSY, LIQUID, A
88716-05370	ZZT25#..RHD	01/2003 - 12/2005	1
88706-05100	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88716-05370	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2005	1
88716-05370	ZZT25#..RHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2005	1
88716-05370	ZZT25#..RHD..ENTRY W/O(VSC)	01/2003 - 12/2005	1
88716-05370	ZZT25#..RHD..ENTRY AIR CONDITIONER-W/O	01/2003 - 12/2005	1
88716-05371	ZZT25#..RHD	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY AIR CONDITIONER-W/O	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY W/O(VSC)	12/2005 - 04/2006	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-05240	ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88703-05240	ZZT25#	01/2003 - 11/2005	1
88703-05241	ZZT25#	12/2005 - 04/2006	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05270	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88712-05270	ZZT25#..RHD	01/2003 - 04/2006	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	CDT250,ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88719-40020	CDT250;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY	01/2003 - 04/2006	1
Common parts
88688-05190
88688-05231
88718-02190
88718-02200
88718-02440
88718-02450
88718-02480
88718-1A720
88718-2D140
88718-2D150
88899-52050
90091-20512
90099-00259
90105-W0011
90105-W0033
90119-06311
90178-W0022
Linked diagrams
8714
8719

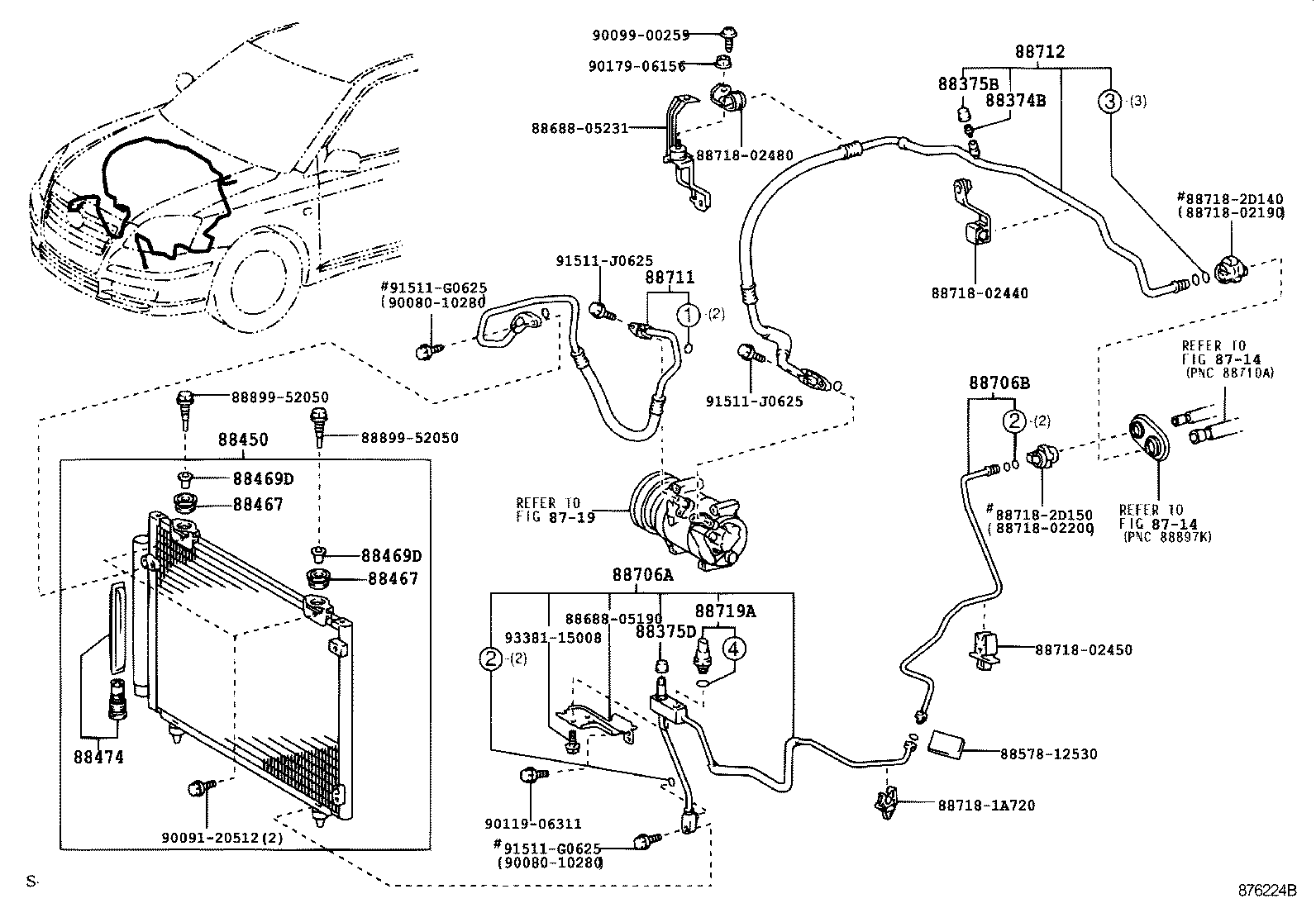

ILLUST NO. 1 OF 2(0301-0503)ZZT25#..RHD

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ZZT25#..ENTRY W/O(VSC)	01/2003 - 04/2006	1
88374-30010	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88374-30010	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 04/2006	1
88374-30010	ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O	01/2003 - 04/2006	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ZZT25#..ENTRY W/O(VSC)	01/2003 - 04/2006	1
88375-30290	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88375-30290	ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O	01/2003 - 04/2006	1
88375-30290	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 04/2006	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	CDT250;ADT251..LHD;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY	01/2003 - 04/2006	1
88375-30280	ZZT25#..ENTRY;CDT250..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05090	ZZT25#..RHD	01/2003 - 01/2004	1
88450-05090	CDT250,ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88450-05091	ZZT25#..RHD	01/2004 - 04/2006	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	AZT25#,ZZT25#	01/2003 - 12/2003	2
88467-12180	AZT25#,ZZT25#	01/2004 - 04/2006	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	AZT25#,ZZT25#	01/2003 - 12/2003	2
88467-12180	AZT25#,ZZT25#	01/2004 - 04/2006	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	AZT25#,ZZT25#	01/2003 - 12/2003	2
88469-52010	AZT25#,ZZT25#	01/2004 - 04/2006	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	AZT25#,ZZT25#	01/2003 - 12/2003	2
88469-52010	AZT25#,ZZT25#	01/2004 - 04/2006	2
88474 - DRYER, COOLER
88474-17010	AZT25#,ZZT25#	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2003	1
88474-17010	AZT25#,ZZT25#	01/2003 - 12/2003	1
88474-17010	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2003	1
88474-17010	ZZT25#..ENTRY W/O(VSC)	01/2003 - 12/2003	1
88474-17010	ZZT25#..ENTRY AIR CONDITIONER-W/O	01/2003 - 12/2003	1
88474-17010	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY AIR CONDITIONER-W/O	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY W/O(VSC)	01/2004 - 04/2006	1
88474-17010	ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2004 - 04/2006	1
88706A - TUBE SUB-ASSY, LIQUID, A
88716-05370	ZZT25#..RHD	01/2003 - 12/2005	1
88706-05100	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88716-05370	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2005	1
88716-05370	ZZT25#..RHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	01/2003 - 12/2005	1
88716-05370	ZZT25#..RHD..ENTRY W/O(VSC)	01/2003 - 12/2005	1
88716-05370	ZZT25#..RHD..ENTRY AIR CONDITIONER-W/O	01/2003 - 12/2005	1
88716-05371	ZZT25#..RHD	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY AIR CONDITIONER-W/O	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP	12/2005 - 04/2006	1
88716-05371	ZZT25#..RHD..ENTRY W/O(VSC)	12/2005 - 04/2006	1
88706B - TUBE SUB-ASSY, LIQUID, B
88716-05440	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-05240	ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88703-05240	ZZT25#	01/2003 - 11/2005	1
88703-05241	ZZT25#	12/2005 - 04/2006	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05270	ZZT25#..RHD..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88712-05270	ZZT25#..RHD	01/2003 - 04/2006	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	CDT250,ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP	01/2003 - 03/2005	1
88719-40020	CDT250;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY	01/2003 - 04/2006	1
Common parts
88578-12530
88688-05190
88688-05231
88718-02190
88718-02200
88718-02440
88718-02450
88718-02480
88718-1A720
88718-2D140
88718-2D150
88899-52050
90080-10280
90091-20512
90099-00259
90119-06311
90179-06156
91511-G0625
91511-J0625
93381-15008
Linked diagrams
8714
8719
