ZZT251R-AWMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )ADT25#,AZT25#,CDT250..RHD ; (0402-)ZZT25#..RHD

Click highlighted areas on diagram

diagram 78010F 78111 78111C 9011906683 9616000600
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-13022

ZZT25#..RHD

 1
78010-13023

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-32020

ZZT25#..RHD

 1
78111-05040

ZZT25#..RHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ZZT251..RHD;AZT250..4FC..D4;ZZT251..LHD..5F;ADT251,AZT25#,CDT250,ZZT250..5F,5FC,6F

 1
Common parts
90119-06683
96160-00600

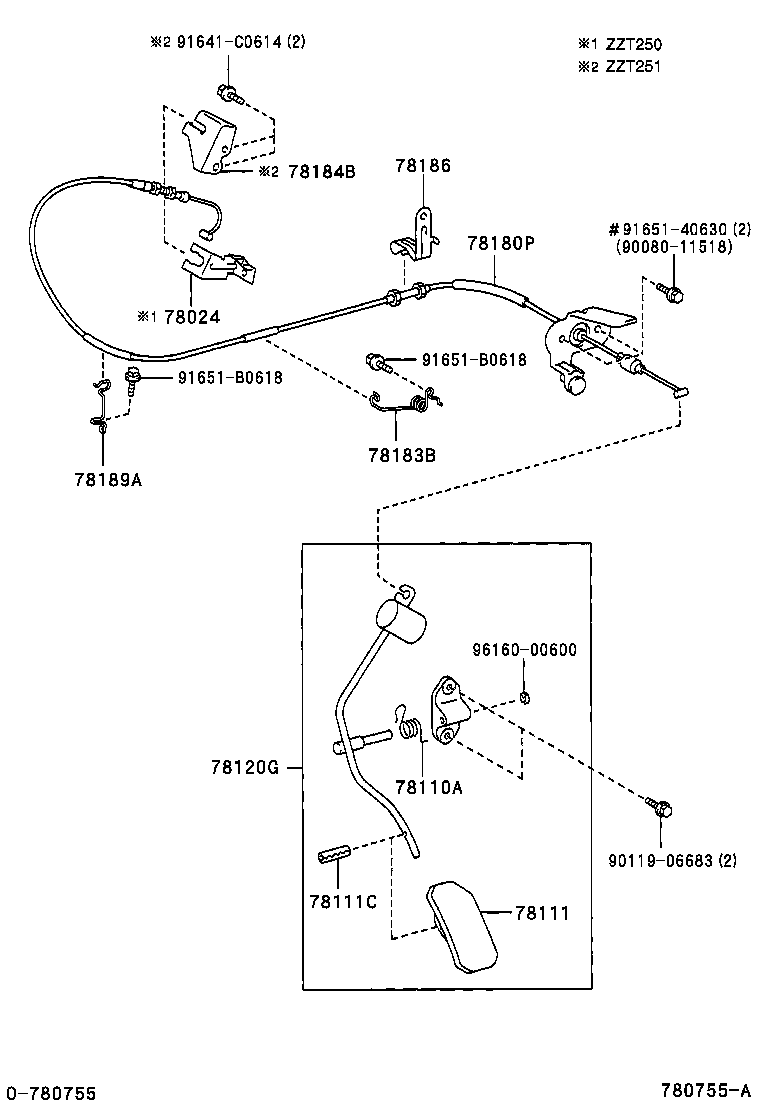

(0301-0402)ZZT25#..RHD

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111C 78120G 78180P 78183B 78184B 78186 78189A 9008011518 9011906683 91641C0614 9165140630 91651B0618 91651B0618 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03307

ZZT25#..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-32020

ZZT25#..RHD

 1
78111-05040

ZZT25#..RHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ZZT251..RHD;AZT250..4FC..D4;ZZT251..LHD..5F;ADT251,AZT25#,CDT250,ZZT250..5F,5FC,6F

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-05210

ZZT251..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-05090

ZZT251..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-13010

ZZT25#..RHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12360

ZZT251

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-20180

ZZT25#..RHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100

ZZT25#

 1
Common parts
90080-11518
90119-06683
91641-C0614
91651-40630
91651-B0618
96160-00600
