ZZT251R-AWMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0311)HTWC

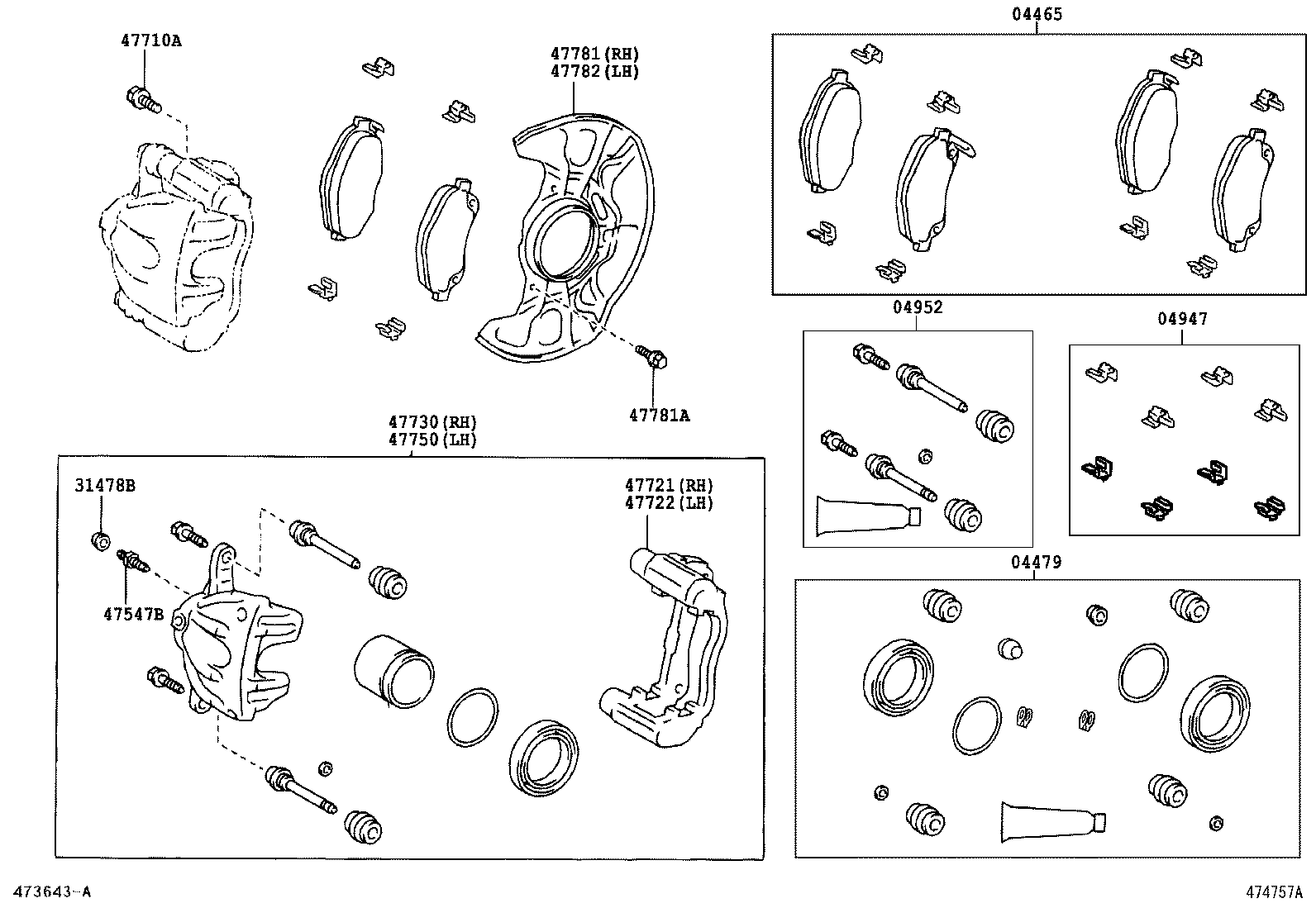

Click highlighted areas on diagram

diagram 04465 04479 04947 04952 31478B 47547B 47710A 47721 47722 47730 47750 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-05140

ZZT250;ZZT251..TEC;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

MARK PAGID 660

 1
04465-05210

ZZT250;ZZT251..TEC;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

MARK PAGID 660

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-05010

ZZT250;ZZT251..TEC;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
04478-05090

ZZT251..TEC;ADT251,ZZT250;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;CDT250..RHD..WG..TEC;ZZT251..RHD..LB..4FC..ENTRY

 1
04479-05050

AZT25#,CDT250,ZZT25#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-05040

ADT251,AZT25#,CDT250,ZZT25#

 1
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-09020

ADT251,AZT25#,CDT250,ZZT25#

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-05030

ADT251,AZT25#,CDT250,ZZT25#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-05020

ADT251,AZT25#,CDT250,ZZT25#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ADT251,AZT25#,CDT250,ZZT25#

*12-1.25PX29.5-23

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-05050

AZT250,ZZT25#..HTWC

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-05020

AZT250,ZZT25#..HTWC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-05050

AZT250,ZZT25#..HTWC

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-05050

AZT250,ZZT25#..HTWC

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-05030

AZT25#,CDT250,ZZT25#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90080-11525

ADT251,AZT25#,CDT250,ZZT25#

(L)

 6
90119-06227

ADT251,AZT25#,CDT250,ZZT25#

(J)

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-05030

AZT25#,CDT250,ZZT25#

 1

(0311- )HTWC

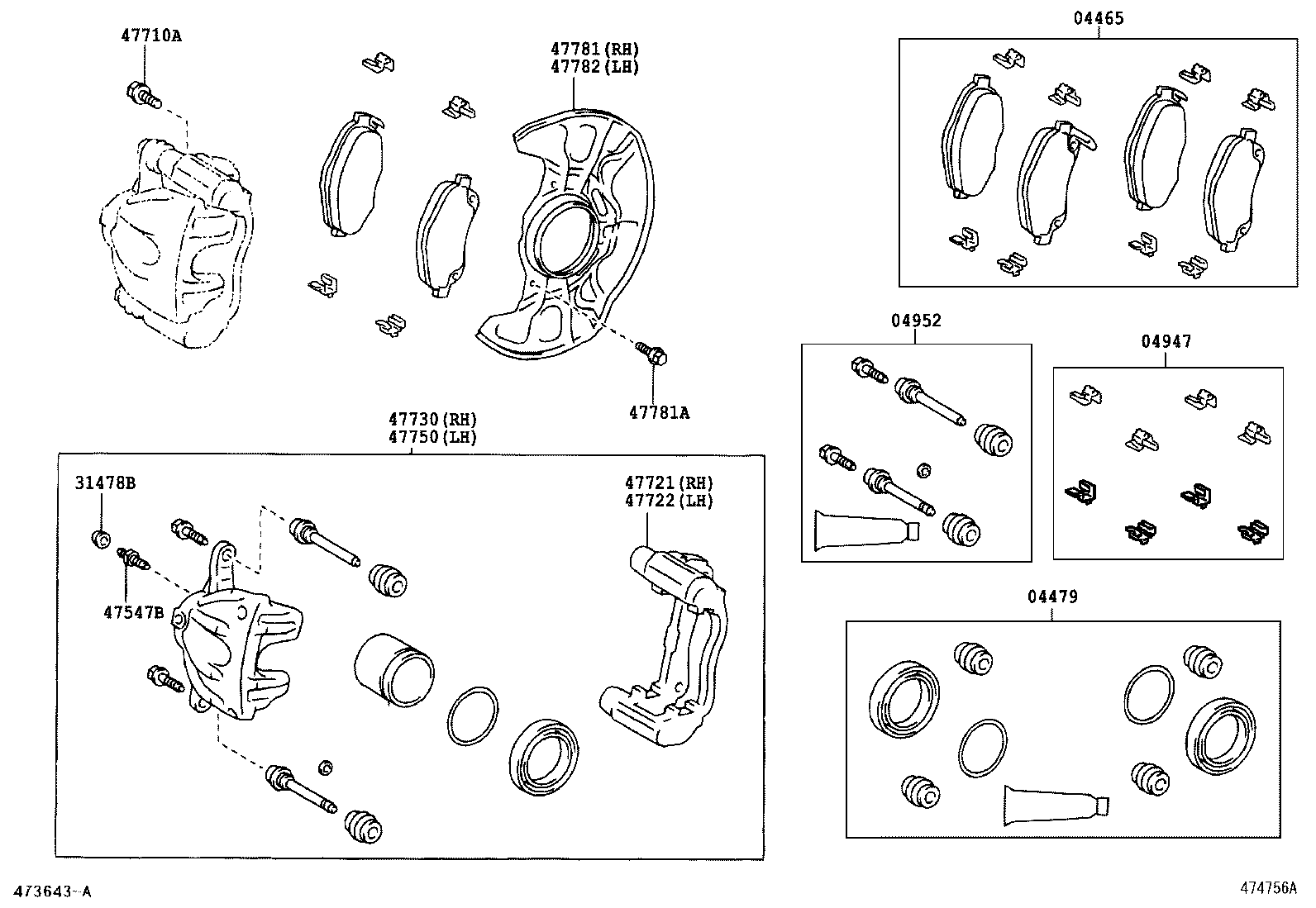

Click highlighted areas on diagram

diagram 04465 04479 04947 04952 31478B 47547B 47710A 47721 47722 47730 47750 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-05140

ZZT250;ZZT251..TEC;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

MARK PAGID 660

 1
04465-05210

ZZT250;ZZT251..TEC;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

MARK PAGID 660

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-05010

ZZT250;ZZT251..TEC;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
04478-05090

ZZT251..TEC;ADT251,ZZT250;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;CDT250..RHD..WG..TEC;ZZT251..RHD..LB..4FC..ENTRY

 1
04479-05050

AZT25#,CDT250,ZZT25#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-05040

ADT251,AZT25#,CDT250,ZZT25#

 1
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-09020

ADT251,AZT25#,CDT250,ZZT25#

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-05030

ADT251,AZT25#,CDT250,ZZT25#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-05020

ADT251,AZT25#,CDT250,ZZT25#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ADT251,AZT25#,CDT250,ZZT25#

*12-1.25PX29.5-23

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-05050

AZT250,ZZT25#..HTWC

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-05020

AZT250,ZZT25#..HTWC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-05050

AZT250,ZZT25#..HTWC

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-05050

AZT250,ZZT25#..HTWC

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-05030

AZT25#,CDT250,ZZT25#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90080-11525

ADT251,AZT25#,CDT250,ZZT25#

(L)

 6
90119-06227

ADT251,AZT25#,CDT250,ZZT25#

(J)

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-05030

AZT25#,CDT250,ZZT25#

 1
