ZZT251R-AWMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0604)1ZZFE,3ZZFE

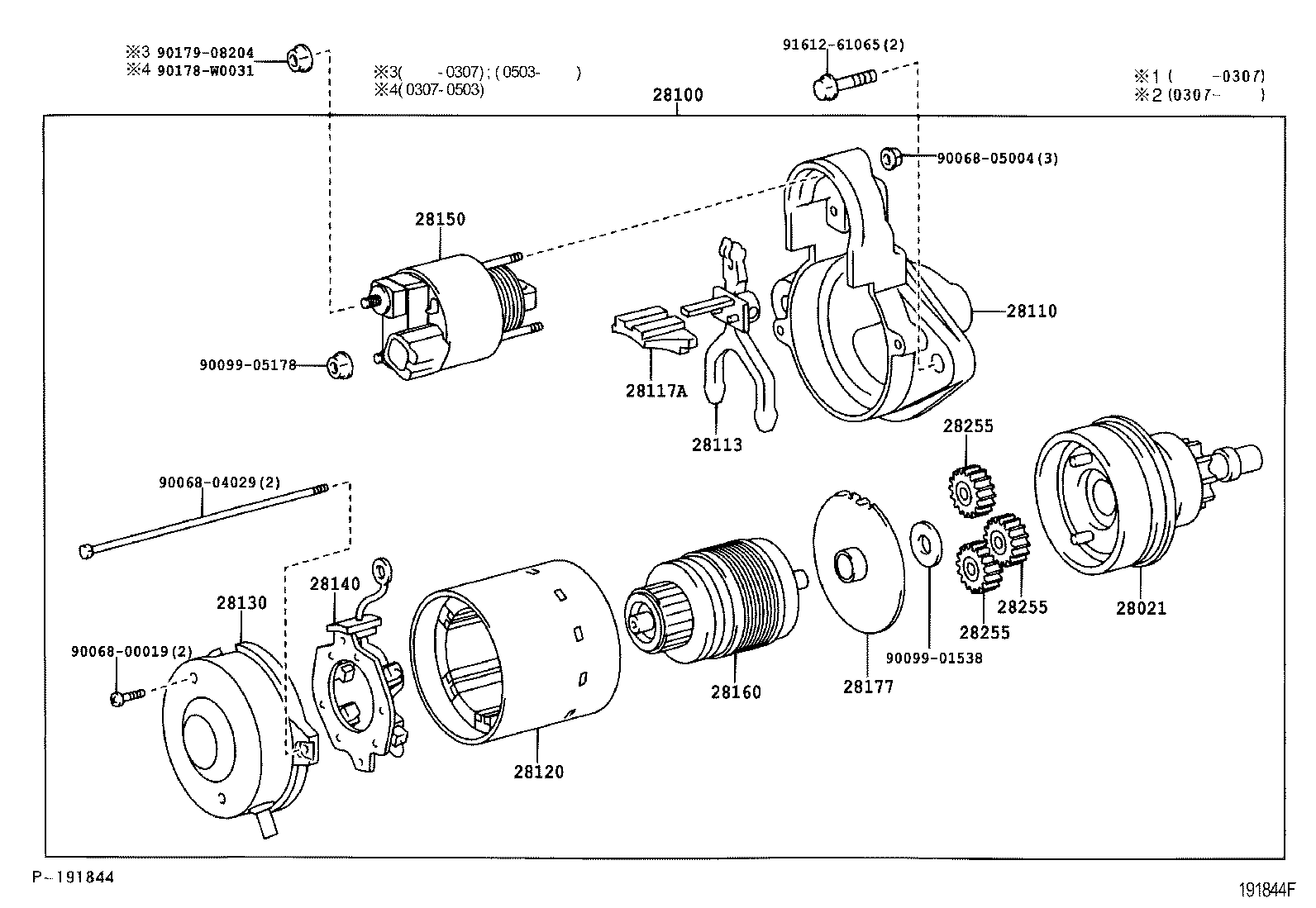

Click highlighted areas on diagram

12V 1.3KW

diagram 28021 28100 28110 28113 28117A 28120 28130 28140 28150 28160 28177 28255 28255 28255 9006800019 9006804029 9006805004 9009901538 9009905178 90178W0031 9017908204 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28100 - STARTER ASSY
28100-0D090

1ZZFE,3ZZFE..ZZT25#

12V 1.3KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28117A - SEAL, RUBBER
28117-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28120 - YOKE ASSY, STARTER
28120-0D090

1AZFSE..AZT250..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28226-0D090

1ZZFE,3ZZFE..ZZT25#;1AZFSE,2AZFSE..AZT25#..ATM

 1
28160 - ARMATURE ASSY, STARTER
28160-0D090

1AZFSE..AZT250..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28255 - GEAR, PLANET
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255 - GEAR, PLANET
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255 - GEAR, PLANET
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
Common parts
90068-00019
90068-04029
90068-05004
90099-01538
90099-05178
90178-W0031
90179-08204
91612-61065
