ZZT251R-AWMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0512)1ZZFE,3ZZFE

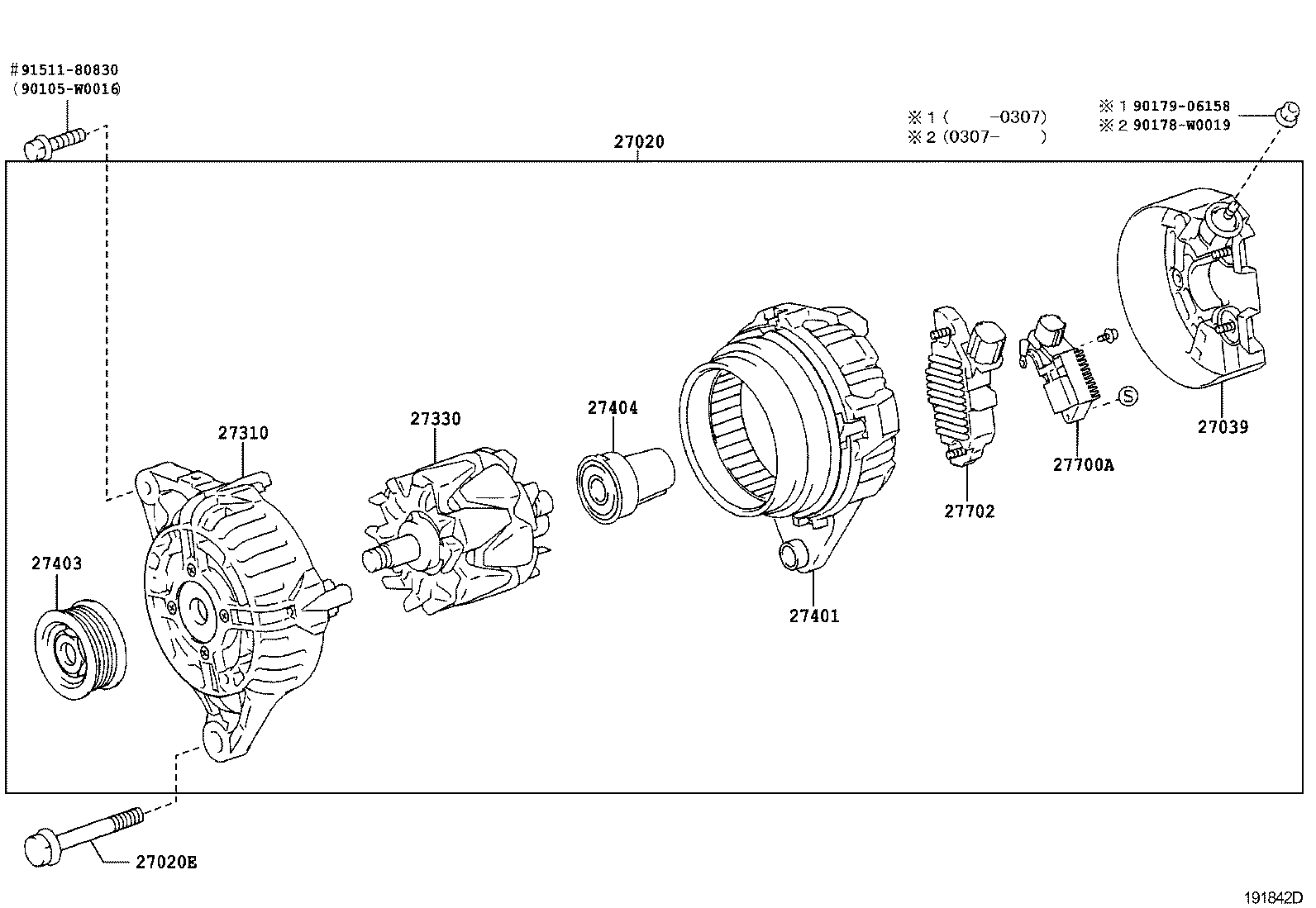

Click highlighted areas on diagram

14V 80A,90A

diagram 27020 27020E 27039 27310 27330 27401 27403 27404 27700A 27702 90105W0016 90178W0019 9017906158 9151180830
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,W(FRONT SEAT HEATER),BOSCH

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,BOSCH

 1
27060-0D030

1ZZFE,3ZZFE..ZZT25#

12V 80A

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,W(FRONT SEAT HEATER)&EUROPE-COLD SPEC,BOSCH

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,EUROPE-COLD SPEC,BOSCH

 1
27060-0D170

1ZZFE,3ZZFE..ZZT25#

12V 90A,DENSO

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1ZZFE,3ZZFE..ZZT25#

 1
27039 - COVER, ALTERNATOR REAR END
27039-0D030

1ZZFE,3ZZFE..ZZT25#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0D020

1ZZFE,3ZZFE..ZZT25#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0D110

1ZZFE,3ZZFE..ZZT25#

EUROPE-COLD SPEC

 1
27330-0D110

3ZZFE..ZZT250;1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY

 1
27330-0D110

1ZZFE,3ZZFE..ZZT25#

W(FRONT SEAT HEATER)

 1
27330-0D020

1ZZFE,3ZZFE..ZZT25#

 1
27330-0D110

1ZZFE,3ZZFE..ZZT25#

W(FRONT SEAT HEATER)&EUROPE-COLD SPEC

 1
27330-0J020

1ZZFE,3ZZFE..ZZT25#

 1
27401 - STATOR SUB-ASSY ALTERNATOR W/RECTIFIER
27401-0D010

1ZZFE,3ZZFE..ZZT25#

 1
27403 - PULLEY SET, ALTERNATOR
27403-0D010

1ZZFE,3ZZFE..ZZT25#

 1
27404 - BEARING SET, ALTERNATOR
27404-0D010

3ZZFE..ZZT250;1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY

 1
27700A - REGULATOR ASSY, GENERATOR
27700-27070

1ZZFE,3ZZFE..ZZT25#

 1
27702 - REGULATOR SUB-ASSY GENERATOR W/BRUSH
27702-0D010

3ZZFE..ZZT250;1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY

 1
Common parts
90105-W0016
90178-W0019
90179-06158
91511-80830

(0512- )1ZZFE,3ZZFE

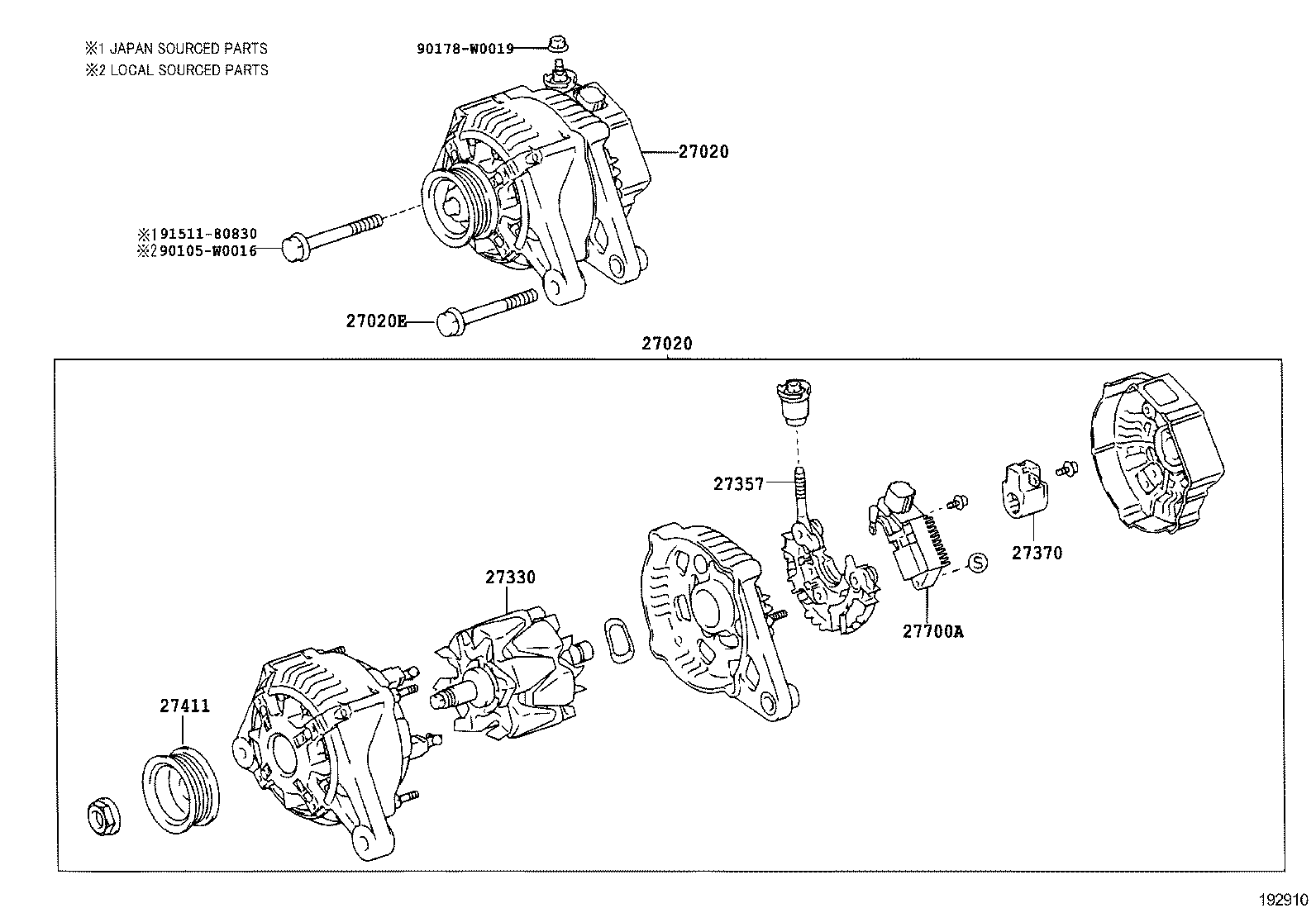

Click highlighted areas on diagram

12V 90A

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 90105W0016 90178W0019 9151180830
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,W(FRONT SEAT HEATER),BOSCH

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,BOSCH

 1
27060-0D030

1ZZFE,3ZZFE..ZZT25#

12V 80A

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,W(FRONT SEAT HEATER)&EUROPE-COLD SPEC,BOSCH

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,EUROPE-COLD SPEC,BOSCH

 1
27060-0D170

1ZZFE,3ZZFE..ZZT25#

12V 90A,DENSO

 1
27020 - ALTERNATOR ASSY
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,W(FRONT SEAT HEATER),BOSCH

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,BOSCH

 1
27060-0D030

1ZZFE,3ZZFE..ZZT25#

12V 80A

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,W(FRONT SEAT HEATER)&EUROPE-COLD SPEC,BOSCH

 1
27060-0D140

1ZZFE,3ZZFE..ZZT25#

12V 90A,EUROPE-COLD SPEC,BOSCH

 1
27060-0D170

1ZZFE,3ZZFE..ZZT25#

12V 90A,DENSO

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1ZZFE,3ZZFE..ZZT25#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0D110

1ZZFE,3ZZFE..ZZT25#

EUROPE-COLD SPEC

 1
27330-0D110

3ZZFE..ZZT250;1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY

 1
27330-0D110

1ZZFE,3ZZFE..ZZT25#

W(FRONT SEAT HEATER)

 1
27330-0D020

1ZZFE,3ZZFE..ZZT25#

 1
27330-0D110

1ZZFE,3ZZFE..ZZT25#

W(FRONT SEAT HEATER)&EUROPE-COLD SPEC

 1
27330-0J020

1ZZFE,3ZZFE..ZZT25#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22050

1ZZFE,3ZZFE..ZZT25#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1ZZFE,3ZZFE..ZZT25#

 1
27411 - PULLEY, ALTERNATOR
27411-0J010

1ZZFE,3ZZFE..ZZT25#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-27070

1ZZFE,3ZZFE..ZZT25#

 1
Common parts
90105-W0016
90178-W0019
91511-80830
