ZZT251R-AWMEKW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

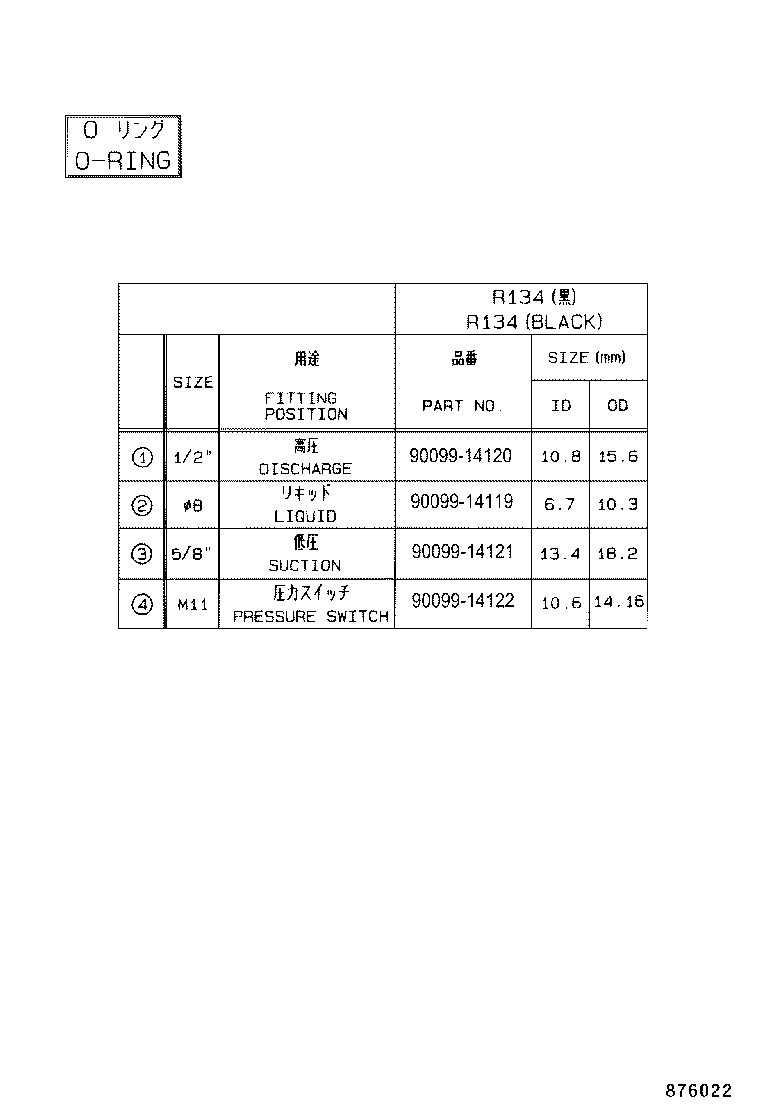

ILLUST NO. 2 OF 2(0301- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

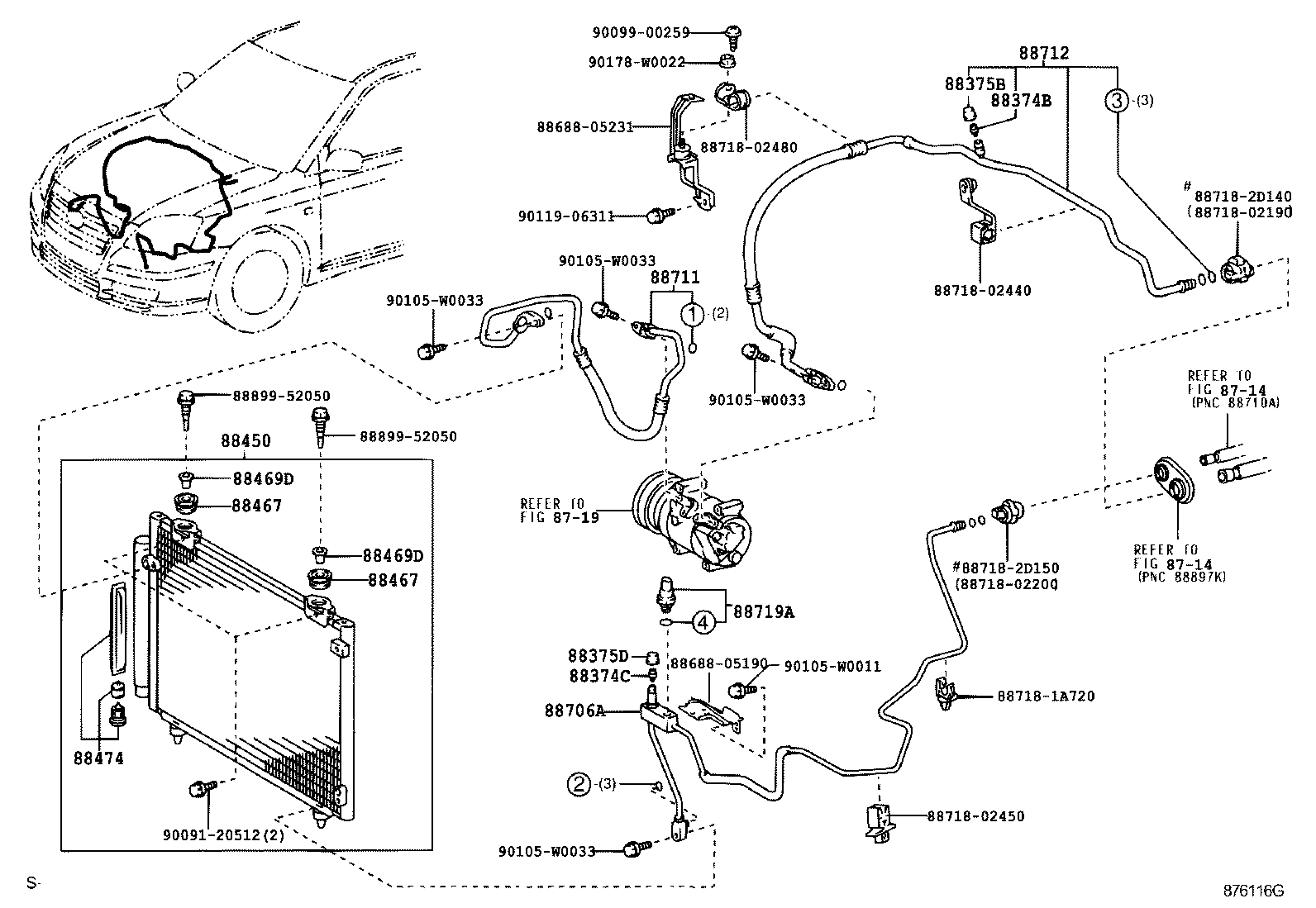

ILLUST NO. 1 OF 2(0301- )ZZT25#..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88469D 88469D 88474 8868805190 8868805231 88706A 88711 88712 8871802190 8871802200 8871802440 8871802450 8871802480 887181A720 887182D140 887182D150 88719A 8889952050 8889952050 9009120512 9009900259 90105W0011 90105W0033 90105W0033 90105W0033 90105W0033 9011906311 90178W0022
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AZT25#,ZZT25#;ADT251,CDT250..RHD

 1
88374-30010

AZT25#;ADT25#,ZZT25#..RHD

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AZT251;AZT250..SED;ZZT251..RHD..TEC;ADT251,ZZT250..RHD;ZZT251..RHD..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AZT25#,ZZT25#;ADT251,CDT250..RHD

 1
88375-30290

AZT25#;ADT25#,ZZT25#..RHD

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

CDT250;ADT251..LHD;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY

 1
88375-30280

ADT25#,AZT25#,ZZT25#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05090

ZZT25#..RHD

 1
88450-05091

ZZT25#..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

AZT25#,ZZT25#

 2
88467-12180

AZT25#,ZZT25#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

AZT25#,ZZT25#

 2
88467-12180

AZT25#,ZZT25#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

AZT25#,ZZT25#

 2
88469-52010

AZT25#,ZZT25#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

AZT25#,ZZT25#

 2
88469-52010

AZT25#,ZZT25#

 2
88474 - DRYER, COOLER
88474-17010

AZT25#,ZZT25#

 1
88474-17010

ADT25#,AZT25#,ZZT25#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88716-05370

ZZT25#..RHD

 1
88716-05371

ZZT25#..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-05240

ZZT25#

 1
88703-05241

ZZT25#

 1
88703-05242

ZZT25#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05270

ZZT25#..RHD

 1
88712-05270

ZZT25#..RHD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

CDT250;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY

 1
88719-40020

ADT25#,AZT25#,ZZT25#

 1
88719-33020

ADT25#,AZT25#,ZZT25#

 1
Common parts
88688-05190
88688-05231
88718-02190
88718-02200
88718-02440
88718-02450
88718-02480
88718-1A720
88718-2D140
88718-2D150
88899-52050
90091-20512
90099-00259
90105-W0011
90105-W0033
90119-06311
90178-W0022
