ZZT251R-AWMEKW (2006)
Toyota Avensis
ILLUST NO. 4 OF 9(0301- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-05460 |
ADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC) |
1 | ||
| 82151-05580 |
ADT25#,AZT25#,ZZT251..RHD..(PAG,TEC) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-05450 |
ADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC) |
1 | ||
| 82152-05570 |
ADT25#,AZT25#,ZZT251..RHD..(PAG,TEC) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-05200 |
ADT25#,AZT25#,ZZT251..RHD..(PAG,TEC) |
1 | ||
| 82153-05160 |
ADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC) |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-05160 |
ADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC) |
1 | ||
| 82154-05200 |
ADT25#,AZT25#,ZZT251..RHD..(PAG,TEC) |
1 | ||
ILLUST NO. 1 OF 9(0301- )ZZT25#..RHD

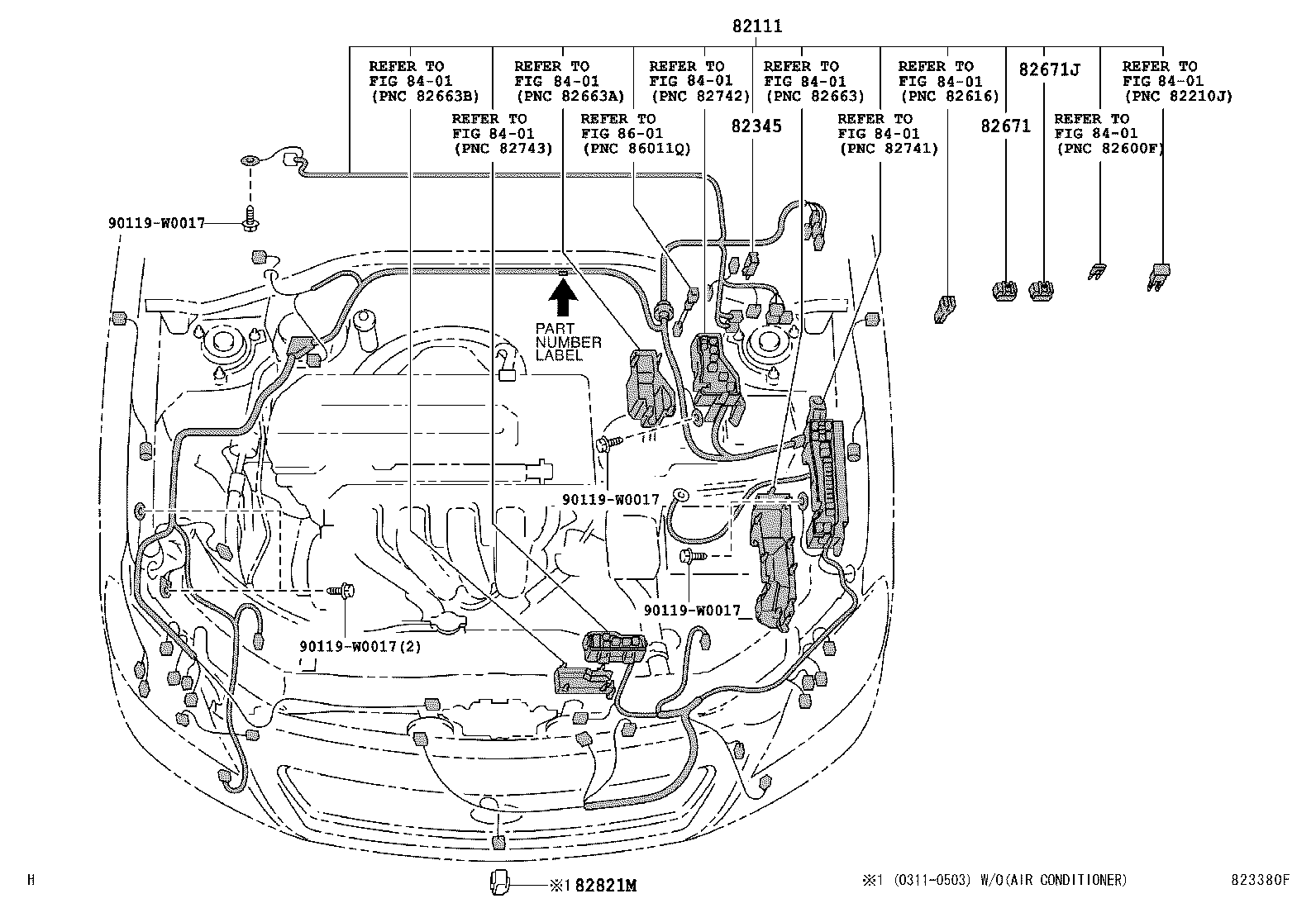

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-05330 |
ZZT25#..RHD |
1 | ||
| 82115-05340 |
ZZT251..RHD..(ELEGT,TEC) HEAD LAMP-DISCHARGE |
1 | ||
| 82111-05B80 |
ZZT251..RHD |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) |
1 | ||
| 82345-12030 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) |
1 | ||
| 82671-30360 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) |
1 | ||
| 82671-30370 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 2 OF 9(0301- )ZZT25#

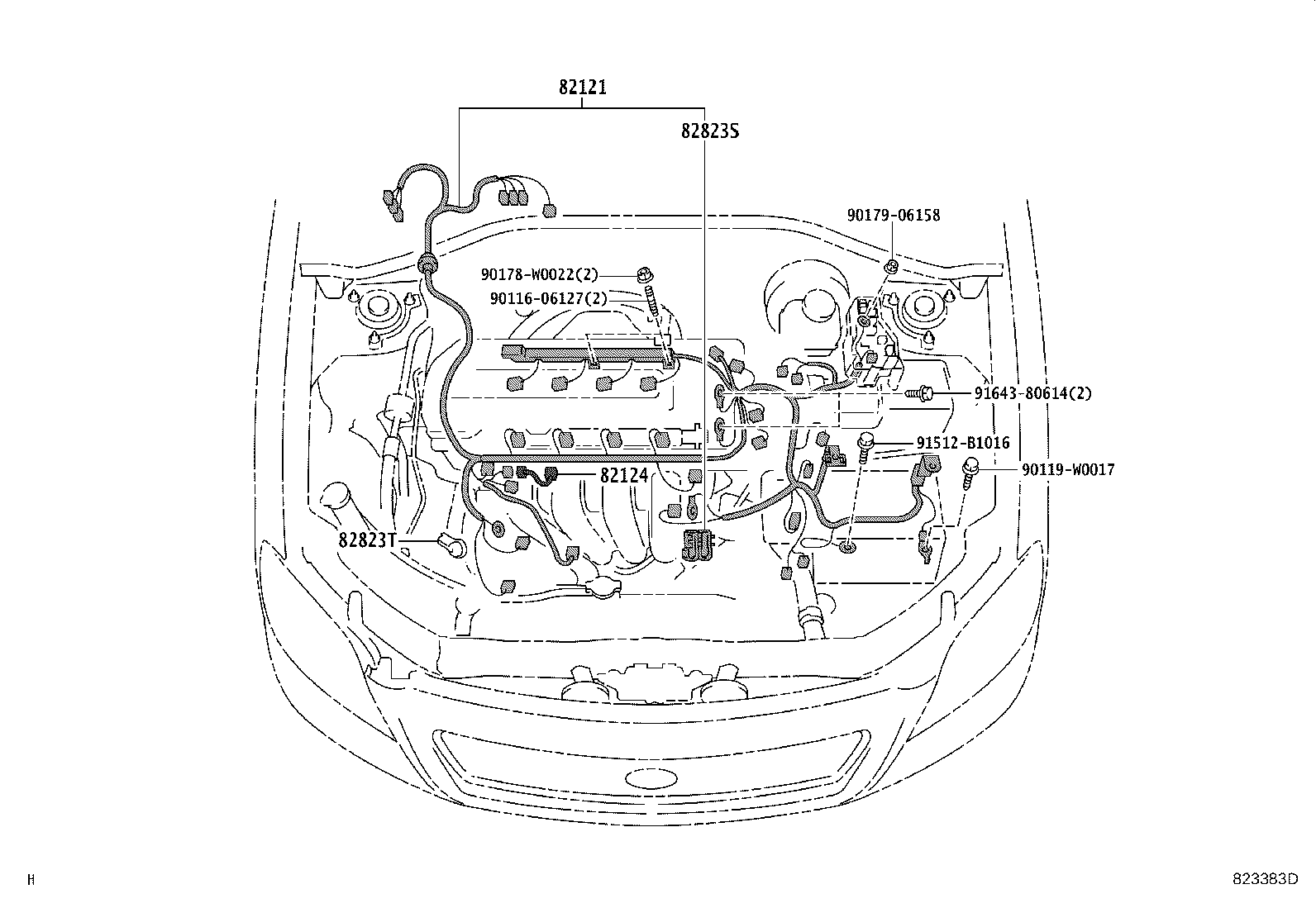

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-05600 |
ZZT25#..RHD..5F |
1 | ||
| 82121-05601 |
ZZT25#..RHD..5F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZZT25# |
1 | ||
| 82124-02090 |
ZZT25# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30120 |
ZZT25# |
1 | ||
| 82823-30120 |
ZZT25# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 82823-22050 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-W0017 | ||||
| 90178-W0022 | ||||
| 90179-06158 | ||||
| 91512-B1016 | ||||
| 91643-80614 | ||||
ILLUST NO. 3 OF 9(0301- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-05840 |
ZZT251..RHD..(ELEGT,TEC) |
1 | ||
| 82141-05850 |
ZZT251..RHD..(ELEGT,TEC) MAP NAVI |
1 | ||
| 82141-05860 |
ZZT251..RHD..(ELEGT,TEC) HEAD LAMP-DISCHARGE |
1 | ||
| 82141-05870 |
ZZT251..RHD..(ELEGT,TEC) HEAD LAMP-DISCHARGE&MAP NAVI |
1 | ||
| 82141-05D00 |
ZZT251..RHD..TEC |
1 | ||
| 82141-05M00 |
ZZT251..RHD..TEC ARROW NAVI(DOP) |
1 | ||
| 82141-05D01 |
ZZT251..RHD..TEC |
1 | ||
| 82141-05840 |
ZZT251..RHD..(ELEGT,TEC) |
1 | ||
| 82141-05860 |
ZZT251..RHD..(ELEGT,TEC) HEAD LAMP-DISCHARGE |
1 | ||
| 82141-05870 |
ZZT251..RHD..(ELEGT,TEC) HEAD LAMP-DISCHARGE&MAP NAVI |
1 | ||
| 82141-05850 |
ZZT251..RHD..(ELEGT,TEC) MAP NAVI |
1 | ||
| 82141-05D00 |
ZZT251..RHD..TEC |
1 | ||
| 82141-05M00 |
ZZT251..RHD..TEC ARROW NAVI(DOP) |
1 | ||
| 82141-05D01 |
ZZT251..RHD..TEC |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-05030 |
ADT25#,AZT25#,ZZT25#..PAG,TEC |
1 | ||
| 82143-05030 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-05040 |
ZZT251..RHD..TEC HEAD LAMP-DISCHARGE |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-05020 |
ZZT25#..RHD |
1 | ||
| 82223-05030 |
AZT250..RHD..4FC;AZT251,ZZT25#..RHD |
1 | ||
| 82345A - DIODE | ||||
| 82345-20040 |
AZT25#,ZZT25# |
1 | ||
| 82345-20040 |
AZT25#,ZZT25# |
1 | ||
| 82345B - DIODE | ||||
| 82345-20050 |
ZZT251..RHD;ZZT250..LB,WG;AZT25#,CDT250;ZZT250..RHD..SED;ZZT251..LHD..4FC;ZZT25#..LHD..5F..(ELEGT,TEC);ZZT251..LHD..(LB,WG)..5F..ENTRY |
1 | ||
| 82345-20050 |
ZZT251..RHD;AZT25#,ZZT250;ZZT251..LHD..TEC;ZZT251..LHD..(LB,WG)..ENTRY |
1 | ||
| 82345C - DIODE | ||||
| 82345-20060 |
ADT25#,AZT250,ZZT251..RHD..(PAG,TEC) ARROW NAVI(DOP) |
1 | ||
| 82345-20060 |
ZZT251..TEC;AZT251,ZZT250..LHD..TEC;ADT25#,AZT250..(PAG,TEC)..(D4,DCR,DCRL) |
1 | ||
| 82345-20060 |
ZZT251..TEC;AZT251,ZZT250..LHD..TEC;ADT25#,AZT250..(PAG,TEC)..(D4,DCR,DCRL) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-05120 |
AZT250..RHD..SED;ZZT251..RHD..TEC;AZT250..RHD..(LB,WG)..TEC HEAD LAMP-DISCHARGE |
1 | ||
| 82666-05120 |
ZZT251..RHD..TEC;ZZT250..ELEGT,TEC MAP NAVI |
1 | ||
| 82666-05120 |
AZT250..RHD..SED;ZZT251..RHD..TEC;AZT250..RHD..(LB,WG)..TEC HEAD LAMP-DISCHARGE&MAP NAVI |
1 | ||
| 82666-05120 |
ADT251,ZZT25# |
1 | ||
| 82666-05120 |
ADT25#,ZZT25# |
1 | ||
| 82666-05120 |
ADT25#,ZZT25#..RHD ARROW NAVI(DOP) |
1 | ||
| 82666-05120 |
ADT25#,ZZT25# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-05140 |
AZT250..RHD..SED;ZZT251..RHD..TEC;AZT250..RHD..(LB,WG)..TEC HEAD LAMP-DISCHARGE |
1 | ||
| 82666-05140 |
AZT250..RHD..SED;ZZT251..RHD..TEC;AZT250..RHD..(LB,WG)..TEC HEAD LAMP-DISCHARGE&MAP NAVI |
1 | ||
| 82666-05140 |
ZZT251..RHD..TEC MAP NAVI |
1 | ||
| 82666-05140 |
AZT250,ZZT25#..RHD |
1 | ||
| 82666-05140 |
AZT250,ZZT25#..RHD ARROW NAVI(DOP) |
1 | ||
| 82666-05140 |
AZT250,ZZT25#..RHD |
1 | ||
| 82666-05140 |
AZT250,ZZT25#..RHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-05040 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 82666-05040 |
ADT25#,AZT25#,ZZT25#..RHD |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-05100 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 82666-05100 |
ADT25#,AZT25#,ZZT25#..RHD |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-05110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) |
1 | ||
| 82666-05110 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-20270 |
ADT25#,AZT25#,ZZT25#..RHD |
1 | ||
| 82666-20270 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20330 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82821-20330 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;CDT250..WG..ENTRY;ZZT251..LHD..ENTRY;CDT250..RHD..(LB,SED);ADT251,AZT25#,ZZT251..RHD;ADT251,CDT250..LHD..(LB,SED)..ENTRY NO.2 |
1 | ||
| 82824-20130 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.3 |
1 | ||
| 82824-50110 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.8 |
2 | ||
| 82824-28180 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| 82824-52080 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.9 |
1 | ||
| 82824-44030 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-44020 |
CDT250..LB,SED;ADT251,AZT25#,ZZT25#;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY) NO.6 |
2 | ||
| 82824-30220 |
CDT250..RHD..(LB,SED);CDT250..RHD..WG..ENTRY;ADT251,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-20110 |
ZZT250..ENTRY;ADT25#,AZT25#,ZZT251..RHD;ADT250,ZZT251..LHD..ENTRY NO.2 |
1 | ||
| 82824-50110 |
ADT25#,AZT25#,ZZT25# NO.8 |
2 | ||
| 82824-44030 |
ADT25#,AZT25#,ZZT25#..RHD NO.7 |
1 | ||
| 82824-12220 |
ADT25#,AZT25#,ZZT25#..RHD NO.1 |
1 | ||
| 82824-20130 |
ADT25#,AZT25#,ZZT25# NO.3 |
1 | ||
| 82824-30220 |
ADT25#,AZT25#,ZZT25#..RHD NO.5 |
1 | ||
| 82824-44020 |
ADT25#,AZT25#,ZZT25# NO.6 |
2 | ||
| 82824-52080 |
ADT25#,AZT25#,ZZT25# NO.9 |
1 | ||
| 82824-28180 |
ADT25#,AZT25#,ZZT25#..RHD NO.4 |
2 | ||
| Common parts | ||||
| 90119-W0063 | ||||
| 90159-70003 | ||||
| 90178-W0019 | ||||
| 90179-05102 | ||||
| 90179-06274 | ||||
| 90980-11097 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 9(0301- )WG
FLOOR,ROOF & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-05830 |
ADT251,AZT250,CDT250,ZZT251..RHD..WG..(ELEGT,TEC) |
1 | ||
| 82161-05D80 |
ADT25#,AZT250,ZZT251..RHD..WG..TEC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-05630 |
AZT250,ZZT251..RHD..WG..TEC HEAD LAMP-DISCHARGE |
1 | ||
| 82162-05620 |
ADT251,AZT250,CDT250,ZZT251..RHD..WG..(ELEGT,TEC) |
1 | ||
| 82162-05B10 |
ADT25#,AZT250,ZZT251..RHD..WG..TEC |
1 | ||
| 82162-05630 |
AZT250,ZZT251..RHD..WG..TEC HEAD LAMP-DISCHARGE |
1 | ||
| 82162-05620 |
ADT251,AZT250,CDT250,ZZT251..RHD..WG..(ELEGT,TEC) |
1 | ||
| 82162-05B10 |
ADT25#,AZT250,ZZT251..RHD..WG..TEC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-05350 |
ZZT251..RHD..WG..TEC MAP NAVI |
1 | ||
| 82171-05260 |
ZZT251..RHD..TEC ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&WITH(MOON ROOF)&MAP NAVI |
1 | ||
| 82171-05230 |
ZZT251..RHD..TEC ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&MAP NAVI |
1 | ||
| 82171-05380 |
ZZT251..RHD..WG..TEC WITH(MOON ROOF)&MAP NAVI |
1 | ||
| 82171-05220 |
ADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC) ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK |
1 | ||
| 82171-05250 |
AZT250..RHD..WG..5F;AZT250..RHD..(LB,SED);ADT251,AZT251,CDT250,ZZT251..RHD..(ELEGT,TEC) ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&WITH(MOON ROOF) |
1 | ||
| 82171-05340 |
ADT251,AZT250,CDT250,ZZT251..RHD..WG..(ELEGT,TEC) |
1 | ||
| 82171-05370 |
ADT251,AZT250,CDT250,ZZT251..RHD..WG..MTM..(ELEGT,TEC) WITH(MOON ROOF) |
1 | ||
| 82171-05250 |
AZT250..RHD..WG..5F;AZT250..RHD..(LB,SED);ADT25#,AZT251,ZZT251..RHD..(PAG,TEC) ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&WITH(MOON ROOF) |
1 | ||
| 82171-05220 |
ADT25#,AZT25#,ZZT251..RHD..(PAG,TEC) ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK |
1 | ||
| 82171-05260 |
ZZT251..RHD..TEC PART NUMBER LABEL=82171-05260 |
1 | ||
| 82171-05370 |
ADT25#,AZT250,ZZT251..RHD..WG..MTM..(PAG,TEC) WITH(MOON ROOF) |
1 | ||
| 82171-05340 |
ADT25#,AZT250,ZZT251..RHD..WG..(PAG,TEC) |
1 | ||
| 82171-05230 |
ZZT251..RHD..TEC PART NUMBER LABEL=82171-05230 |
1 | ||
| 82171-05380 |
ZZT251..RHD..WG..TEC PART NUMBER LABEL=82171-05380 |
1 | ||
| 82171-05350 |
ZZT251..RHD..WG..TEC PART NUMBER LABEL=82171-05350 |
1 | ||
| 82171-05220 |
ADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC) PART NUMBER LABEL=82171-05220 |
1 | ||
| 82171-05250 |
AZT250..RHD..WG..5F;AZT250..RHD..(LB,SED);ADT251,AZT251,CDT250,ZZT251..RHD..(ELEGT,TEC) PART NUMBER LABEL=82171-05250 |
1 | ||
| 82171-05340 |
ADT251,AZT250,CDT250,ZZT251..RHD..WG..(ELEGT,TEC) PART NUMBER LABEL=82171-05340 |
1 | ||
| 82171-05370 |
ADT251,AZT250,CDT250,ZZT251..RHD..WG..MTM..(ELEGT,TEC) PART NUMBER LABEL=82171-05370 |
1 | ||
| 82171-05250 |
AZT250..RHD..WG..5F;AZT250..RHD..(LB,SED);ADT25#,AZT251,ZZT251..RHD..(PAG,TEC) PART NUMBER LABEL=82171-05250 |
1 | ||
| 82171-05220 |
ADT25#,AZT25#,ZZT251..RHD..(PAG,TEC) PART NUMBER LABEL=82171-05220 |
1 | ||
| 82171-05340 |
ADT25#,AZT250,ZZT251..RHD..WG..(PAG,TEC) PART NUMBER LABEL=82171-05340 |
1 | ||
| 82171-05370 |
ADT25#,AZT250,ZZT251..RHD..WG..MTM..(PAG,TEC) PART NUMBER LABEL=82171-05370 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-05010 |
ZZT251..RHD..TEC;AZT250,ZZT250..SED..(ELEGT,TEC)..HTWC WITH(MOON ROOF)&MAP NAVI |
1 | ||
| 82172-05010 |
ZZT251..RHD..TEC ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&WITH(MOON ROOF)&MAP NAVI |
1 | ||
| 82172-05010 |
AZT250..HTWC;AZT250..WG..5F;AZT250..(LB,SED)..D4;ADT251,AZT251,CDT250,ZZT25# WITH(MOON ROOF) |
1 | ||
| 82172-05010 |
AZT250..LB,SED;AZT250..WG..5F;ADT25#,AZT251,ZZT25# WITH(MOON ROOF) |
1 | ||
| 82172-05010 |
AZT250..RHD..WG..5F;AZT250..RHD..(LB,SED);ADT251,AZT251,CDT250,ZZT25#..RHD ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&WITH(MOON ROOF) |
1 | ||
| 82172-05010 |
AZT250..RHD..WG..5F;AZT250..RHD..(LB,SED);ADT25#,AZT251,ZZT25#..RHD ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&WITH(MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-05100 |
ADT25#,AZT25#,ZZT25#..WG |
1 | ||
| 82184-05100 |
ADT251,AZT25#,CDT250,ZZT25#..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-05080 |
ADT251,AZT25#,CDT250,ZZT25#..WG |
1 | ||
| 82185-05081 |
ADT25#,AZT25#,ZZT25#..WG |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 82666-20280 |
ADT25#,AZT25#,ZZT25# |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 82666-20280 |
ADT25#,AZT25#,ZZT25# |
2 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-05070 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 82666-05070 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-05080 |
AZT250..RHD..SED;ZZT251..RHD..TEC;AZT250..RHD..(LB,WG)..TEC HEAD LAMP-DISCHARGE |
1 | ||
| 82666-05080 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82666-05080 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-05310 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 82817-05310 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-05310 |
AZT250..RHD..SED;ZZT251..RHD..TEC;AZT250..RHD..(LB,WG)..TEC HEAD LAMP-DISCHARGE |
1 | ||
| 82817-05310 |
ADT25#,AZT25#,ZZT25# |
1 | ||
| 82817-05310 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-05030 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 82821-05030 |
ADT25#,AZT25#,ZZT25#..PAG,TEC |
1 | ||
| 82821-05030 |
ZZT251..RHD..TEC ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&MAP NAVI |
1 | ||
| 82821-05030 |
ZZT251..RHD..TEC ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK&WITH(MOON ROOF)&MAP NAVI |
1 | ||
| 82821-05030 |
ZZT251..RHD..TEC;AZT250,ZZT250..SED..(ELEGT,TEC)..HTWC WITH(MOON ROOF)&MAP NAVI |
1 | ||
| 82821-05030 |
ZZT251..RHD..TEC;AZT250,ZZT250..SED..(ELEGT,TEC)..HTWC MAP NAVI |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ADT251,AZT25#,CDT250,ZZT25# NO.1 |
1 | ||
| 82824-30180 |
ADT251,AZT25#,CDT250,ZZT25# NO.2 |
1 | ||
| 82824-20110 |
ADT25#,AZT25#,ZZT25# NO.1 |
1 | ||
| 82824-30180 |
ADT25#,AZT25#,ZZT25# NO.2 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ADT251,AZT25#,CDT250,ZZT25# NO.1 |
1 | ||
| 82824-30180 |
ADT251,AZT25#,CDT250,ZZT25# NO.2 |
1 | ||
| 82824-20110 |
ADT25#,AZT25#,ZZT25# NO.1 |
1 | ||
| 82824-30180 |
ADT25#,AZT25#,ZZT25# NO.2 |
1 | ||
| Common parts | ||||
| 90119-W0063 | ||||
| 90980-11779 | ||||

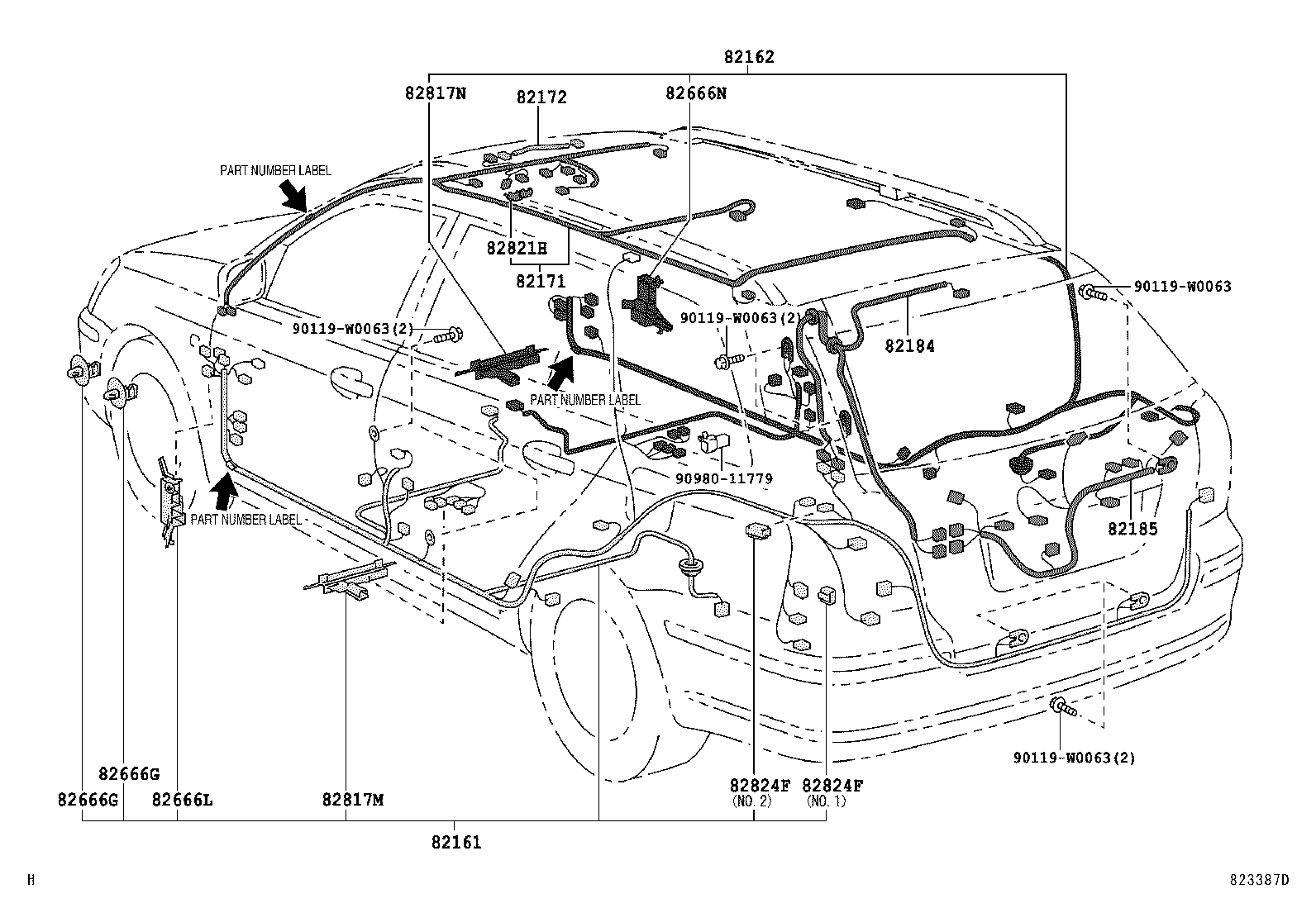

ILLUST NO. 6 OF 9(0301- )
SEAT
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 7 OF 9(0301- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82712-37210 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A30 | ||||
| 82715-20A40 | ||||
| 82715-20A50 | ||||
| 82715-20A60 | ||||
| 82715-20A70 | ||||
| 82715-20A80 | ||||
| 82715-20A90 | ||||
| 82715-20B00 | ||||
| 82715-20B10 | ||||
| 82715-20B20 | ||||
| 82715-20B30 | ||||
| 82715-2B360 | ||||
| 82729-20130 | ||||
| 82729-20180 | ||||
| 82729-20190 | ||||
| 82729-20290 | ||||
| 82729-20310 | ||||
| 87616-22010 | ||||
| 90119-06625 | ||||
| 90119-W0027 | ||||
| 90119-W0043 | ||||
| 90179-08040 | ||||
| 91512-B1016 | ||||
| 91651-B0614 | ||||
| 91671-A0614 | ||||
ILLUST NO. 8 OF 9(0301- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90080-82044 |
AZT25#,ZZT25# |
1 | ||
| 90080-82044 |
AZT25#,ZZT25# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90080-82044 |
AZT25#,ZZT25# |
1 | ||
| 90080-82044 |
AZT25#,ZZT25# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90080-82045 |
AZT250..4FC..D4;AZT250,ZZT25#..5F |
1 | ||
| 90080-82045 |
AZT250,ZZT25#..5F |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90080-82045 |
AZT250..4FC..D4;AZT250,ZZT25#..5F |
1 | ||
| 90080-82045 |
AZT250,ZZT25#..5F |
1 | ||
| Common parts | ||||
| 87616-35010 | ||||
| 90105-08096 | ||||
| 90119-W0063 | ||||
| 91512-B1016 | ||||
| 91621-J0612 | ||||
ILLUST NO. 7 OF 9(0301- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67772-21010 | ||||
| 82715-05190 | ||||
| 82715-05200 | ||||
| 82715-12680 | ||||
| 82715-13100 | ||||
| 82715-13120 | ||||
| 82715-13150 | ||||
| 82715-2B240 | ||||
| 82715-2B290 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-2J120 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42580 | ||||
| 82715-42620 | ||||
| 82715-42650 | ||||
| 82729-20010 | ||||
| 82729-20080 | ||||
| 82729-20100 | ||||
| 82729-20110 | ||||
| 82729-20120 | ||||
| 82729-20140 | ||||
| 82729-20150 | ||||
| 82729-20160 | ||||
| 82729-20220 | ||||
| 82729-20230 | ||||
| 82729-20250 | ||||
| 82729-20260 | ||||
| 82729-20270 | ||||
| 82729-20280 | ||||
| 82729-20290 | ||||
| 82729-20300 | ||||
| 82729-20320 | ||||
| 82729-28120 | ||||
| 90119-06625 | ||||
| 90119-08B55 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90179-06274 | ||||
| 90464-00763 | ||||
| 91512-B1016 | ||||
| 91621-40814 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91651-60612 | ||||
| 91651-B0610 | ||||
| 91651-B0614 | ||||
| Linked diagrams | ||||
| 7801 | ||||
ILLUST NO. 9 OF 9(0301- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90080-98175 | ||||
| 90980-10619 | ||||
| 90980-10942 | ||||
| 90980-10964 | ||||
| 90980-11016 | ||||
| 90980-11070 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11314 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
