ZZT251R-AWMEKW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )ZZT25#..RHD

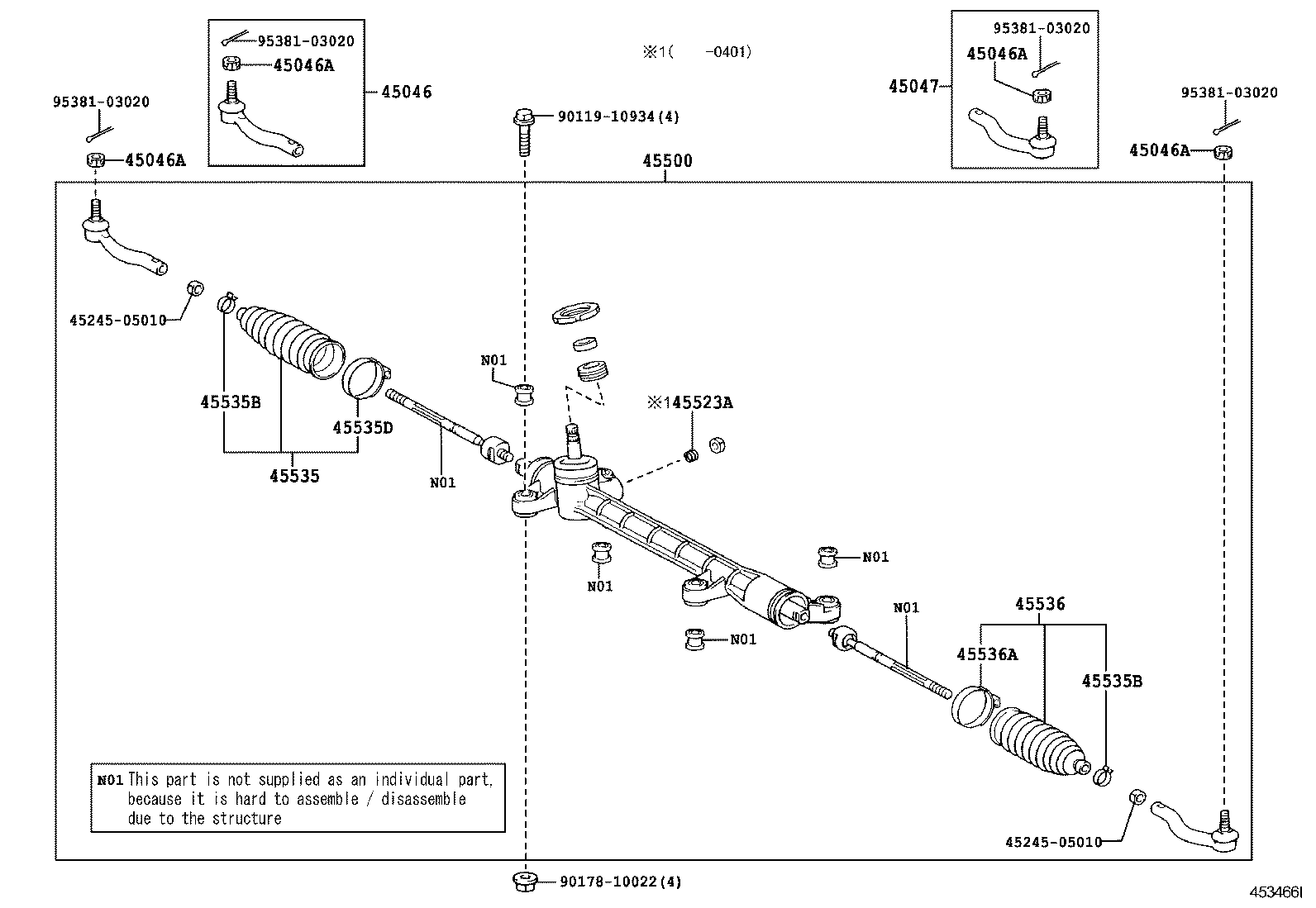

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45046A 45046A 45047 4524505010 4524505010 45500 45523A 45535 45535B 45535B 45535D 45536 45536A 9011910934 9017810022 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09230

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45046-09230

ZZT25#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT25#,AZT25#,ZZT25#

 2
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT25#,AZT25#,ZZT25#

 2
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT25#,AZT25#,ZZT25#

 2
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT25#,AZT25#,ZZT25#

 2
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09230

ZZT25#

 1
45046-09230

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45500 - LINK ASSY, STEERING
45500-05020

ZZT25#..RHD

 1
45500-05020

ZZT25#..RHD

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-29016

ZZT25#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09030

ZZT25#

 1
45535-09030

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19017

ZZT25#

 2
90467-19021

ZZT25#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19017

ZZT25#

 2
90467-19021

ZZT25#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008

ZZT25#

 1
90460-58008

ZZT25#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09030

ZZT25#

 1
45535-09030

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008

ZZT25#

 1
90460-58008

ZZT25#

 1
Common parts
45245-05010
90119-10934
90178-10022
95381-03020
