ZZT251R-AWMEKW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )ZZT25#..5F

Click highlighted areas on diagram

C50,C250

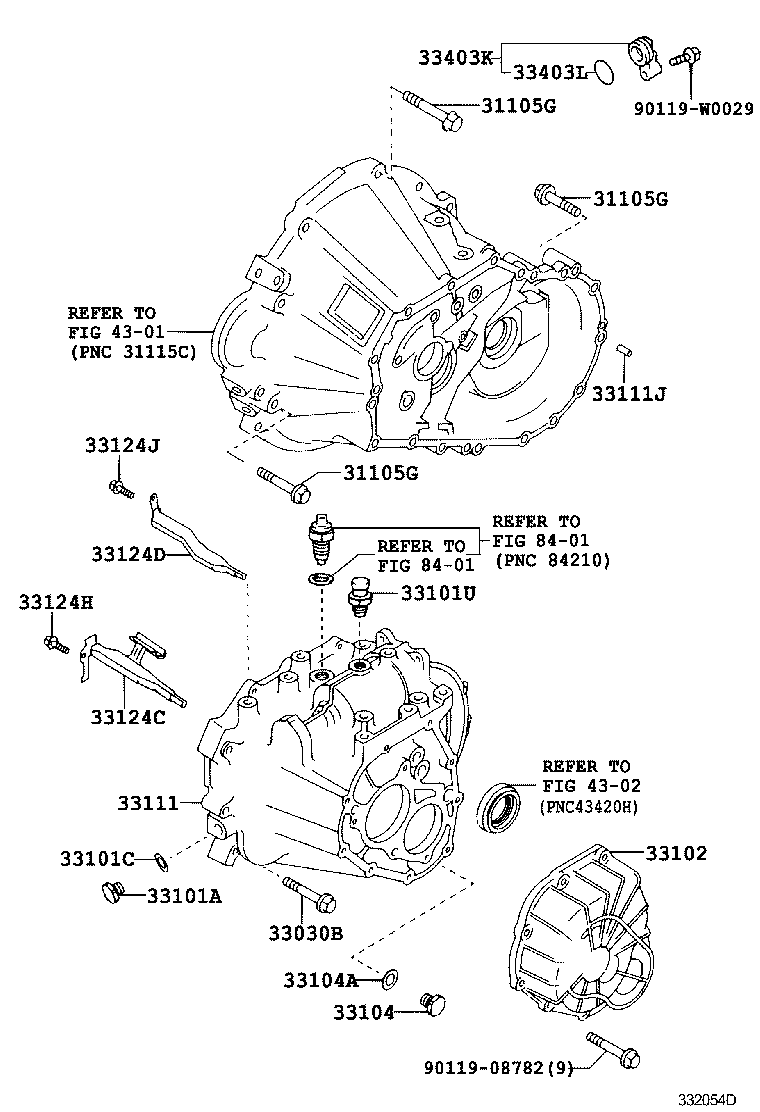

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101U 33102 33104 33104A 33111 33111J 33124C 33124D 33124H 33124J 33403K 33403L 4301 4302 8401 8401 9011908782 90119W0029
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91642-81055

ZZT25#..5F

*10-1.25PX55-30

 2
91619-61255

ZZT25#..5F

*12-1.25PX55-30

 2
90119-W0049

ZZT25#..5F

*10-1.25PX55-30

 2
90119-W0080

ZZT25#..5F

*12-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91642-81055

ZZT25#..5F

*10-1.25PX55-30

 2
91619-61255

ZZT25#..5F

*12-1.25PX55-30

 2
90119-W0049

ZZT25#..5F

*10-1.25PX55-30

 2
90119-W0080

ZZT25#..5F

*12-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91642-81055

ZZT25#..5F

*10-1.25PX55-30

 2
91619-61255

ZZT25#..5F

*12-1.25PX55-30

 2
90119-W0049

ZZT25#..5F

*10-1.25PX55-30

 2
90119-W0080

ZZT25#..5F

*12-1.25PX55-30

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

ZZT25#..5F

*8-1.25PX45-27.5

 3
90105-08430

ZZT25#..5F

*8-1.25PX45-27.5

 3
90105-08353

ZZT25#..5F

*8-1.25PX50-30

 13
90105-08353

ZZT25#..5F

*8-1.25PX50-30

 13
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

ADT25#,AZT250,ZZT25#..MTM

 1
90341-18006

ZZT25#..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ZZT250;ZZT251..LHD..5F..ELEGT;ZZT251..5F..(ENTRY,TEC)

 1
90430-W0001

ZZT25#..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03133

ZZT25#..5F

 1
90930-03133

ZZT25#..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-0D010

ZZT25#..5F

 1
33102-0D010

ZZT25#..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

ZZT250;ZZT251..LHD..5F..ELEGT;ZZT251..5F..(ENTRY,TEC)

 1
90341-18033

ZZT25#..5F

 1
90341-18006

ZZT25#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

ZZT250;ZZT251..LHD..5F..ELEGT;ZZT251..5F..(ENTRY,TEC)

 1
90430-W0001

ZZT25#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-05010

ZZT251..5F

 1
33111-05021

ZZT25#..5F

 1
33111-05020

ZZT25#..5F

 1
33111-05020

ZZT25#..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ADT251,AZT250,CDT250,ZZT25#..MTM

L=23,OD=8

 4
90250-08054

ADT25#,AZT250,ZZT25#..MTM

L=23,OD=8

 4
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

ZZT25#..5F

 1
33124-20050

ZZT25#..5F

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

ZZT25#..5F

 1
33124-12021

ZZT25#..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820

ZZT25#..5F

 1
91611-G0820

ZZT25#..5F

 1
33124J - BOLT, W/WASHER
91611-G0820

ZZT25#..5F

 1
91611-G0820

ZZT25#..5F

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

ZZT25#..5F

 1
33403-35230

ZZT25#..5F

 1
33403L - RING, O
96711-24030

ZZT25#..5F

 1
96711-24030

ZZT25#..5F

 1
Common parts
90119-08782
90119-W0029
Linked diagrams
4301
4302
8401
