Toyota Avensis ZZT251 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
EU
AVENSIS
ZZT251R-AWMEKW (2006)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

ZZT251R-AWMEKW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008

Engine 1ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

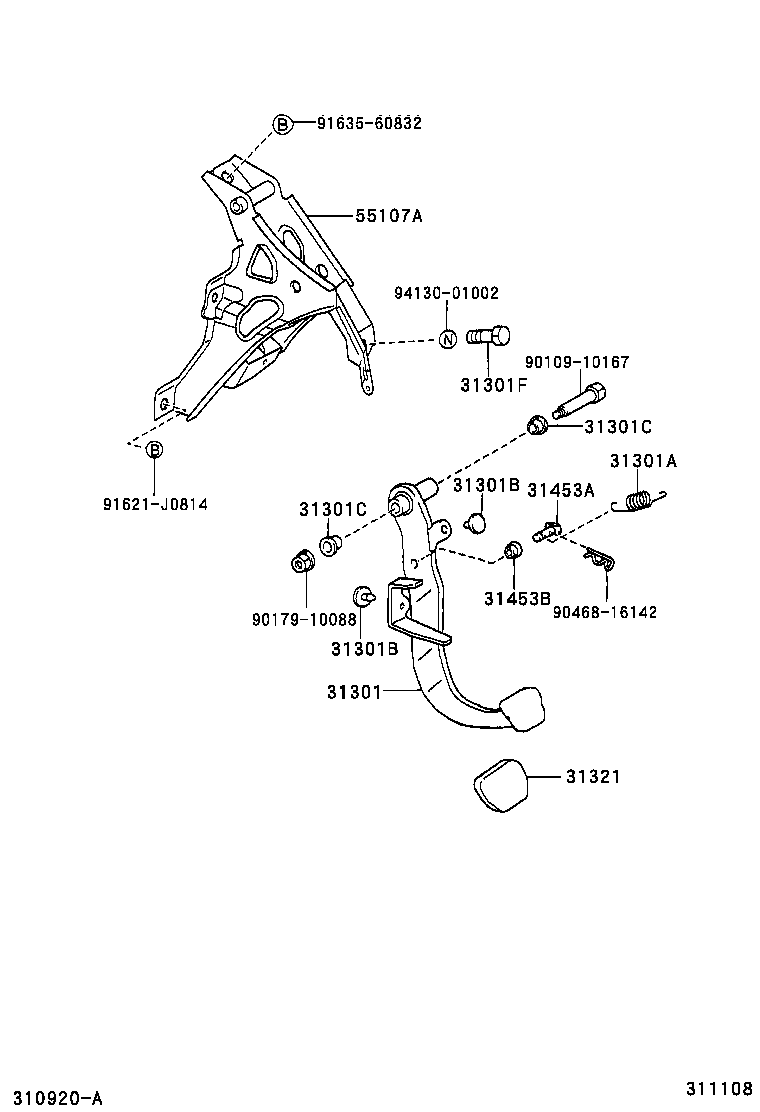

ILLUST NO. 1 OF 2(0301- )ZZT25#..RHD..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05090	ZZT25#..RHD..5F	01/2003 - 04/2006	1
31301-05090	ZZT25#..RHD..5F	04/2006 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14050	ZZT25#..RHD..5F	04/2006 - 12/2999	1
90507-14050	ZZT25#..RHD..5F	01/2003 - 04/2006	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ADT251,AZT250,CDT250,ZZT25#..RHD..MTM	01/2003 - 04/2006	2
90541-06036	ADT25#,AZT250,ZZT25#..RHD..MTM	04/2006 - 12/2999	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ADT251,AZT250,CDT250,ZZT25#..RHD..MTM	01/2003 - 04/2006	2
90541-06036	ADT25#,AZT250,ZZT25#..RHD..MTM	04/2006 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ADT25#,AZT250,ZZT25#..MTM	04/2006 - 12/2999	2
90386-13015	ADT251,AZT250,CDT250,ZZT25#..MTM	01/2003 - 04/2006	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ADT25#,AZT250,ZZT25#..MTM	04/2006 - 12/2999	2
90386-13015	ADT251,AZT250,CDT250,ZZT25#..MTM	01/2003 - 04/2006	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	ADT251,AZT250,CDT250,ZZT25#..MTM	01/2003 - 04/2006	1
90101-10369	ADT25#,AZT250,ZZT25#..MTM	04/2006 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-52010	ADT25#,AZT250,ZZT25#..MTM	04/2006 - 12/2999	1
31321-52010	ADT251,AZT250,CDT250,ZZT25#..MTM	01/2003 - 04/2006	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143	ADT251,AZT250,CDT250,ZZT25#..MTM L=30	01/2003 - 04/2006	1
90249-08143	ADT25#,AZT250,ZZT25#..MTM L=30	04/2006 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	ADT251,AZT250,CDT250,ZZT25#..MTM	01/2003 - 04/2006	1
90386-08002	ADT25#,AZT250,ZZT25#..MTM	04/2006 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02050	ZZT25#..RHD..5F	04/2006 - 12/2999	1
55107-02050	ZZT25#..RHD..5F	01/2003 - 04/2006	1
Common parts
90109-10167
90179-10088
90468-16142
91621-J0814
91635-60832
94130-01002

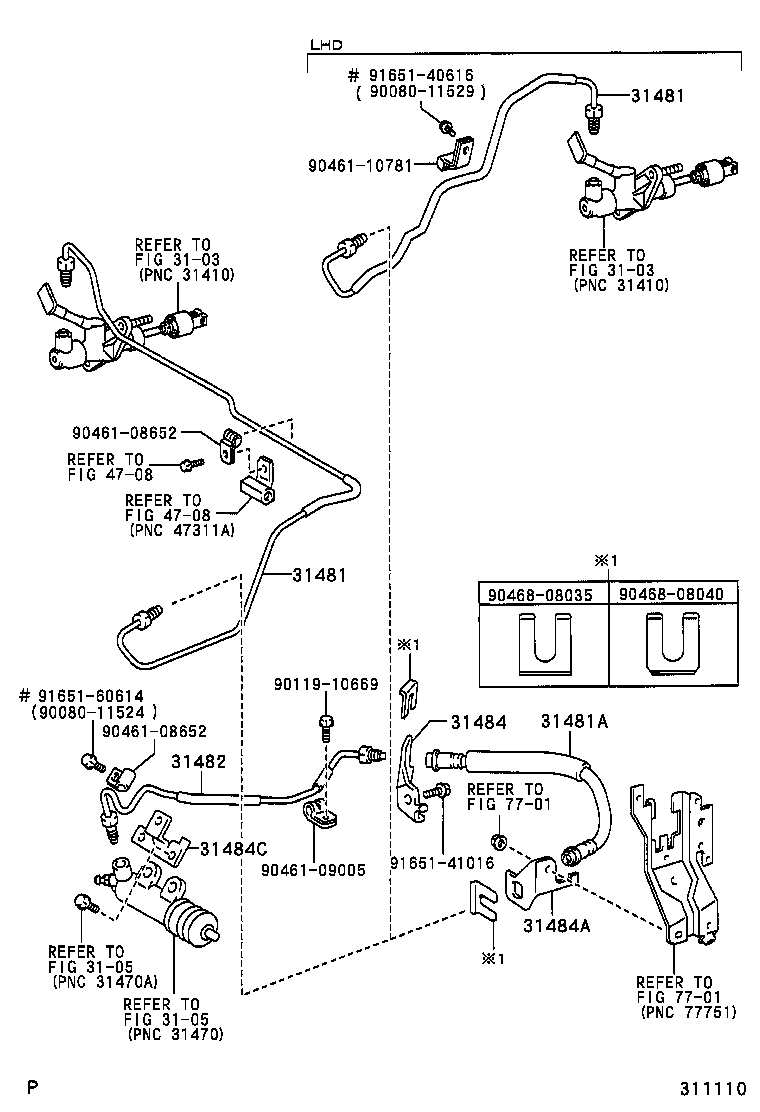

ILLUST NO. 2 OF 2(0301- )ZZT25#..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05100	ZZT25#..RHD..5F	01/2003 - 04/2006	1
31481-05100	ZZT25#..RHD..5F	04/2006 - 12/2999	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05100	ZZT25#..RHD..5F	01/2003 - 04/2006	1
31481-05100	ZZT25#..RHD..5F	04/2006 - 12/2999	1
31481A - HOSE, CLUTCH, NO.1
90947-02D20	ZZT25#..5F	01/2003 - 04/2006	1
90947-02D20	ZZT25#..5F	04/2006 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02160	ZZT25#..5F	01/2003 - 04/2006	1
31482-02160	ZZT25#..5F	04/2006 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12430	ZZT25#..5F	01/2003 - 04/2006	1
31484-12430	ZZT25#..5F	04/2006 - 12/2999	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-05010	ZZT25#..5F	01/2003 - 04/2006	1
31484-05010	ZZT25#..5F	04/2006 - 12/2999	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460	ADT25#,ZZT25#..MTM	04/2006 - 12/2999	1
31484-20460	ADT251,ZZT25#..MTM	01/2003 - 04/2006	1
Common parts
90080-11524
90080-11529
90119-10669
90461-08652
90461-09005
90461-10781
90468-08035
90468-08040
91651-40616
91651-41016
91651-60614
Linked diagrams
3103
3105
4708
7701

ZZT251R-AWMEKW (2006)

ILLUST NO. 1 OF 2(0301- )ZZT25#..RHD..5F

ILLUST NO. 2 OF 2(0301- )ZZT25#..5F
