ZZT251R-AWMEKW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0604- )1ZZFE,3ZZFE

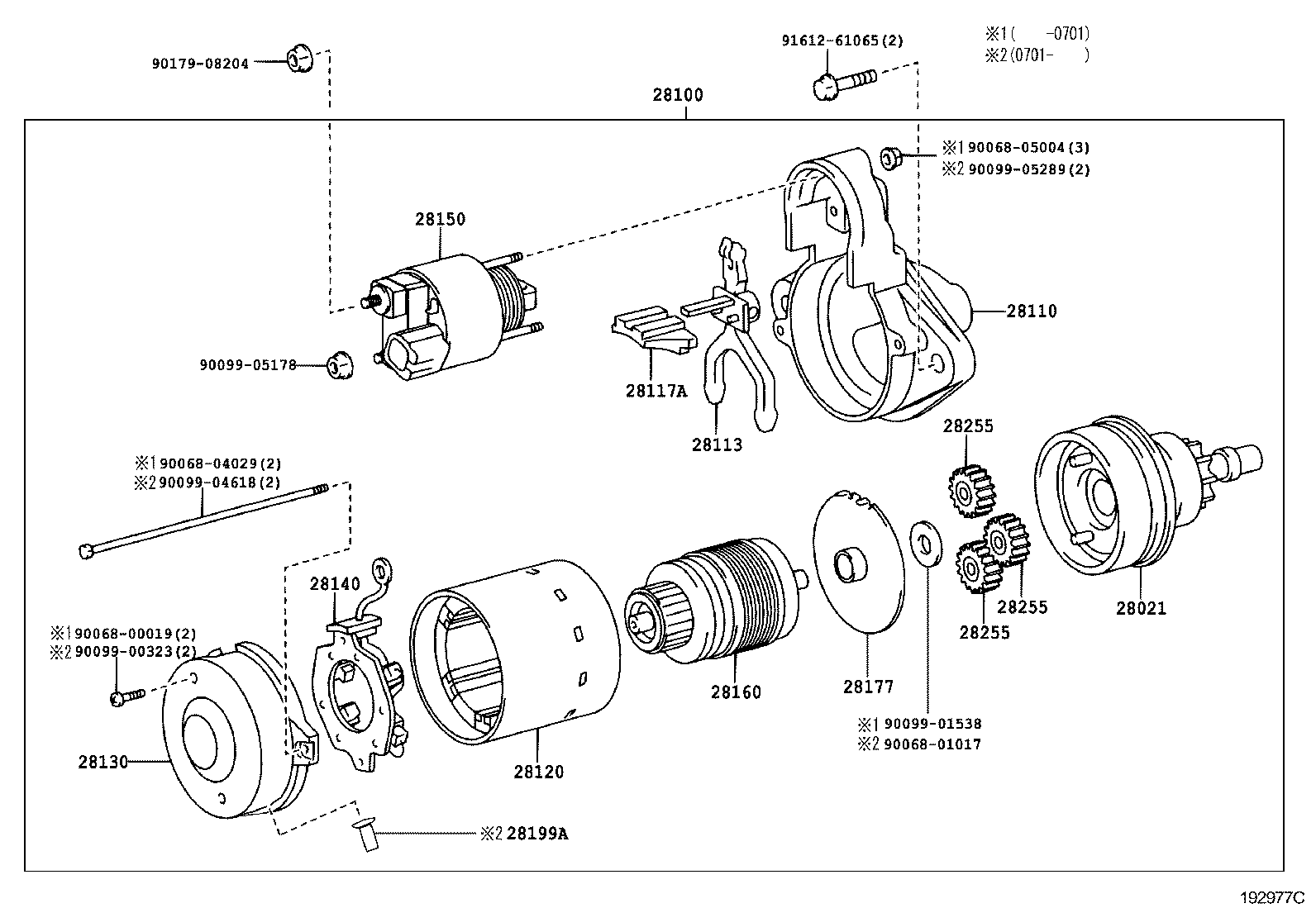

Click highlighted areas on diagram

12V 1.3KW

diagram 28021 28100 28110 28113 28117A 28120 28130 28140 28150 28160 28177 28199A 28255 28255 28255 9006800019 9006801017 9006804029 9006805004 9009900323 9009901538 9009904618 9009905178 9009905289 9017908204 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28021-37050

1ZZFE,3ZZFE..ZZT25#

 1
28021-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28100 - STARTER ASSY
28100-0D180

1ZZFE,3ZZFE..ZZT25#

12V 1.3KW

 1
28100-0D090

1ZZFE,3ZZFE..ZZT25#

12V 1.3KW

 1
28100-0D090

1ZZFE,3ZZFE..ZZT25#

12V 1.3KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28110-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28110-0D180

1ZZFE,3ZZFE..ZZT25#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28113-37050

1ZZFE,3ZZFE..ZZT25#

 1
28113-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28117A - SEAL, RUBBER
28117-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28117-37050

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28117-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28120 - YOKE ASSY, STARTER
28120-0D090

1AZFSE..AZT250..LHD..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#

 1
28120-0D090

1AZFSE..AZT250..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#

 1
28120-0D180

1ZZFE,3ZZFE..ZZT25#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28130-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28130-37050

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28140-0D090

1ZZFE,3ZZFE..ZZT25#

 1
28140-37050

1ZZFE,3ZZFE..ZZT25#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28226-0D090

1ZZFE,3ZZFE..ZZT25#;1AZFSE,2AZFSE..AZT25#..ATM

 1
28226-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28150-37050

1ZZFE,3ZZFE..ZZT25#

 1
28160 - ARMATURE ASSY, STARTER
28160-0D090

1AZFSE..AZT250..LHD..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#

 1
28160-0D180

1AZFSE..AZT250..LHD..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#

 1
28160-0D090

1AZFSE..AZT250..5F;1AZFE,1ZZFE,3ZZFE..AZT250,ZZT25#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-37050

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28177-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28177-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28199A - PROTECTOR, DUST STARTER
28199-0D180

1ZZFE,3ZZFE..ZZT25#

 1
28255 - GEAR, PLANET
28255-37050

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255 - GEAR, PLANET
28255-37050

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255 - GEAR, PLANET
28255-37050

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
Common parts
90068-00019
90068-01017
90068-04029
90068-05004
90099-00323
90099-01538
90099-04618
90099-05178
90099-05289
90179-08204
91612-61065
