ZZT251R-AWMEKW (2006)
Toyota Avensis

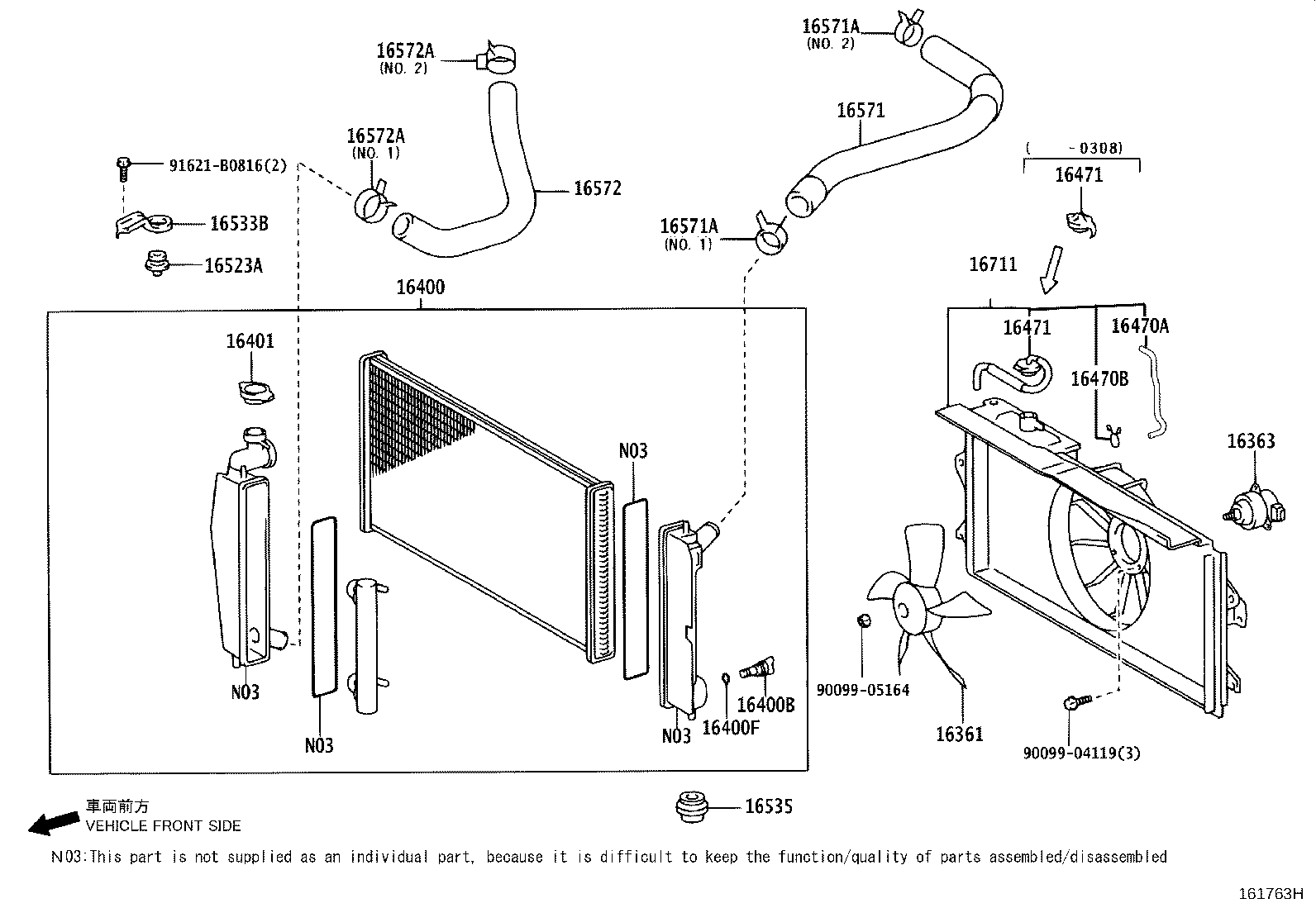

ILLUST NO. 1 OF 2(0301- )1ZZFE,3ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0D080 |
1ZZFE,3ZZFE..ZZT25#..5F |
1 | ||
| 16361-0D080 |
1ZZFE,3ZZFE..ZZT25#..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0H030 |
1ZZFE,3ZZFE..ZZT25#..5F |
1 | ||
| 16363-0H030 |
1ZZFE,3ZZFE..ZZT25#..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D210 |
1ZZFE,3ZZFE..ZZT25#..5F |
1 | ||
| 16400-0D210 |
1ZZFE,3ZZFE..ZZT25#..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 90080-34010 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16492-21050 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-20353 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16401-72090 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16401-72090 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21040 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16377-21040 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 90467-11085 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-0J010 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16405-0D080 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-0J010 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16405-0D080 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D020 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16523-0D020 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-22050 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16533-22050 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D031 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16535-0D031 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0D130 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16571-0D180 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-37002 |
1ZZFE,3ZZFE..ZZT25# NO.1 |
1 | ||
| 90467-34004 |
1ZZFE,3ZZFE..ZZT25# NO.2 |
1 | ||
| 90466-W0011 |
1ZZFE,3ZZFE..ZZT25# NO.2 |
1 | ||
| 90466-W0012 |
1ZZFE,3ZZFE..ZZT25# NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-37002 |
1ZZFE,3ZZFE..ZZT25# NO.1 |
1 | ||
| 90467-34004 |
1ZZFE,3ZZFE..ZZT25# NO.2 |
1 | ||
| 90466-W0011 |
1ZZFE,3ZZFE..ZZT25# NO.2 |
1 | ||
| 90466-W0012 |
1ZZFE,3ZZFE..ZZT25# NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0D110 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16572-0D110 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1ZZFE,3ZZFE..ZZT25# NO.2 |
1 | ||
| 90466-W0013 |
1ZZFE,3ZZFE..ZZT25# NO.1 & NO.2 |
2 | ||
| 90467-37005 |
1ZZFE,3ZZFE..ZZT25# NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1ZZFE,3ZZFE..ZZT25# NO.2 |
1 | ||
| 90466-W0013 |
1ZZFE,3ZZFE..ZZT25# NO.1 & NO.2 |
2 | ||
| 90467-37005 |
1ZZFE,3ZZFE..ZZT25# NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0D090 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16711-0D090 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91621-B0816 | ||||

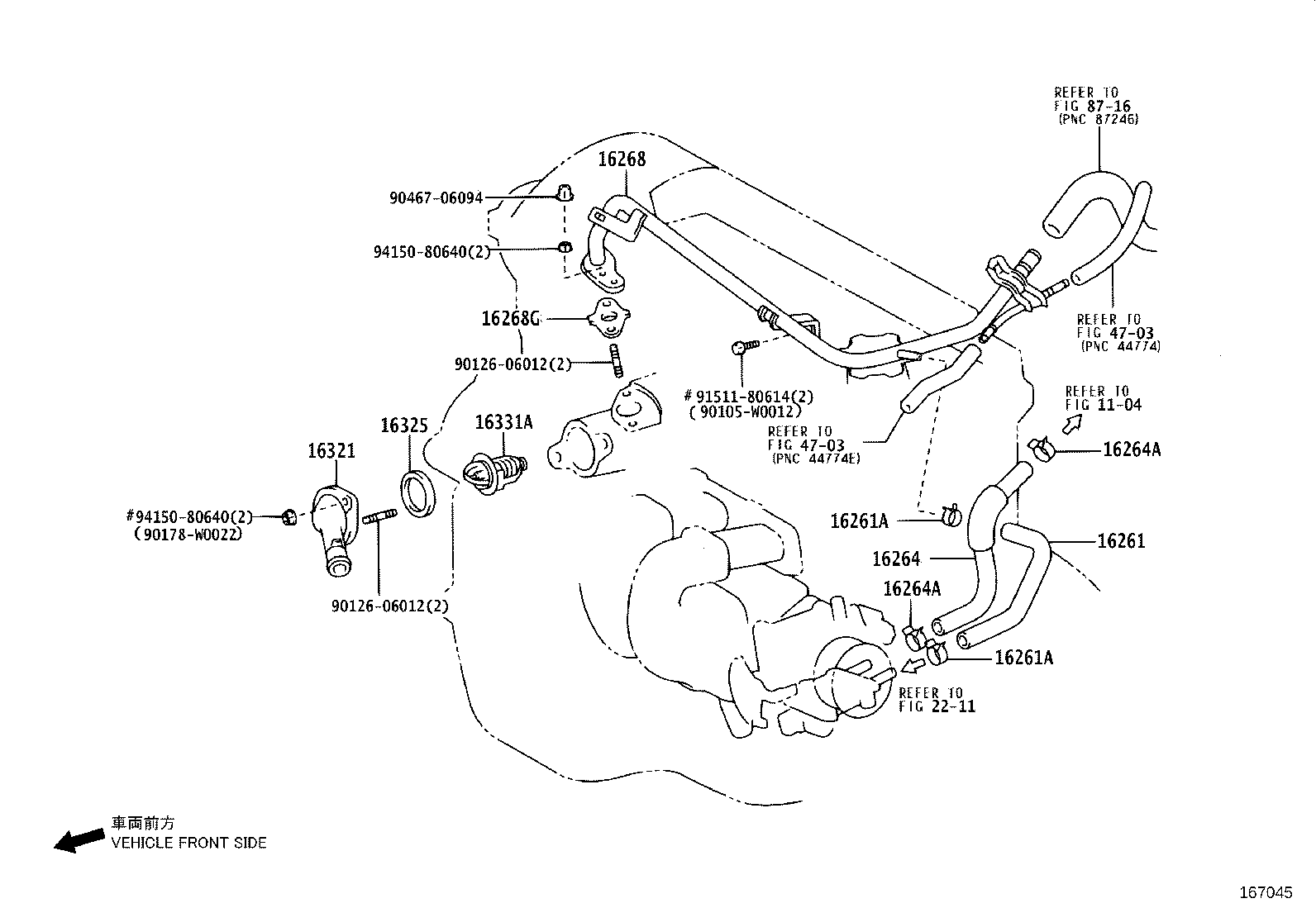

ILLUST NO. 2 OF 2(0301- )1ZZFE,3ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22080 |
1ZZFE..ZZT251 (J) |
1 | ||
| 16261-0D122 |
1ZZFE,3ZZFE..ZZT25# (L) |
1 | ||
| 16261-0D070 |
1ZZFE..ZZT251 (L) |
1 | ||
| 16261-22142 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 90466-W0002 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 90466-W0002 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0D080 |
1ZZFE..ZZT251 (L) |
1 | ||
| 16264-22090 |
1ZZFE..ZZT251 (J) |
1 | ||
| 16264-0D122 |
1ZZFE,3ZZFE..ZZT25# (L) |
1 | ||
| 16264-22123 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 90466-W0002 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 90466-W0002 |
1ZZFE,3ZZFE..ZZT25# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22161 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16268-0D020 |
1ZZFE,3ZZFE..ZZT25# (L) |
1 | ||
| 16268-22160 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16268-22100 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16268-0D060 |
1ZZFE,3ZZFE..ZZT25# (L) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-22010 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16258-0D020 |
1ZZFE,3ZZFE..ZZT25# (L) |
1 | ||
| 16258-22010 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0D030 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16321-0D030 |
1ZZFE,3ZZFE..ZZT25# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0D010 |
1ZZFE,3ZZFE..ZZT25# (L) |
1 | ||
| 16325-62010 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16325-0D010 |
1ZZFE,3ZZFE..ZZT25# (L) |
1 | ||
| 16325-62010 |
1ZZFE,3ZZFE..ZZT25# (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
1ZZFE,3ZZFE..ZZT25# *WAX 82-95 |
1 | ||
| 90916-03129 |
1ZZFE,3ZZFE..ZZT25# *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0012 | ||||
| 90126-06012 | ||||
| 90178-W0022 | ||||
| 90467-06094 | ||||
| 91511-80614 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 4703 | ||||
| 8716 | ||||
