ZZT251R-AWMEKW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )1ZZFE,3ZZFE

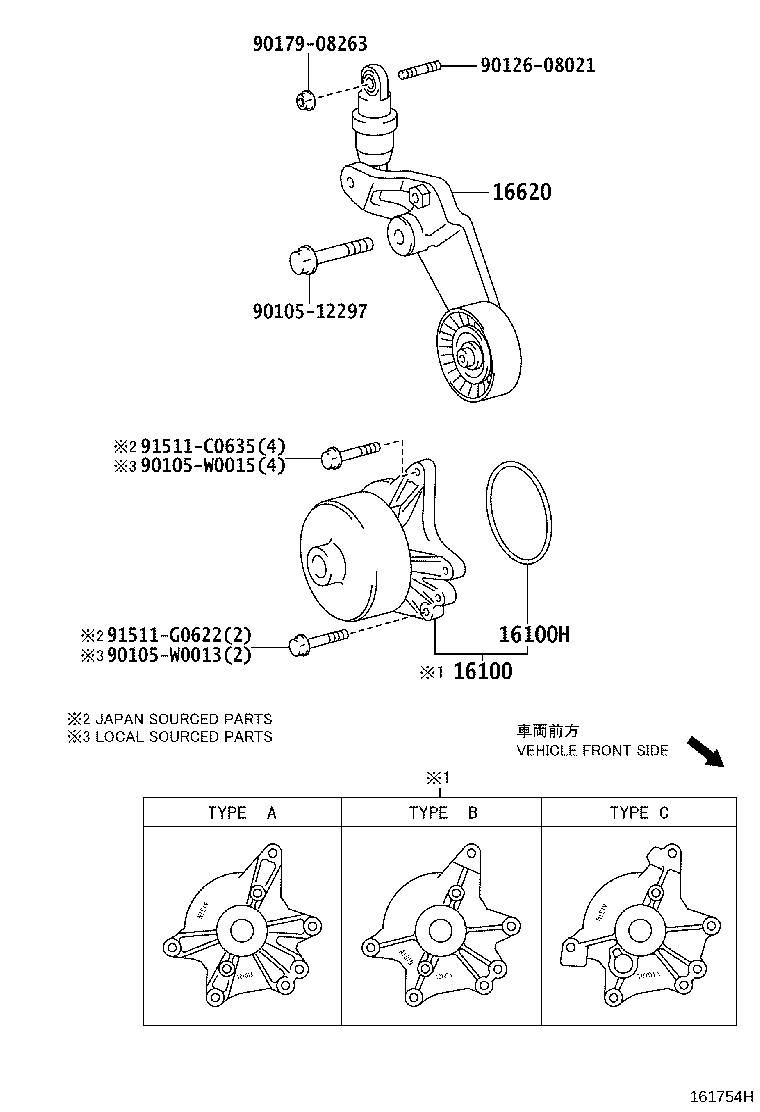

Click highlighted areas on diagram

diagram 16100 16100H 16620 9010512297 90105W0013 90105W0015 9012608021 9017908263 91511C0635 91511G0622
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29175

1ZZFE,3ZZFE..ZZT25#

TYPE B:REFER ILLUST.

 1
16100-29415

1ZZFE,3ZZFE..ZZT25#

(J),T/P C:REF.ILLUST

 1
16100-09130

1ZZFE,3ZZFE..ZZT25#

TYPE A:REFER ILLUST.

 1
16100-09310

1ZZFE,3ZZFE..ZZT25#

(L),T/P C:REF.ILLUST

 1
16100H - RING, O(FOR WATER PUMP)
90301-69006

1ZZFE,3ZZFE..ZZT25#

 1
90301-69006

1ZZFE,3ZZFE..ZZT25#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W093

1ZZFE,3ZZFE..ZZT25#

 1
16620-22012

1ZZFE,3ZZFE..ZZT25#

 1
16620-22012

1ZZFE,3ZZFE..ZZT25#

 1
Common parts
90105-12297
90105-W0013
90105-W0015
90126-08021
90179-08263
91511-C0635
91511-G0622
