ZZT251R-AEMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0604)SED..ENTRY

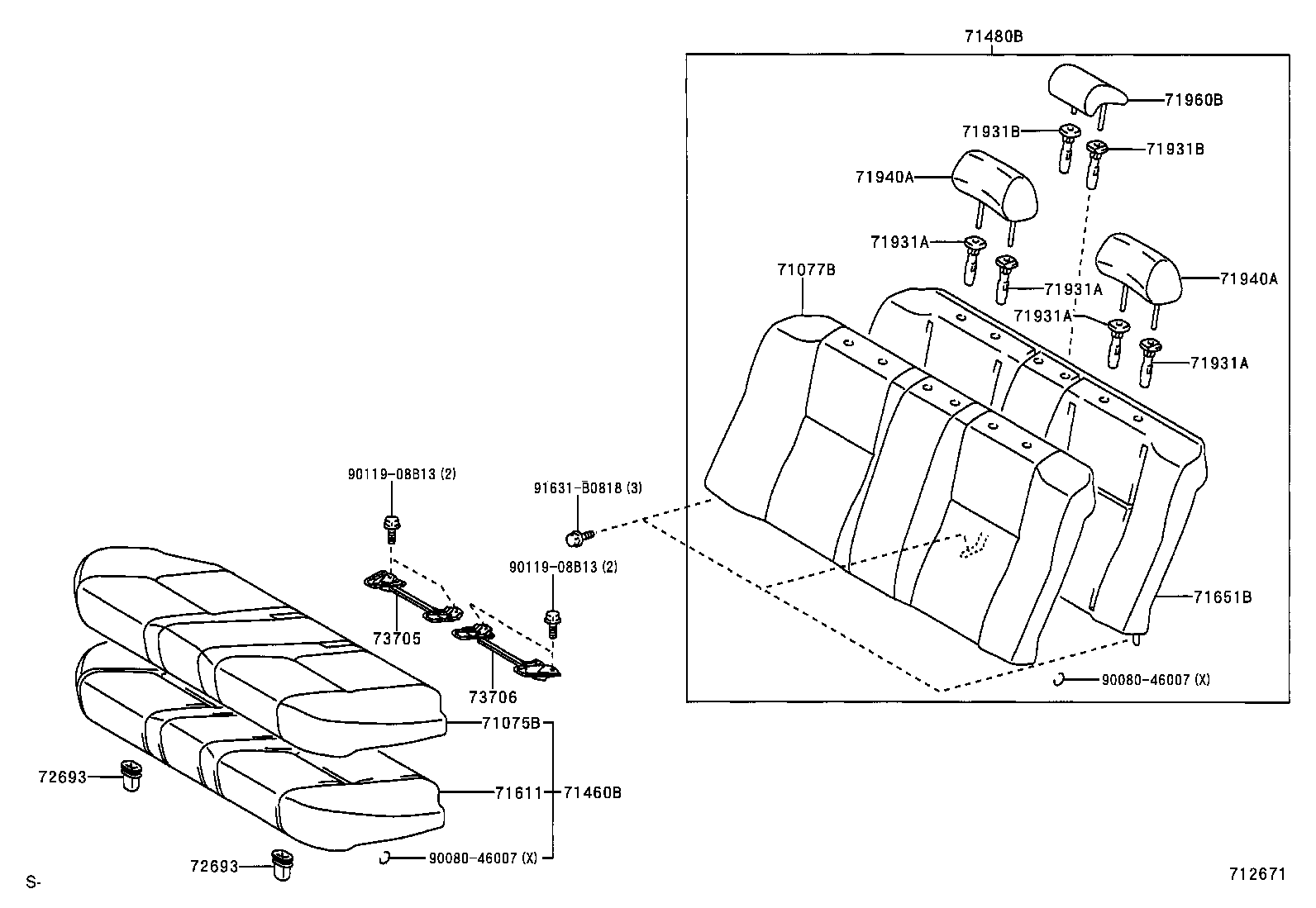

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71480B 71611 71651B 71931A 71931A 71931A 71931A 71931B 71931B 71940A 71940A 71960B 72693 72693 73705 73706 9008046007 9008046007 9011908B13 9011908B13 91631B0818
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-05360B1

ADT251,CDT250,ZZT25#..SED..ENTRY

DK.GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-05290B2

ADT251,CDT250,ZZT25#..SED..ENTRY

DK.GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-05370B1

CDT250,ZZT25#..SED..ENTRY

DK. GRAY,TRIM1#

 1
71460-05371B0

ADT251,CDT250,ZZT25#..SED..ENTRY

DK. GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-05440B2

ADT251,CDT250,ZZT25#..SED..ENTRY

DK. GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-05030

AZT250,CDT250,ZZT25#..SED

 1
71503-05031

ADT251,AZT25#,CDT250,ZZT25#..SED

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-05010

ADT251,CDT250,ZZT25#..SED..ENTRY

 1
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 1
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 1
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 1
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 1
71940A - HEADREST ASSY, REAR SEAT
71940-05100B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-05100B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-05070B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

ADT251,AZT25#,CDT250,ZZT25#..SED

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

ADT251,AZT25#,CDT250,ZZT25#..SED

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
90080-46007
90119-08B13
91631-B0818

(0301-0604)SED..ELEGT,TEC ; (0604- )SED

Click highlighted areas on diagram

diagram 71017 71018 7104 7104 7104 7104 7104 71075B 71077S 71078S 71303C 71304C 71305A 71460B 71480A 71480S 71490A 71490S 71540A 71550A 71611 71651S 71652S 71880A 71890A 71931A 71931A 71931A 71931A 71931B 71931B 71940A 71940A 71960B 72630C 72640A 72656 72656B 72679 72679 72693 72693 72830 72848A 72868 73705 73706 9008038034 9008038067 9008046007 9008046007 9008046007 9010508400 9010508400 9010508400 9010906208 9011908B13 9011908B13 9011908B13 9151180820 9151180820 91631B0818 91631B0818
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-05360B1

ADT251,CDT250,ZZT25#..SED..ENTRY

DK.GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-05370B1

CDT250,ZZT25#..SED..ENTRY

DK. GRAY,TRIM1#

 1
71460-05371B0

ADT251,CDT250,ZZT25#..SED..ENTRY

DK. GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-05030

AZT250,CDT250,ZZT25#..SED

 1
71503-05031

ADT251,AZT25#,CDT250,ZZT25#..SED

 1
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 1
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 1
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71956-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 1
71970-02020B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 1
71940A - HEADREST ASSY, REAR SEAT
71940-05100B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-05100B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-05070B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

ADT251,AZT25#,CDT250,ZZT25#..SED

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

ADT251,AZT25#,CDT250,ZZT25#..SED

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
90080-38034
90080-38067
90080-46007
90105-08400
90109-06208
90119-08B13
91511-80820
91631-B0818
Linked diagrams
7104
