ZZT251L-AWPNKW (2003)
Toyota Avensis
ILLUST NO. 2 OF 2(0301- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

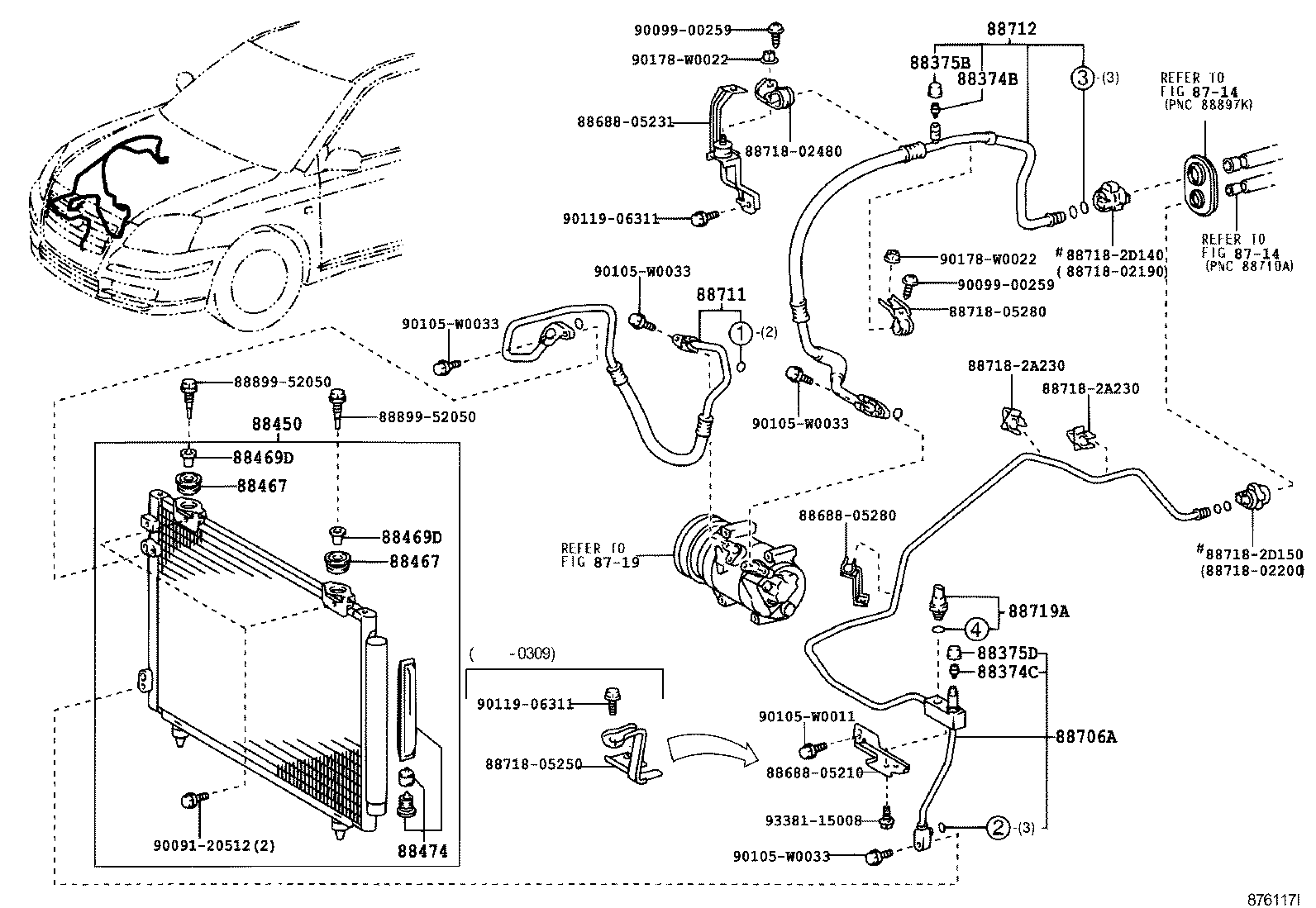

ILLUST NO. 1 OF 2(0301- )ZZT25#..LHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZT25#..ENTRY W/O(VSC) |
1 | ||
| 88374-30010 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88374-30010 |
ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88374-30010 |
ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88374-30010 |
ZZT25#..LHD..ENTRY W/O(VSC) |
1 | ||
| 88374-30010 |
ZZT25#..LHD |
1 | ||
| 88374-30010 |
ZZT25#..LHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88374-30010 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZT25#..ENTRY W/O(VSC) |
1 | ||
| 88375-30290 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88375-30290 |
ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88375-30290 |
ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
CDT250;ADT251..LHD;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| 88375-30280 |
ZZT25#..ENTRY;CDT250..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-05100 |
ZZT25#..LHD |
1 | ||
| 88450-05100 |
CDT250,ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
AZT25#,ZZT25# |
2 | ||
| 88467-12180 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
AZT25#,ZZT25# |
2 | ||
| 88467-12180 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88469-52010 |
AZT25#,ZZT25# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88469-52010 |
AZT25#,ZZT25# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88474-17010 |
AZT25#,ZZT25# |
1 | ||
| 88474-17010 |
ZZT25#..ENTRY W/O(VSC) |
1 | ||
| 88474-17010 |
ZZT25#..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88474-17010 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88716-05380 |
ZZT25#..LHD |
1 | ||
| 88716-05380 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88716-05380 |
ZZT25#..LHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88706-05110 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88716-05380 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88716-05380 |
ZZT25#..LHD..ENTRY W/O(VSC) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-05240 |
ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88703-05240 |
ZZT25# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-05280 |
ZZT25#..LHD |
1 | ||
| 88712-05280 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
CDT250,ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88719-40020 |
CDT250;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| Common parts | ||||
| 88688-05210 | ||||
| 88688-05231 | ||||
| 88688-05280 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-02480 | ||||
| 88718-05250 | ||||
| 88718-05280 | ||||
| 88718-2A230 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 90091-20512 | ||||
| 90099-00259 | ||||
| 90105-W0011 | ||||
| 90105-W0033 | ||||
| 90119-06311 | ||||
| 90178-W0022 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

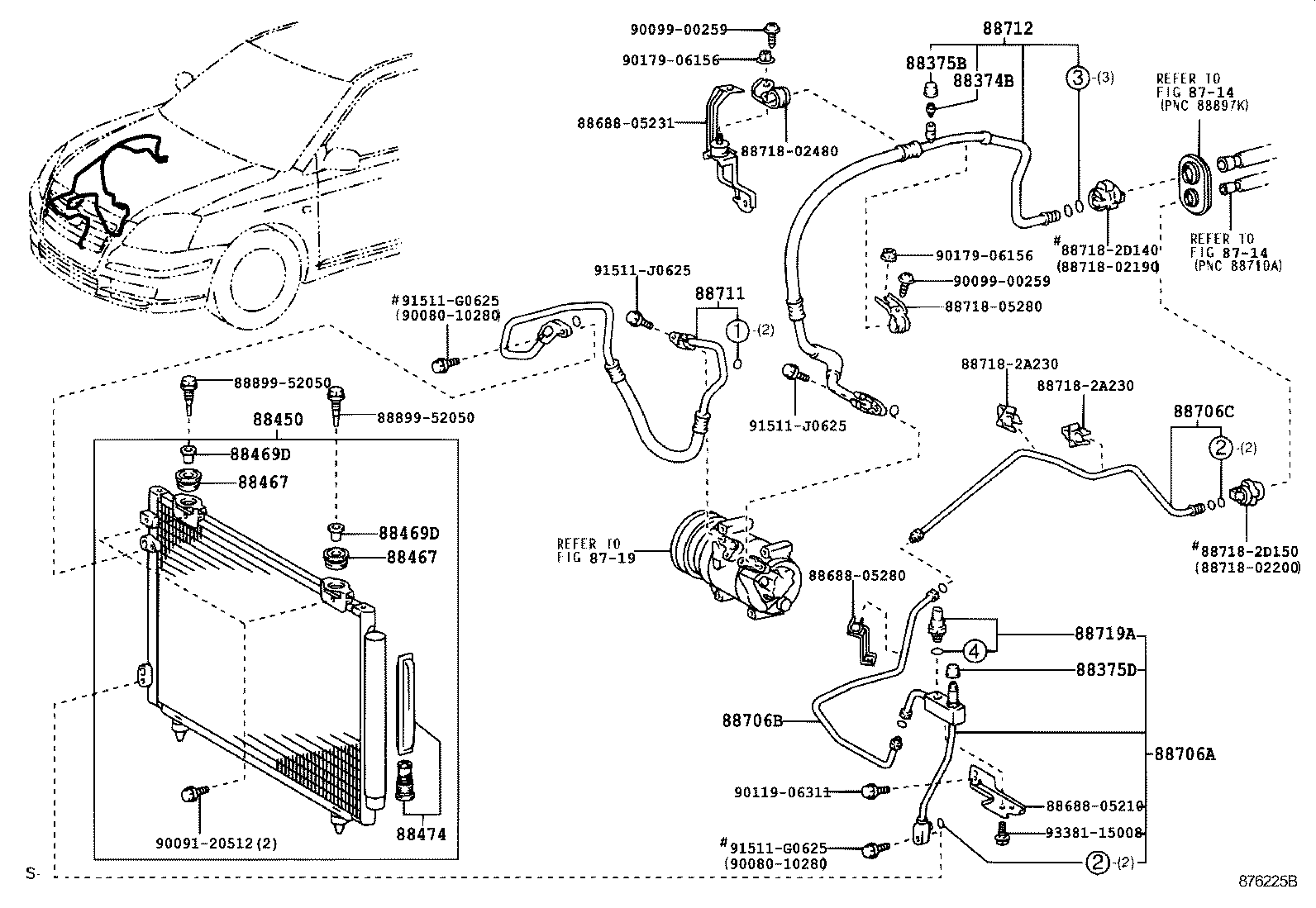

ILLUST NO. 1 OF 2(0301-0503)ZZT25#..LHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZT25#..ENTRY W/O(VSC) |
1 | ||
| 88374-30010 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88374-30010 |
ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88374-30010 |
ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZT25#..ENTRY W/O(VSC) |
1 | ||
| 88375-30290 |
AZT25#,ZZT25#;ADT251,CDT250..RHD |
1 | ||
| 88375-30290 |
ZZT25#..ENTRY;ADT251,CDT250..RHD..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88375-30290 |
ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
CDT250;ADT251..LHD;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| 88375-30280 |
ZZT25#..ENTRY;CDT250..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-05100 |
ZZT25#..LHD |
1 | ||
| 88450-05100 |
CDT250,ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
AZT25#,ZZT25# |
2 | ||
| 88467-12180 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
AZT25#,ZZT25# |
2 | ||
| 88467-12180 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88469-52010 |
AZT25#,ZZT25# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
2 | ||
| 88469-52010 |
AZT25#,ZZT25# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ZZT25#..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88474-17010 |
AZT25#,ZZT25# |
1 | ||
| 88474-17010 |
ZZT25#..ENTRY W/O(VSC) |
1 | ||
| 88474-17010 |
ZZT25#..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88474-17010 |
CDT250..ENTRY;ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88716-05380 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88716-05380 |
ZZT25#..LHD |
1 | ||
| 88716-05380 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-W/O |
1 | ||
| 88716-05380 |
ZZT25#..LHD..ENTRY W/O(VSC)&AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88706-05110 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88716-05380 |
ZZT25#..LHD..ENTRY W/O(VSC) |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88716-05450 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88706C - TUBE SUB-ASSY, LIQUID, C | ||||
| 88716-05460 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-05240 |
ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88703-05240 |
ZZT25# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-05280 |
ZZT25#..LHD |
1 | ||
| 88712-05280 |
ZZT25#..LHD..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
CDT250,ZZT25#..ENTRY AIR CONDITIONER-MANUAL,DOP |
1 | ||
| 88719-40020 |
CDT250;AZT250..WG..HTWC;AZT25#,ZZT25#..RHD;ZZT251..LHD..4FC..ENTRY |
1 | ||
| Common parts | ||||
| 88688-05210 | ||||
| 88688-05231 | ||||
| 88688-05280 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-02480 | ||||
| 88718-05280 | ||||
| 88718-2A230 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52050 | ||||
| 90080-10280 | ||||
| 90091-20512 | ||||
| 90099-00259 | ||||
| 90119-06311 | ||||
| 90179-06156 | ||||
| 91511-G0625 | ||||
| 91511-J0625 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
