ZZT251L-AWPNKW (2003)
Toyota Avensis
Production
Jan 2003
-
Nov 2004
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )LHD..D4,DCR,DCRL ; (0402- )ZZT25#..LHD

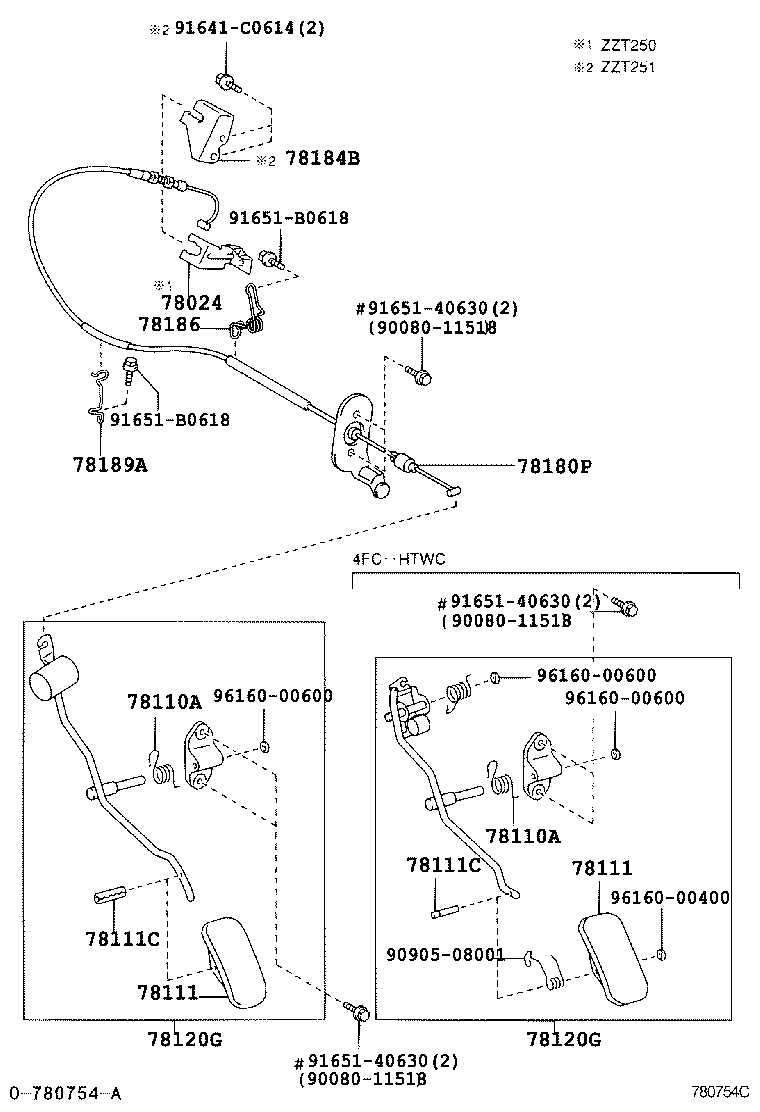

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
ZZT251..LHD..4FC |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
ZZT251..LHD..4FC |
1 | ||
| Common parts | ||||
| 90080-11518 | ||||
| 91651-40630 | ||||
| 96160-00600 | ||||
(0301-0402)ZZT25#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
ZZT25#..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
ZZT25#..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
ZZT251..LHD..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
ZZT251..LHD..4FC |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
ZZT251..LHD..4FC |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
ZZT251..LHD..4FC |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-13030 |
ZZT251..LHD..4FC |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-13030 |
ZZT251..LHD..4FC |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-05270 |
ZZT251..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12360 |
ZZT251 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-20190 |
ZZT25#..LHD |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-12100 |
ZZT25# |
1 | ||
| Common parts | ||||
| 90080-11518 | ||||
| 90905-08001 | ||||
| 91641-C0614 | ||||
| 91651-40630 | ||||
| 91651-B0618 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
