ZZT251L-AWPNKW (2003)

Toyota Avensis

Production Jan 2003 - Nov 2004
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )ZZT25#..LHD

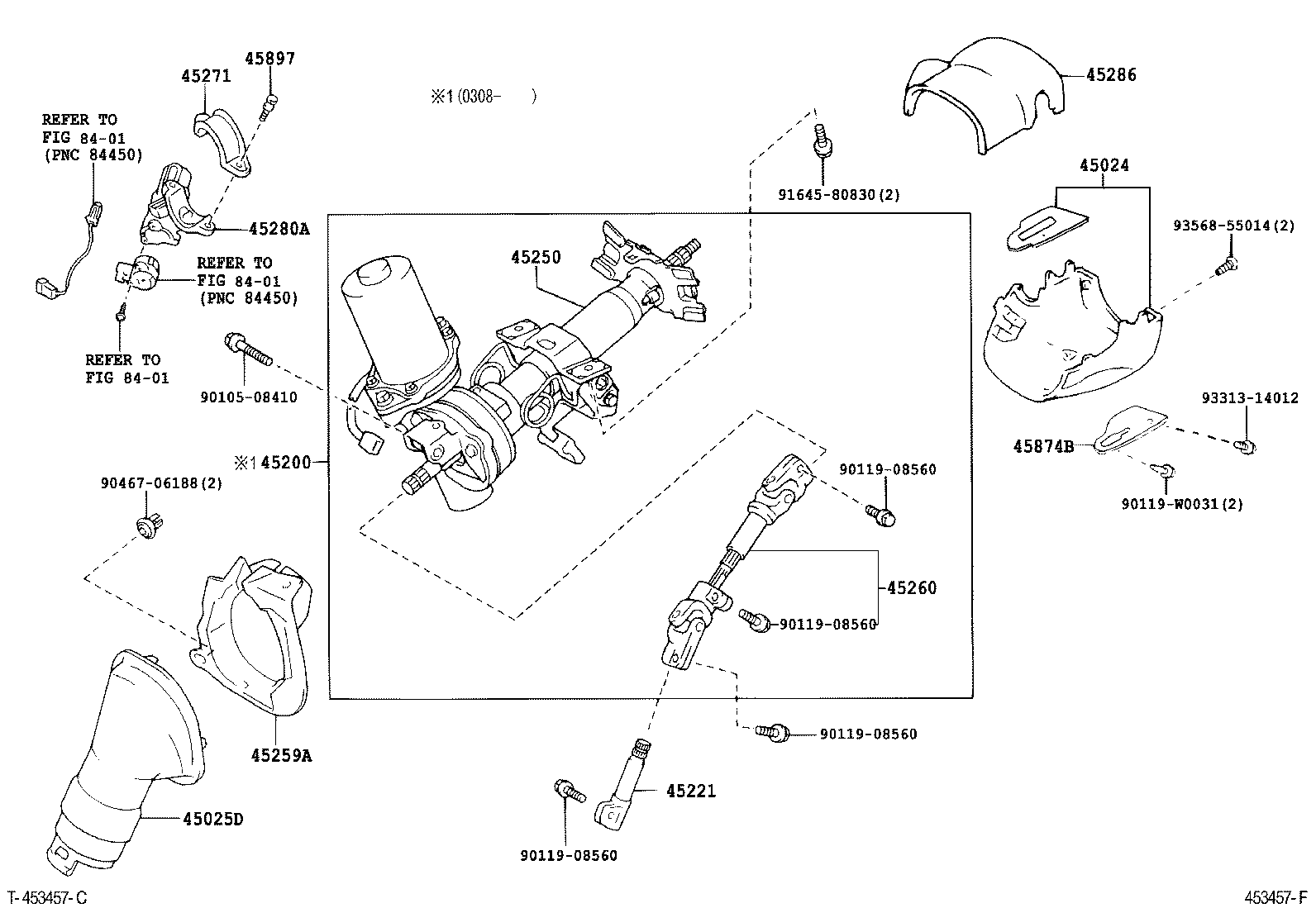

Click highlighted areas on diagram

diagram 45024 45025D 45200 45221 45250 45259A 45260 45271 45280A 45286 45874B 45897 8401 8401 8401 9010508410 9011908560 9011908560 9011908560 9011908560 90119W0031 9046706188 9164580830 9331314012 9356855014
Part # Description Qty Price
45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER
45024-05020B0

CDT250..WG..ENTRY;CDT250..LHD..WG..TEC;ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);AZT25#,ZZT250..ENTRY,TEC;ZZT251..LHD..SED..5F..ENTRY;CDT250..(LB,SED)..(ENTRY,TEC);ZZT251..LHD..(LB,WG)..(ENTRY,TEC)

DK.GRAY,TRIM1#

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-13060

ZZT25#..LHD

 1
45200 - POST ASSY, STEERING
45200-05350

ZZT251..LHD

 1
45200-05351

ZZT251..LHD

 1
45200-05330

ZZT251..LHD

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-05020

ZZT25#

 1
45250 - COLUMN ASSY, STEERING
45250-05480

ZZT251..LHD

 1
45250-05530

ZZT251..LHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02040

ADT251,AZT25#,CDT250,ZZT25#..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-05070

ZZT25#..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-05030

ADT251,AZT25#,CDT250,ZZT25#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-05080

AZT25#,ZZT251..ATM

 1
45286 - COVER, STEERING COLUMN
45286-05100B0

CDT250..WG..ENTRY;CDT250..LHD..WG..TEC;ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);AZT25#,ZZT250..ENTRY,TEC;ZZT251..LHD..SED..5F..ENTRY;CDT250..(LB,SED)..(ENTRY,TEC);ZZT251..LHD..(LB,WG)..(ENTRY,TEC)

DK.GRAY,TRIM1#

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-05030

ADT251,AZT25#,CDT250,ZZT25#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ADT251,AZT25#,CDT250,ZZT25#

 2
Common parts
90105-08410
90119-08560
90119-W0031
90467-06188
91645-80830
93313-14012
93568-55014
Linked diagrams
8401
