ZZT251L-AWMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )ZZT25#..LHD

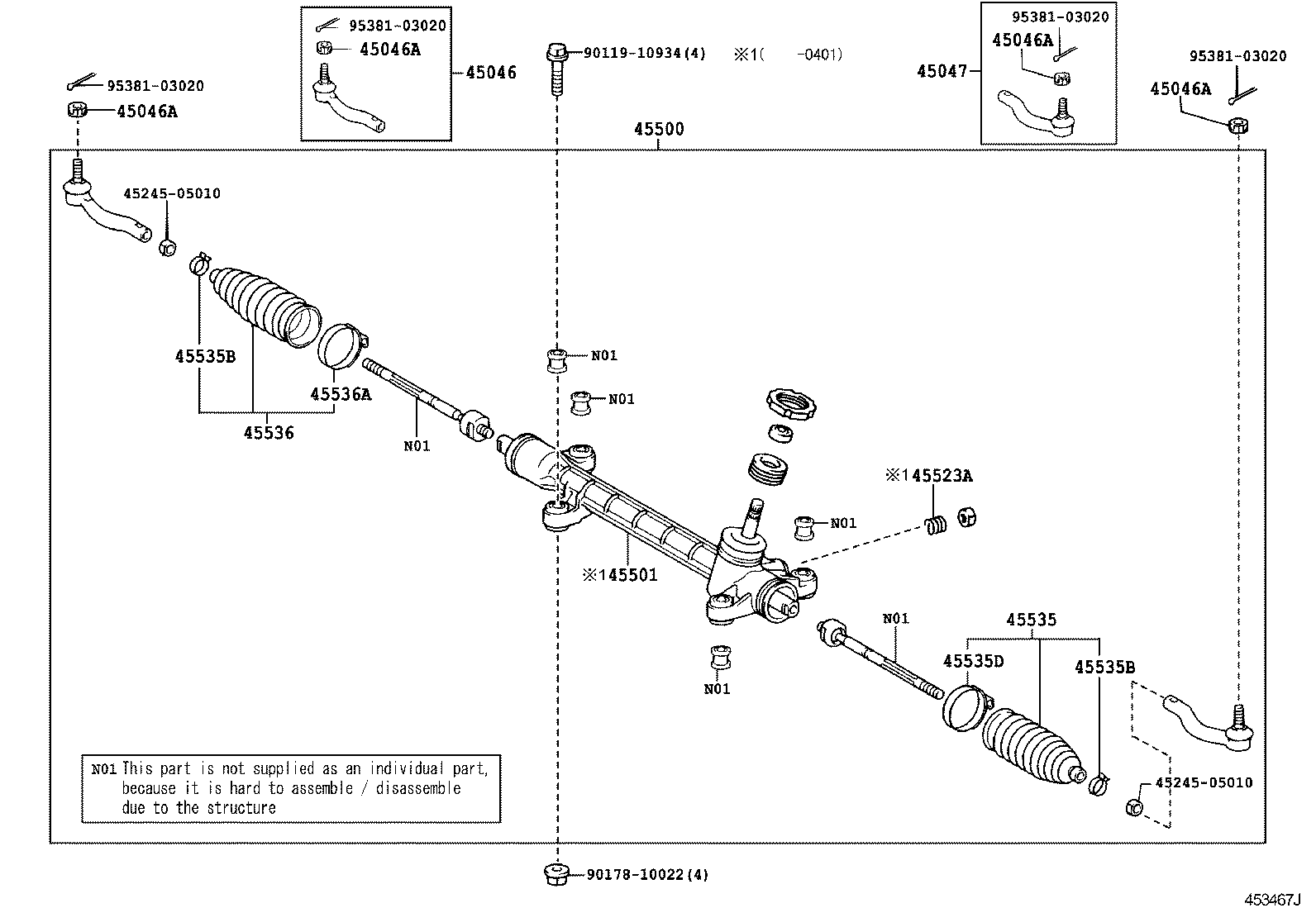

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45046A 45046A 45047 4524505010 4524505010 45500 45501 45523A 45535 45535B 45535B 45535D 45536 45536A 9011910934 9017810022 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09230

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT251,AZT25#,CDT250,ZZT25#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09230

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45500 - LINK ASSY, STEERING
45500-05030

ZZT25#..LHD

 1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-05021

ZZT25#..LHD

 1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-29016

ZZT25#

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09030

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZZT25#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZZT25#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008

ZZT25#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09030

ZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008

ZZT25#

 1
Common parts
45245-05010
90119-10934
90178-10022
95381-03020
