ZZT251L-AEPNKW (2003)
Toyota Avensis
ILLUST NO. 1 OF 2(0301- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73023-05010B0 |
ADT251,AZT25#,CDT250,ZZT25# LT.GRAY,TRIM1# |
1 | ||
| 73023-05010A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 73136D - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73024-05010B0 |
ADT251,AZT25#,CDT250,ZZT25# LT.GRAY,TRIM1# |
1 | ||
| 73024-05010A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-05030 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-05030 |
ADT251,AZT25#,CDT250,ZZT25# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-05050A1 |
AZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 73210-05051 |
AZT250..WG..HTWC;CDT250..TEC..DCRL;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY) |
1 | ||
| 73210-05050C0 |
AZT25#,CDT250,ZZT25# BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
ADT251,AZT25#,CDT250,ZZT25# BEIGE |
1 | ||
| 73219-33010 |
ADT251,AZT25#,CDT250,ZZT25# BLACK |
1 | ||
| 73219-33020 |
ADT251,AZT25#,CDT250,ZZT25# GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-05051 |
AZT250..WG..HTWC;CDT250..TEC..DCRL;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY) |
1 | ||
| 73220-05050C0 |
AZT25#,CDT250,ZZT25# BLACK,TRIM1# |
1 | ||
| 73220-05050A1 |
AZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-05051B0 |
ZZT251..LHD..(LB,WG);ZZT251..LHD..SED..ENTRY;CDT250,ZZT250..LHD..ENTRY;AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR) W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 73230-05050B0 |
AZT250..LHD..D4;AZT251,CDT250,ZZT25#..LHD DK.GRAY,TRIM1# |
1 | ||
| 73230-05050A0 |
AZT250..LHD..ELEGT..D4;ZZT251..LHD..SED..4FC..ENTRY;AZT251,CDT250,ZZT25#..LHD..ELEGT IVORY,TRIM0# |
1 | ||
| 73230-05051A0 |
ADT251,CDT250,ZZT25#..LHD..SED..ENTRY W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-05040B0 |
AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);AZT251,CDT250,ZZT25#..LHD DK.GRAY,TRIM1# |
1 | ||
| 73230-05040A0 |
ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 73230-05041B0 |
ZZT251..LHD..(LB,WG);ZZT251..LHD..SED..ENTRY;CDT250,ZZT250..LHD..ENTRY;AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR) W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 73230-05041A0 |
ADT251,CDT250,ZZT25#..LHD..SED..ENTRY W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10127 | ||||
| 90105-W0008 | ||||
| 90105-W0032 | ||||
| 90105-W0074 | ||||
| 90109-11035 | ||||
| 90179-11010 | ||||

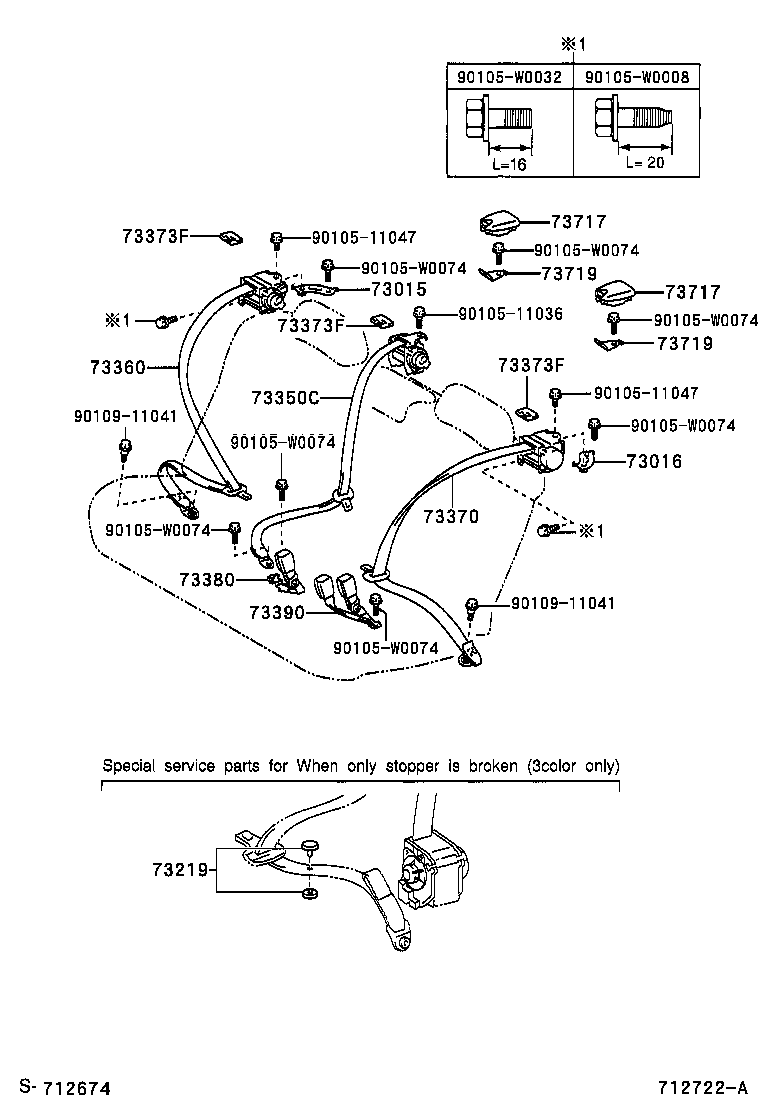

ILLUST NO. 2 OF 2(0301-0604)SED..ELEGT,TEC ; (0604- )SED
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
ADT251,AZT25#,CDT250,ZZT25# BEIGE |
1 | ||
| 73219-33010 |
ADT251,AZT25#,CDT250,ZZT25# BLACK |
1 | ||
| 73219-33020 |
ADT251,AZT25#,CDT250,ZZT25# GRAY |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-05030C0 |
CDT250,ZZT25#..SED..ENTRY BLACK,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-05090A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73360-05090C0 |
AZT25#,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-05090A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73360-05090C0 |
AZT25#,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-05010A0 |
ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
3 | ||
| 73373-05010B0 |
ADT251,CDT250,ZZT25#..SED..ENTRY DK.GRAY,TRIM1# |
3 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-05010A0 |
ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
3 | ||
| 73373-05010B0 |
ADT251,CDT250,ZZT25#..SED..ENTRY DK.GRAY,TRIM1# |
3 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-05010A0 |
AZT250,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 73380-05011A0 |
AZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 73380-05011B0 |
AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 73380-05010B0 |
AZT250,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73480-05041A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73480-05041C0 |
AZT25#,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73480-05040A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT250,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73480-05040C0 |
AZT250,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-33030A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
2 | ||
| 73717-33030B1 |
ADT251,AZT25#,CDT250,ZZT25#..SED DK.GRAY,TRIM1# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-33030A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
2 | ||
| 73717-33030B1 |
ADT251,AZT25#,CDT250,ZZT25#..SED DK.GRAY,TRIM1# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-20010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-20010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11047 | ||||
| 90105-W0008 | ||||
| 90105-W0032 | ||||
| 90105-W0074 | ||||
| 90109-11041 | ||||
| 93560-54014 | ||||
ILLUST NO. 2 OF 2(0301-0604)SED..ENTRY
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
ADT251,AZT25#,CDT250,ZZT25# BEIGE |
1 | ||
| 73219-33010 |
ADT251,AZT25#,CDT250,ZZT25# BLACK |
1 | ||
| 73219-33020 |
ADT251,AZT25#,CDT250,ZZT25# GRAY |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-05030C0 |
CDT250,ZZT25#..SED..ENTRY BLACK,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-05090A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73360-05090C0 |
AZT25#,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-05090A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73360-05090C0 |
AZT25#,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-05010A0 |
ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
3 | ||
| 73373-05010B0 |
ADT251,CDT250,ZZT25#..SED..ENTRY DK.GRAY,TRIM1# |
3 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-05010A0 |
ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
3 | ||
| 73373-05010B0 |
ADT251,CDT250,ZZT25#..SED..ENTRY DK.GRAY,TRIM1# |
3 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-05010A0 |
ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
3 | ||
| 73373-05010B0 |
ADT251,CDT250,ZZT25#..SED..ENTRY DK.GRAY,TRIM1# |
3 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-05010A0 |
AZT250,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 73380-05011A0 |
AZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 73380-05011B0 |
AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 73380-05010B0 |
AZT250,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73480-05041A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73480-05041C0 |
AZT25#,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73480-05040A1 |
ZZT251..LHD..SED..4FC..ENTRY;AZT250,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
1 | ||
| 73480-05040C0 |
AZT250,CDT250,ZZT25#..SED BLACK,TRIM1# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-33030A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
2 | ||
| 73717-33030B1 |
ADT251,AZT25#,CDT250,ZZT25#..SED DK.GRAY,TRIM1# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-33030A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT IVORY,TRIM0# |
2 | ||
| 73717-33030B1 |
ADT251,AZT25#,CDT250,ZZT25#..SED DK.GRAY,TRIM1# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-20010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-20010 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11047 | ||||
| 90105-W0008 | ||||
| 90105-W0032 | ||||
| 90105-W0074 | ||||
| 90109-11041 | ||||
