ZZT250L-AWMNKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

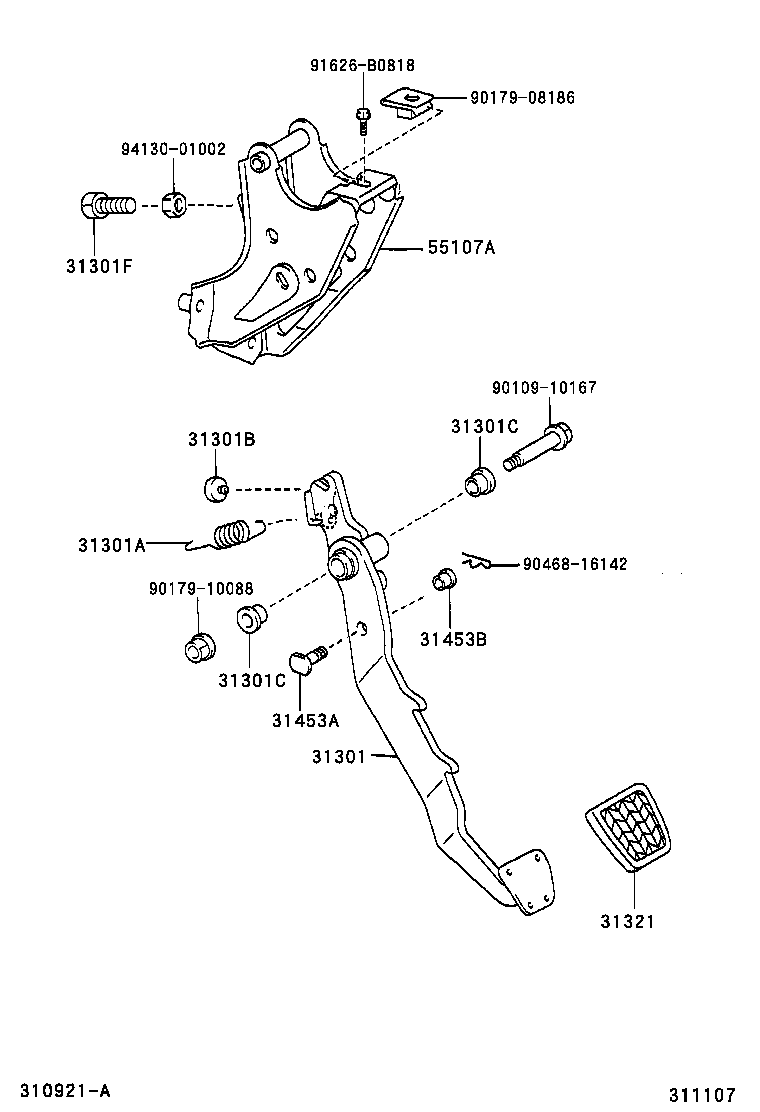

ILLUST NO. 1 OF 2(0301- )ZZT25#..LHD..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31453A 31453B 55107A 9010910167 9017908186 9017910088 9046816142 91626B0818 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05070

ZZT25#..LHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

ZZT25#..LHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ADT251,AZT250,CDT250,ZZT25#..LHD..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ADT251,AZT250,CDT250,ZZT25#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ADT251,AZT250,CDT250,ZZT25#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

ADT251,AZT250,CDT250,ZZT25#..MTM

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02070

ZZT25#..LHD..5F

 1
Common parts
90109-10167
90179-08186
90179-10088
90468-16142
91626-B0818
94130-01002

ILLUST NO. 2 OF 2(0301- )ZZT25#..5F

Click highlighted areas on diagram

diagram 3103 3103 3105 3105 31481 31481 31481A 31482 31484 31484A 31484C 4708 4708 7701 7701 9008011524 9008011529 9011910669 9046108652 9046108652 9046109005 9046110781 9046808035 9046808040 9165140616 9165141016 9165160614
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05120

ZZT25#..LHD..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05120

ZZT25#..LHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02D20

ZZT25#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02160

ZZT25#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12430

ZZT25#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-05010

ZZT25#..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460

ADT251,ZZT25#..MTM

 1
Common parts
90080-11524
90080-11529
90119-10669
90461-08652
90461-09005
90461-10781
90468-08035
90468-08040
91651-40616
91651-41016
91651-60614
