ZZT221R-AWMNKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )1ZZFE,3ZZFE..MTM

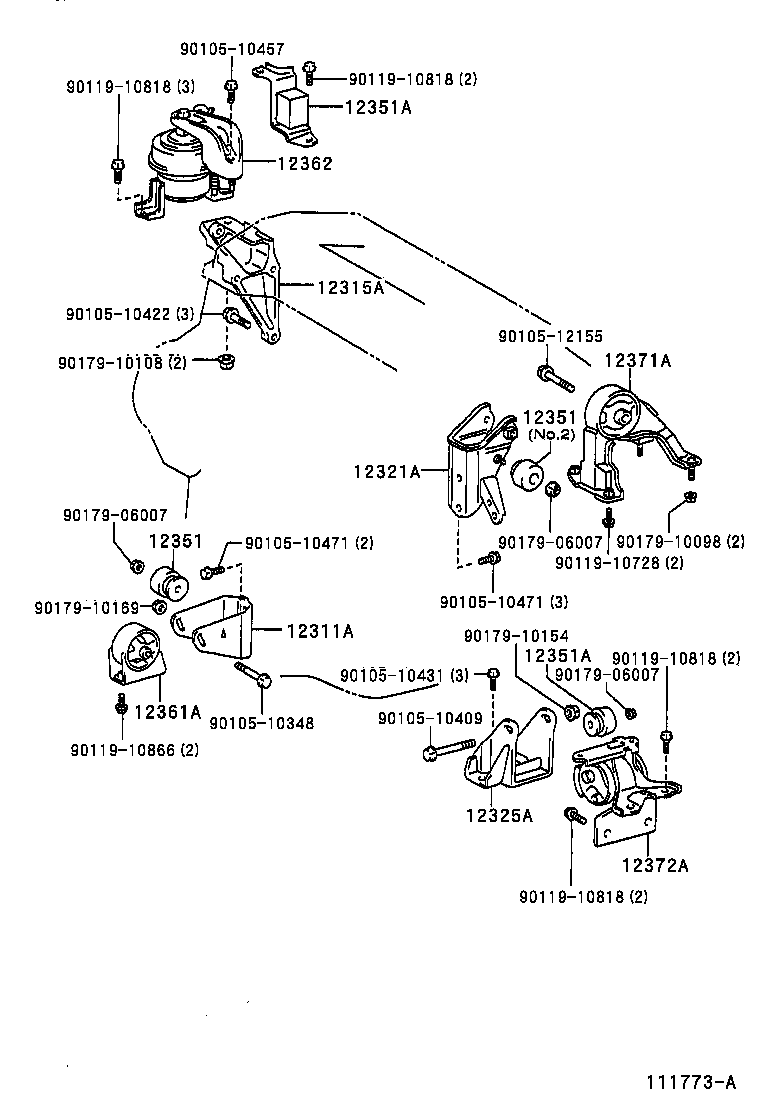

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12351 12351 12351A 12351A 12361A 12362 12371A 12372A 9010510348 9010510409 9010510422 9010510431 9010510457 9010510471 9010510471 9010512155 9011910728 9011910818 9011910818 9011910818 9011910818 9011910866 9017906007 9017906007 9017906007 9017910098 9017910108 9017910154 9017910169
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0D030

1ZZFE,3ZZFE..ZZT22#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0D030

1ZZFE,3ZZFE..ZZT22#

(L)

 1
12315-22020

1ZZFE,3ZZFE..ZZT22#

(J)

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0D050

1ZZFE,3ZZFE..ZZT22#..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-22050

1ZZFE,3ZZFE..ZZT22#..MTM

 1
12351 - DAMPER, ENGINE MOUNTING
12351-02020

1ZZFE,3ZZFE..ZZT22#

NO.1

 1
12351-74010

1ZZFE,3ZZFE..ZZT22#..MTM

NO.2

 1
12351 - DAMPER, ENGINE MOUNTING
12351-02020

1ZZFE,3ZZFE..ZZT22#

NO.1

 1
12351-74010

1ZZFE,3ZZFE..ZZT22#..MTM

NO.2

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-22050

1ZZFE,3ZZFE..ZZT22#

NO.1

 1
12351-74100

1ZZFE,3ZZFE..ZZT22#..MTM

NO.2

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-22050

1ZZFE,3ZZFE..ZZT22#

NO.1

 1
12351-74100

1ZZFE,3ZZFE..ZZT22#..MTM

NO.2

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-02090

1ZZFE,3ZZFE..ZZT22#..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-22080

1ZZFE,3ZZFE..ZZT22#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0D030

1ZZFE,3ZZFE..ZZT22#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0D040

1ZZFE,3ZZFE..ZZT22#

 1
Common parts
90105-10348
90105-10409
90105-10422
90105-10431
90105-10457
90105-10471
90105-12155
90119-10728
90119-10818
90119-10866
90179-06007
90179-10098
90179-10108
90179-10154
90179-10169
