ZZT221R-ALPNKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

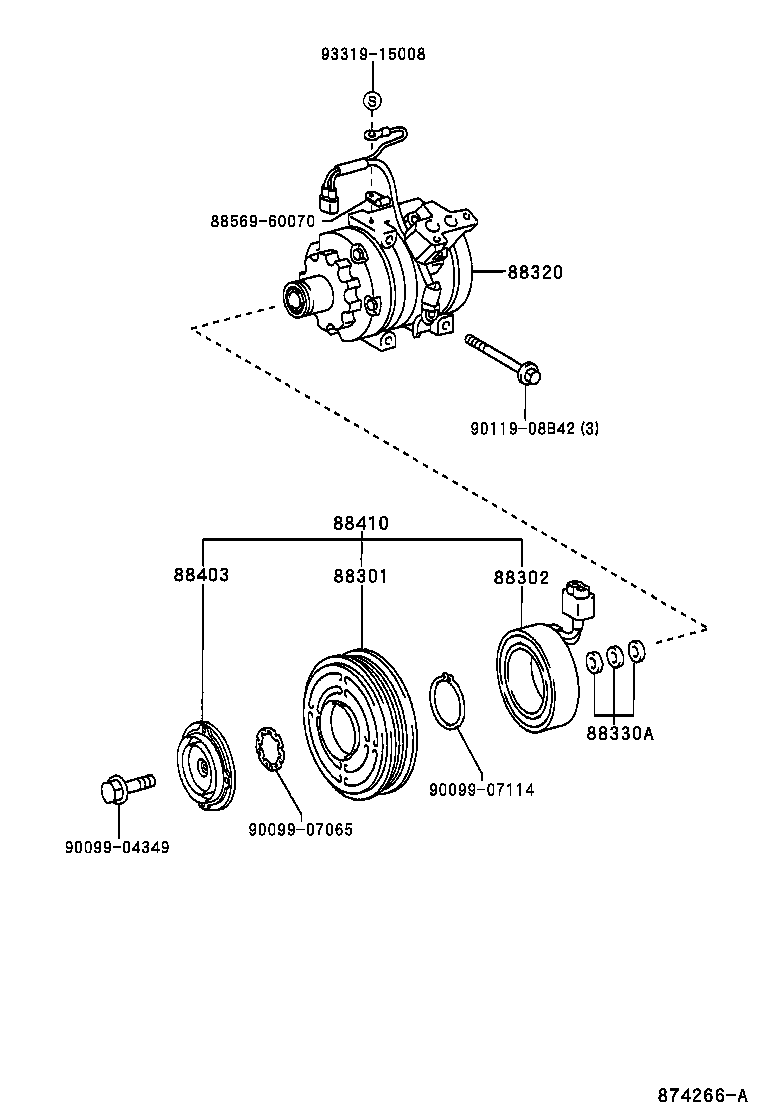

ILLUST NO. 1 OF 2(0007- )ZZT22#

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 8856960070 9009904349 9009907065 9009907114 9011908B42 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-32120

ZZT22#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-44010

AZT220,ZZT22#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-63010

ZZT22#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-32010

AZT220,ZZT22#

 1
88410 - CLUTCH ASSY, MAGNET
88410-32200

ZZT22#

 1
Common parts
88569-60070
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
