ZZT221R-ALPNKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )1ZZFE,3ZZFE

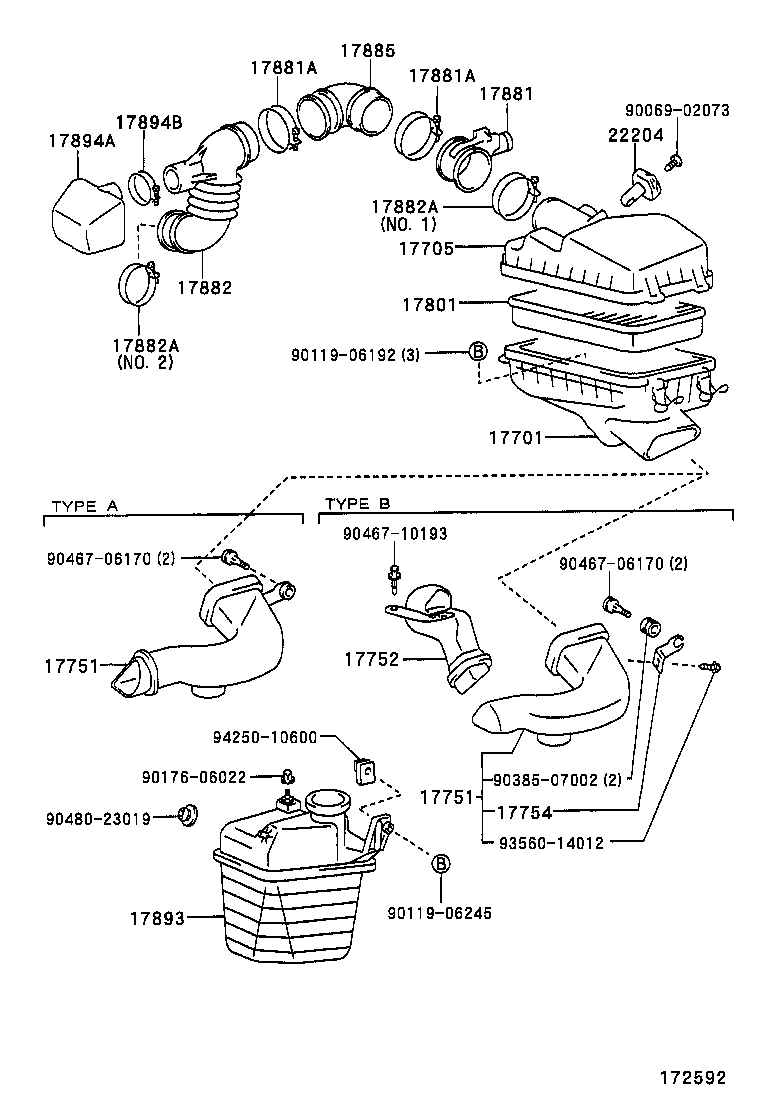

Click highlighted areas on diagram

diagram 17701 17705 17751 17751 17752 17754 17801 17881 17881A 17881A 17882 17882A 17882A 17885 17893 17894A 17894B 22204 9006902073 9011906192 9011906245 9017606022 9038507002 9046706170 9046706170 9046710193 9048023019 9356014012 9425010600
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0D020

1ZZFE,3ZZFE..ZZT22#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0D030

1ZZFE,3ZZFE..ZZT22#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-02080

1ZZFE,3ZZFE..ZZT22#

TYPE A:REFER TO ILLUSTRATION

 1
17751 - INLET, AIR CLEANER, NO.1
17751-02080

1ZZFE,3ZZFE..ZZT22#

TYPE A:REFER TO ILLUSTRATION

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-02050

1ZZFE,3ZZFE..ZZT22#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0D030

1ZZFE,3ZZFE..ZZT22#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1ZZFE,3ZZFE..ZZT22#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1ZZFE,3ZZFE..ZZT22#

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-0D020

1ZZFE..ZZT221

(L)

 1
17882-22060

1ZZFE..ZZT221

(J)

 1
17882-22060

1ZZFE..ZZT221

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

1ZZFE..ZZT221

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

1ZZFE..ZZT221

 2
17885 - PIPE, AIR CLEANER
17885-0D010

1ZZFE,3ZZFE..ZZT22#

 1
17893 - RESONATOR, INTAKE AIR
17893-02040

1ZZFE,3ZZFE..ZZT22#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-0D010

1ZZFE,3ZZFE..ZZT22#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10530

1ZZFE,3ZZFE..ZZT22#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0D020

1ZZFE,3ZZFE..ZZT22#

 1
Common parts
90069-02073
90119-06192
90119-06245
90176-06022
90385-07002
90467-06170
90467-10193
90480-23019
93560-14012
94250-10600
