ZZT221R-AEPNKW (2000)
Toyota Avensis

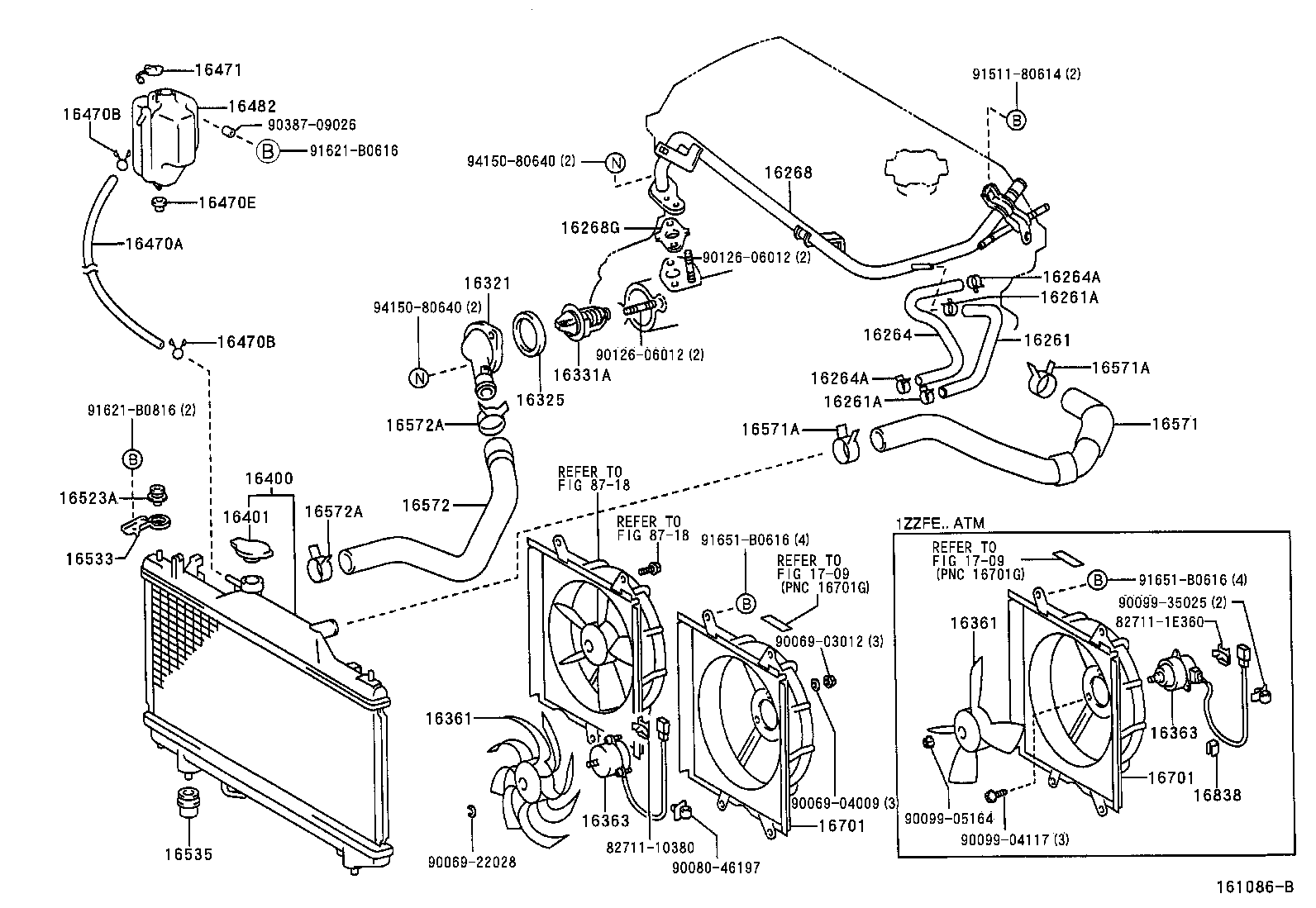

ILLUST NO. 1 OF 2(0007- )1ZZFE,3ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22080 |
1ZZFE..ZZT221 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-22090 |
1ZZFE..ZZT221 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22020 |
1ZZFE,3ZZFE..ZZT22# (J) |
1 | ||
| 16268-0D020 |
1ZZFE,3ZZFE..ZZT22# (L) |
1 | ||
| 16268-22100 |
1ZZFE,3ZZFE..ZZT22# (J) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0D020 |
1ZZFE,3ZZFE..ZZT22# (L) |
1 | ||
| 16258-22010 |
1ZZFE,3ZZFE..ZZT22# (J) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0D030 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1ZZFE,3ZZFE..ZZT22# (J) |
1 | ||
| 16325-0D010 |
1ZZFE,3ZZFE..ZZT22# (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03125 |
1ZZFE,3ZZFE..ZZT22# *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-02080 |
1ZZFE,3ZZFE..ZZT22# BOSCH |
1 | ||
| 16361 - FAN | ||||
| 16361-02080 |
1ZZFE,3ZZFE..ZZT22# BOSCH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-02070 |
1ZZFE,3ZZFE..ZZT22# BOSCH |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-02070 |
1ZZFE,3ZZFE..ZZT22# BOSCH |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D100 |
1ZZFE..ZZT221..ATM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-02070 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90080-48049 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-02070 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16482-02070 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-02020 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-02060 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-02050 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-22110 |
1ZZFE..ZZT221 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-22100 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1ZZFE,3ZZFE..ZZT22# NO.2 |
1 | ||
| 90466-37002 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1ZZFE,3ZZFE..ZZT22# NO.2 |
1 | ||
| 90466-37002 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-02060 |
1ZZFE,3ZZFE..ZZT22# BOSCH |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-02060 |
1ZZFE,3ZZFE..ZZT22# BOSCH |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 82711-1E360 | ||||
| 90069-03012 | ||||
| 90069-04009 | ||||
| 90069-22028 | ||||
| 90080-46197 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90126-06012 | ||||
| 90387-09026 | ||||
| 91511-80614 | ||||
| 91621-B0616 | ||||
| 91621-B0816 | ||||
| 91651-B0616 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8718 | ||||

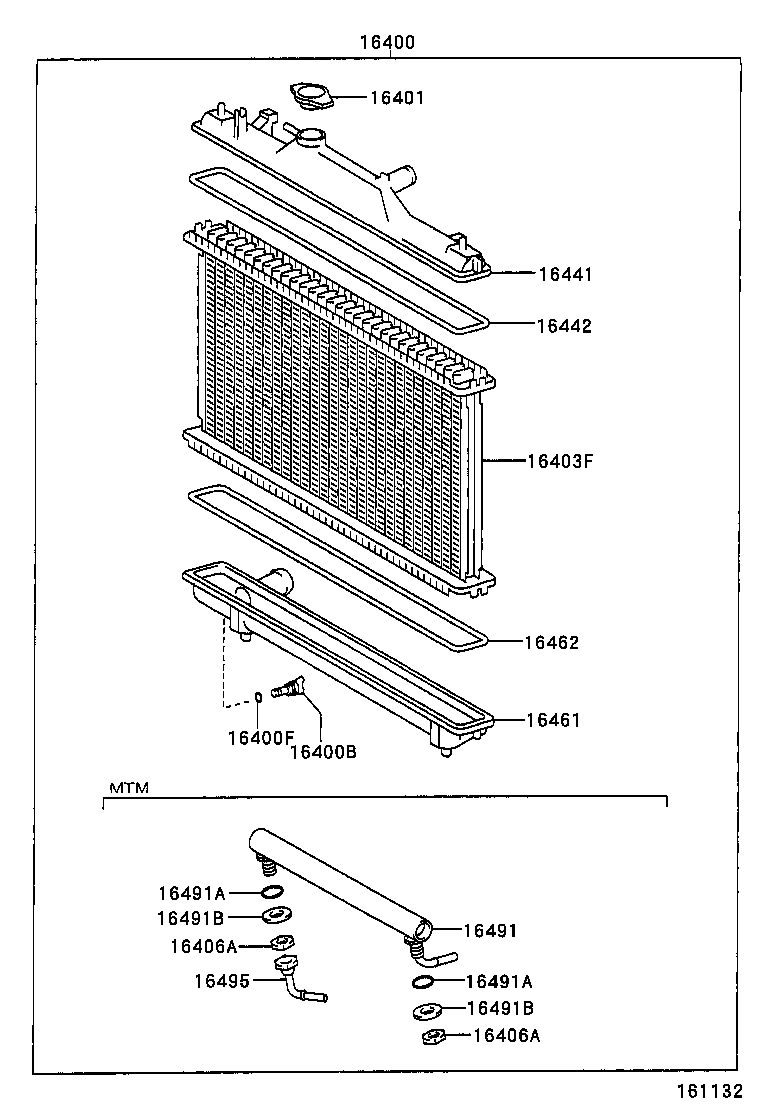

ILLUST NO. 2 OF 2(0007- )1ZZFE,3ZZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-0D100 |
1ZZFE..ZZT221..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-02280 |
1ZZFE..ZZT221..ATM |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1ZZFE..ZZT221..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1ZZFE..ZZT221..ATM |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-0D100 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-02030 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-0D100 |
1ZZFE..ZZT221..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-02040 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74790 |
1ZZFE..ZZT221..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
1ZZFE..ZZT221..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
1ZZFE..ZZT221..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1ZZFE..ZZT221..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1ZZFE..ZZT221..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-62060 |
1ZZFE..ZZT221..ATM |
1 | ||
