ZZT221L-ALPNKW (2000)
Toyota Avensis
Production
Jul 2000
-
Jan 2003
Engine
1ZZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0007- )1ZZFE,3ZZFE

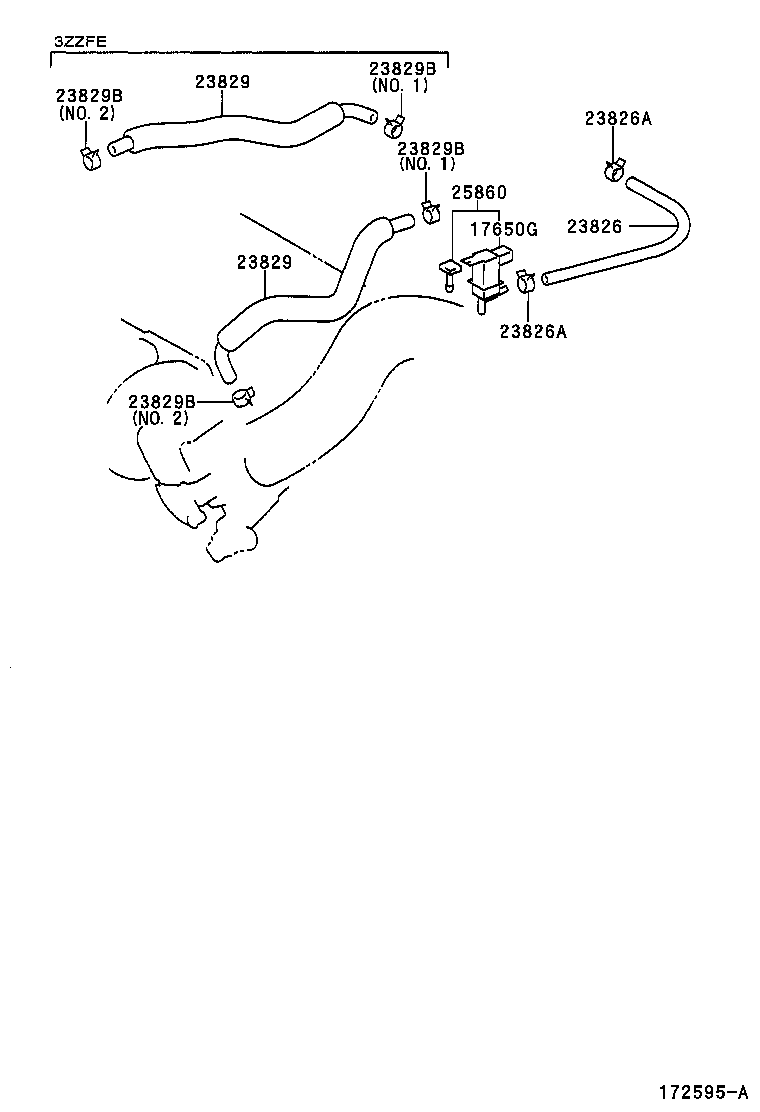

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12248 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 95328-07032 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41300 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41300 |
1ZZFE,3ZZFE..ZZT22# |
2 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-22050 |
1ZZFE..ZZT221 |
1 | ||
| 23829 - HOSE, FUEL VAPOR FEED, NO.3 | ||||
| 23829-22050 |
1ZZFE..ZZT221 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
1ZZFE,3ZZFE..ZZT22# NO.2 |
1 | ||
| 90467-13069 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 96132-51300 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
1ZZFE,3ZZFE..ZZT22# NO.2 |
1 | ||
| 90467-13069 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 96132-51300 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
1ZZFE,3ZZFE..ZZT22# NO.2 |
1 | ||
| 90467-13069 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 96132-51300 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-14043 |
1ZZFE,3ZZFE..ZZT22# NO.2 |
1 | ||
| 90467-13069 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 96132-51300 |
1ZZFE,3ZZFE..ZZT22# NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-22080 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
| 25860-0D030 |
1ZZFE,3ZZFE..ZZT22# |
1 | ||
